DSDP160
Pulse Counter Board · 57160001-KG · S100 I/O
Lifecycle note: Retain the QGLF 108 application records, connector mapping and installed board revision. Do not transfer DSDP170 frequency or channel ratings to DSDP160.
ItemNO:
57160001-KGProduct Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 153 5940 8275Pulse Counter Board · S100 I/O

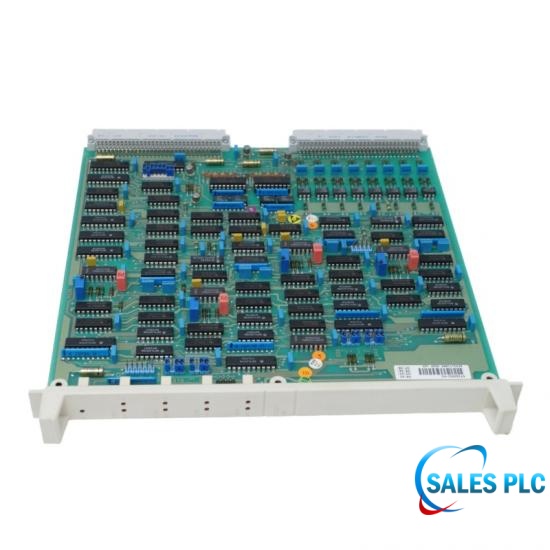

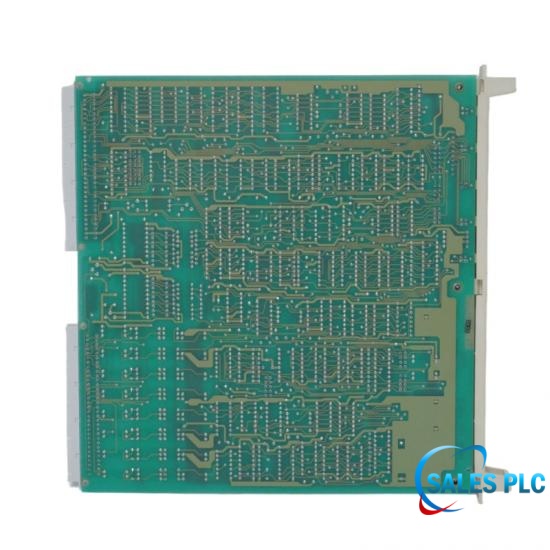

ABB DSDP160 is the ABB DSDP160 pulse counter board, order 57160001-KG. ABB identifies this product as an S100 I/O board for QGLF 108, providing a precise application identity for replacement sourcing.
The manufacturer catalog lists a 324 mm depth, 234 mm width, 22.5 mm height and 0.39 kg net weight. These dimensions and the connector arrangement should be checked against the installed assembly. The available ABB product record does not specify a pulse-frequency limit or a channel count.
Use the installed QGLF 108 documentation and controller project to establish the required pulse signals and operating configuration. Retain revision and terminal information when removing a board, and commission the replacement against a known application condition. Quote the complete 57160001-KG identity rather than relying on the DSDP family name.
| Manufacturer | ABB |
|---|---|
| Model | DSDP160 |
| Order number | 57160001-KG |
| Product function | Pulse counter board |
| I/O family | S100 I/O |
| Specified application | QGLF 108 |
| ABB product classification | I-O_Module |
| Net depth / length | 324 mm |
| Net width | 234 mm |
| Net height | 22.5 mm |
| Net weight | 0.39 kg |
| Customs tariff number | 85389091 |
| WEEE category | 5: small equipment; no external dimension above 50 cm |
| Number of batteries | 0 |
Retain the QGLF 108 application records, connector mapping and installed board revision. Do not transfer DSDP170 frequency or channel ratings to DSDP160.
ABB explicitly describes 57160001-KG as an S100 I/O board for QGLF 108. This application identifier should be included in the replacement review alongside the board name and order number.
No. The available ABB DSDP160 catalog record does not publish a channel count or maximum pulse frequency. Obtain the installed QGLF 108 engineering documentation for those requirements instead of importing ratings from another board.
Compare the board revision, connector positions and rack location with the removed unit, then check the associated QGLF 108 project records. A family-name match alone does not establish an approved substitute.
ABB lists 324 mm depth, 234 mm width and 22.5 mm height. Use these net product dimensions together with actual connector clearances when reviewing the assembly.
No. ABB identifies it as a pulse counter board in the S100 I/O family for QGLF 108. Robot controller, USB and FlexPendant descriptions do not describe this order number.
ABB lists zero batteries for the product. This identifies the shipped board content; it does not establish the storage conditions or backup arrangements of the surrounding control system.
Provide an ABB-supported replacement reference or an approved engineering assessment covering QGLF 108 use, connectors and configuration. A similar appearance or adjacent DSDP model number is insufficient evidence.

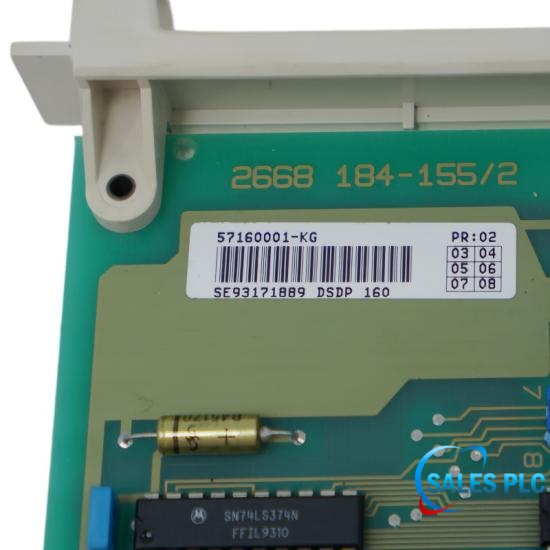

Keep the removed and installed serial or revision details, the project version, the relevant QGLF 108 wiring record and the result of a controlled pulse-counter function test. This links the spare to the application actually restored.
Send the model, complete part number, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Official PDF extract: DSDP160 / 57160001-KG — Sales PLC Cover & ABB Documentation. File size is below 1 MB; verify the exact installed hardware and configuration before use.
