ANALOG OUTPUT MODULE | CAO10-P 3BDH000723R1 | ABB

Technical Specifications

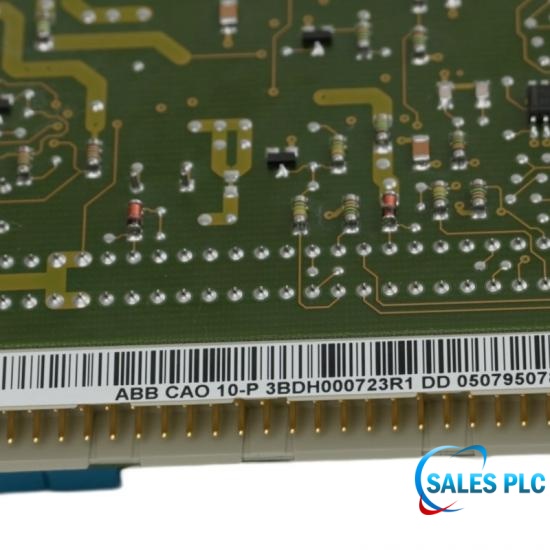

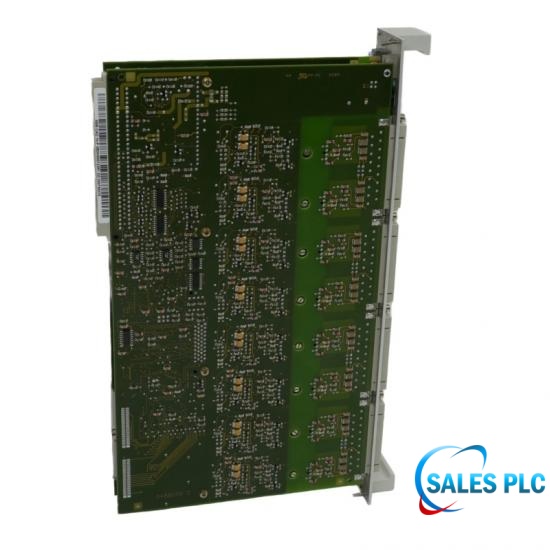

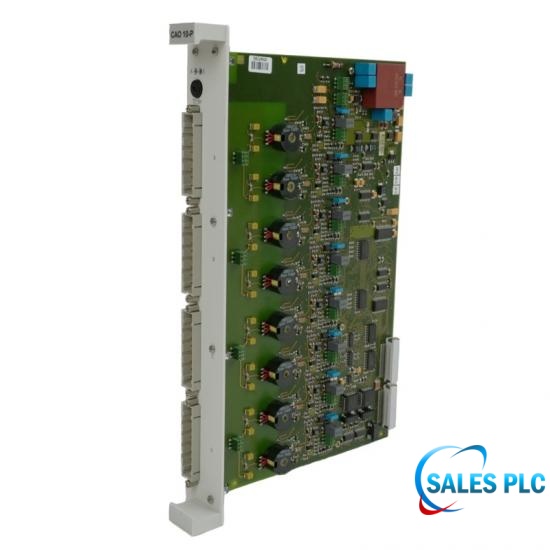

ABB CAO10-P 3BDH000723R1 is an analog output module for the ABB Symphony Plus control system. It provides 16 independently configurable analog output channels, supporting 0–20 mA and 4–20 mA signals.Each output channel is galvanically isolated, and the module is protected against overload and short circuit. CAO10-P also supports HART communication for digital communication with field devices.The module operates with a 20–33 VDC supply and supports load impedance up to 700 Ohm. It is suitable for decentralized control systems, process control, turbine control, monitoring and protection applications.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Inspect the Backplane: Ensure the destination slot in the subrack/mounting unit is entirely dry, clean, and free of bent pins.
Verify Hardware Address: Check and set the onboard module address via the rotary switches or jumpers before inserting it to avoid bus collisions.
Check Grounding: Validate that the subrack chassis is tied to the central instrumentation ground.

Field Engineering Considerations

Galvanic Isolation: The module utilizes electromagnetic isolation to block ground loops and industrial noise. Shielded twisted-pair cabling must be grounded at the cabinet entry point to preserve signal integrity.
Loop Power Delivery: The unit requires a regulated 24V DC field power source. Engineers must calculate total current draw for 10 active channels to prevent voltage drops on the internal bus.
Actuator Impedance Matching: Ensure field device load resistance (valves, positioners) falls strictly within the maximum allowed loop resistance range to prevent channel saturation.

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What is the primary function of the CAO10-P module?
A: The module converts internal digital commands from the controller into precise analog electrical signals. These signals regulate field infrastructure such as variable speed drives, control valves, and positioners.

A: Yes, within a live ABB Symphony Plus architecture, this hardware supports hot-swapping under proper safety configurations. This allows you to replace modules without interrupting the continuous operation of the wider plant or rack.

A: Configuration is handled digitally via the system’s primary engineering platform. Calibration offsets and range selection are defined via software parameters rather than manual physical jumpers.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
