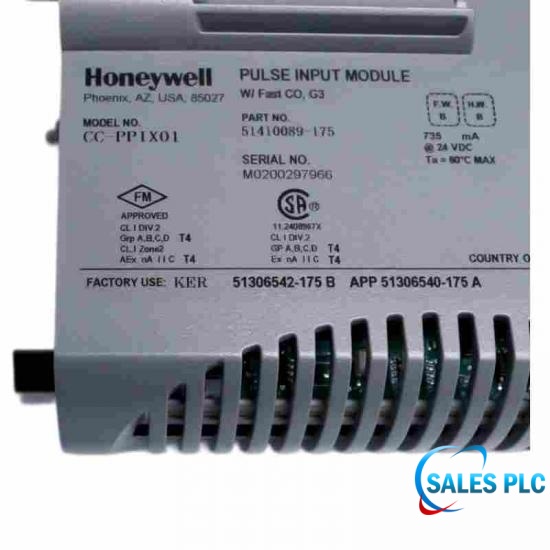

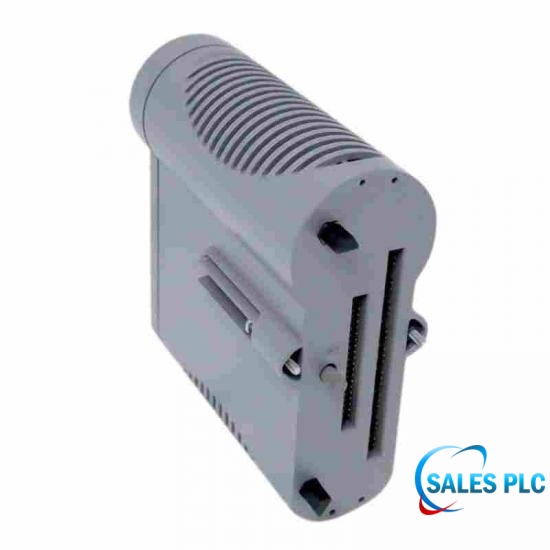

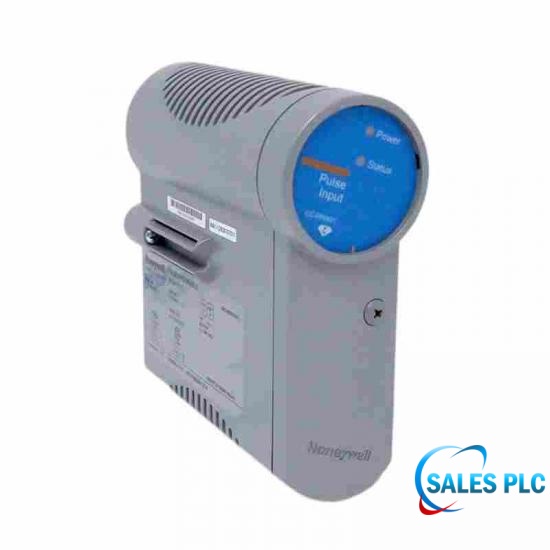

CC-PPIX01 51410089-175
Series C Pulse Input Module · Series C pulse input module for rate, totalization and fast-cutoff applications, with configurable single or dual pulse inputs and two outputs.
Lifecycle note: Use the unit nameplate and current Honeywell documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Series C Pulse Input Module · Honeywell Experion PKS Series C I/O
Honeywell CC-PPIX01 51410089-175 is a Series C Pulse Input Module for Experion C300 control applications. It calculates rate and accumulated total from pulse signals and supports metering, custody-transfer and other pulse-measurement duties.
The module accepts eight single inputs or four dual inputs, including mixed arrangements, and provides two outputs. Single-input operation supports frequencies to 100 kHz, while dual-input operation supports frequencies to 10 kHz.
For commissioning, verify the selected edge, excitation source, trip thresholds, pulse rejection, channel mode and fast-cutoff wiring. Redundant installations use the documented CC-TPIX11 IOTA and must match the project configuration.
| Manufacturer | Honeywell |
|---|---|
| Model | CC-PPIX01 |
| Part number | 51410089-175 |
| Product type | Pulse Input Module |
| Controller platform | Experion C300 |
| Input capacity | 8 single inputs or 4 dual inputs; mixed combinations supported |
| Output capacity | 2 outputs |
| Single-input frequency range | 0 to 100 kHz |
| Dual-input frequency range | 0 to 10 kHz |
| Frequency accuracy | ±0.001% of reading from 0.5 Hz to 100 kHz |
| Input voltage range | 0 to 35 VDC |
| Input isolation | High-impedance differential inputs, optically isolated to 1000 VDC |
| Input impedance | Greater than 70 kΩ |
| Edge selection | Configurable rising or falling edge |
| Excitation | Internal 24 VDC or external +5 to +30 VDC |
| Minimum pulse width | 3 µs with rejection off; 20 µs with rejection on |
| Fast cutoff | Channels 7 and 8 only; 1 ms maximum latency |
| Redundant IOTA | CC-TPIX11, 12 inch |
Honeywell CC-PPIX01 51410089-175 converts incoming pulse trains into calculated frequency or rate and accumulated total values for an Experion C300 control application.
Honeywell CC-PPIX01 51410089-175 supports eight single pulse inputs or four dual pulse inputs, and a mixed single-and-dual arrangement may be configured within the module limits.
Honeywell CC-PPIX01 51410089-175 supports 0 to 100 kHz in single-input mode and 0 to 10 kHz in dual-input mode, with documented frequency accuracy of ±0.001% of reading from 0.5 Hz to 100 kHz.
Honeywell CC-PPIX01 51410089-175 uses high-impedance differential inputs optically isolated to 1000 VDC, with either internal 24 VDC excitation or an external +5 to +30 VDC source.
Honeywell CC-PPIX01 51410089-175 provides fast-cutoff functionality on channels 7 and 8 only, with a documented maximum latency of 1 ms when the associated output and wiring are correctly configured.
A redundant Honeywell CC-PPIX01 51410089-175 installation uses the documented CC-TPIX11 12-inch IOTA and must be engineered with matching controller configuration, field wiring and module redundancy settings.
Provide the complete Honeywell CC-PPIX01 51410089-175 nameplate, module revision, IOTA type, channel mode, input voltage and frequency, redundancy requirement, quantity and destination.
Send the complete model, revision, quantity, destination and nameplate photo so the exact hardware identity can be checked.
