8440-1800
EASYGEN-320-50B/X Genset Controller · Generator Set Control and Monitoring Unit for Woodward easYgen-300 Series
Lifecycle note: Use the unit nameplate and current Woodward documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275EASYGEN-320-50B/X Genset Controller · Woodward easYgen-300 Series
Woodward 8440-1800 is the EASYGEN-320-50B/X controller in the easYgen-300 family. It is designed for automatic starting and stopping of a diesel generator set, generator metering, engine monitoring, alarm handling and generator protection in single-unit isolated or standby applications.
The 320/X version operates the generator circuit breaker (GCB) and manages the start/stop sequence, including pre-glow, fuel and crank functions. It is not the easYgen-350/X transfer-switch model: automatic mains-failure and mains circuit-breaker control belong to the 350/X variant and must not be assumed for part number 8440-1800.
Generator voltage is measured as true RMS and can be configured for 1-phase 2-wire, 1-phase 3-wire, 3-phase 3-wire or 3-phase 4-wire systems. The documented measuring class is 277/480 VAC rated and 346/600 VAC maximum, with generator frequency measurement from 15 to 85 Hz and Class 1 accuracy.

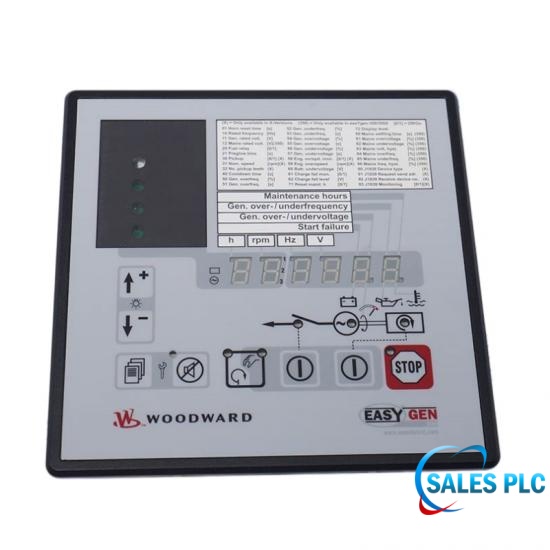

Model 8440-1800 includes an MPU speed input, D+ charge-alternator input/output, fixed and configurable discrete inputs, fixed and programmable relay outputs, and isolated CAN communication for supported J1939 engine ECUs. The six-digit LED displays measured values, counters, alarms and ECU messages; configuration is available from the password-protected front panel or a PC, and a 15-entry event logger supports troubleshooting.
The controller uses a 12/24 VDC supply with a 6.5–32.0 VDC operating range and maximum 10 W intrinsic consumption. It is a flush-mounted unit measuring 158 × 158 × 40 mm, requiring a 138 × 138 mm panel cutout, and weighs approximately 450 g.

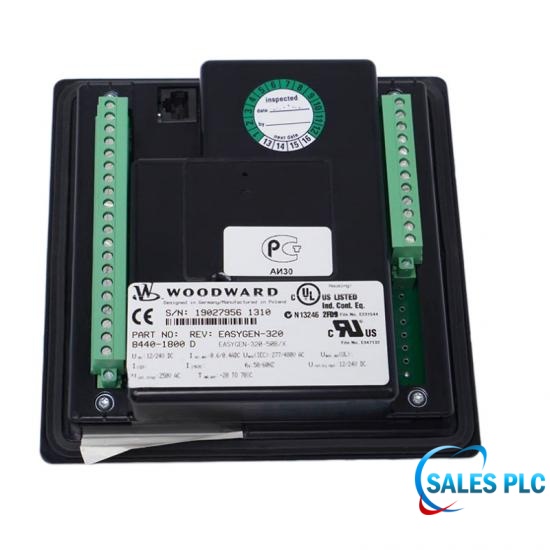

Before replacement, verify the complete 8440-1800 / EASYGEN-320-50B/X nameplate, hardware revision, generator wiring configuration, relay assignments, MPU or J1939 engine interface, connector layout and saved parameter set. Similar easYgen-300 labels do not by themselves establish interchangeability.
| Manufacturer | Woodward |
|---|---|
| Part number | 8440-1800 |
| Product designation | EASYGEN-320-50B/X |
| Series / application | easYgen-300; automatic diesel genset start/stop, metering and protection for single-unit isolated or standby operation |
| Breaker control | Generator circuit breaker (GCB) operation; mains breaker / AMF transfer functions are associated with the 350/X variant |
| Power supply | 12/24 VDC nominal; 6.5–32.0 VDC operating range |
| Intrinsic consumption | Maximum 10 W |
| Generator voltage configurations | 1-phase 2-wire, 1-phase 3-wire, 3-phase 3-wire or 3-phase 4-wire; true RMS sensing |
| Voltage measurement | 277/480 VAC rated; 346/600 VAC maximum; 300 VAC rated phase-to-ground; 4.0 kV rated surge voltage |
| Frequency / accuracy | Generator: 15–85 Hz; mains measuring range documented from 40–85 Hz; Class 1 accuracy |
| Voltage input characteristics | 2.0 MΩ input resistance; linear measuring range 1.3 × rated voltage; less than 0.15 W per measuring path |
| Speed input | Capacitively isolated MPU input; minimum approximately 17 kΩ input impedance; 875 mV RMS input voltage |
| D+ input/output | Charge-alternator input/output; maximum exciter current 0.11 A at 12 VDC or 24 VDC |
| Discrete inputs | Two fixed alarm inputs, one fixed remote-start input and up to two configurable inputs; isolated 12/24 VDC, approximately 6.7 kΩ |
| Relay outputs | Three fixed relay outputs plus one configurable relay on the 320/X; isolated contacts rated 2 A AC at 250 VAC or 2 A DC at 24 VDC for general-purpose load |
| Communication | Isolated CAN bus for supported J1939 engine ECUs; visualization of J1939 values and DM1/DM2 SPN-FMI messages |
| Display / records | Six-digit seven-segment LED; operating-hours, service-hours and start counters; 15-entry event logger |
| Configuration | Password-protected front-panel configuration or PC configuration through the rear service socket using Woodward Toolkit and the applicable DPC cable |
| Ambient conditions | Operating −20 to 70 °C; storage −20 to 85 °C; 95% relative humidity, non-condensing |
| Housing / mounting | Flush mount; 158 × 158 × 40 mm; panel cutout 138 (+1.0) × 138 (+1.0) mm; approximately 450 g |
| Connections | 2.5 mm² screw / plug terminals; 0.5 Nm tightening torque |
| Protection / approvals | Front protection documented as IP54 pending in publication 37217D; CE marked and UL/cUL listed |
| Mechanical tests | Sinusoidal vibration 4G, 5–100 Hz; endurance vibration 4G at 30 Hz for 1.5 h; random vibration 1.04 Grms, 10–500 Hz for 2 h; shock 40G peak for 11 ms |
Use the installed-unit nameplate and current Woodward documentation as the final references before approving a replacement.
Woodward 8440-1800 is the EASYGEN-320-50B/X genset controller in the easYgen-300 family. The full part number and 320/X suffix identify the version and should be checked on the installed nameplate.
It is intended for automatic starting and stopping, metering and protection of a single generator set in isolated or standby operation. The controller operates the generator circuit breaker and monitors the engine and generator.
No. Woodward publication 37217D distinguishes the 320/X from the 350/X: the 320/X operates the generator circuit breaker, while AMF, mains circuit-breaker control and open-transition transfer switching are functions of the 350/X variant.
The true-RMS generator input can be configured for 1-phase 2-wire, 1-phase 3-wire, 3-phase 3-wire or 3-phase 4-wire systems. The documented range is 277/480 VAC rated and 346/600 VAC maximum.
It accepts a nominal 12/24 VDC supply over a 6.5–32.0 VDC operating range. Woodward specifies maximum intrinsic consumption of 10 W.
The model provides two fixed alarm inputs, one fixed remote-start input, up to two configurable discrete inputs, three fixed relay outputs and one configurable relay. It also includes an MPU speed input and a D+ charge-alternator input/output.
The X-version includes an isolated CAN interface for supported J1939 engine ECUs. It can display J1939 data and DM1/DM2 SPN-FMI diagnostic messages; ECU compatibility and the configured addressing must be verified for the installed engine.
Parameters can be configured from the password-protected front panel or by PC through the rear service socket using the applicable Woodward Toolkit and DPC cable. The controller records operating hours, service hours, starts and a 15-entry event history.
Confirm the complete 8440-1800 / EASYGEN-320-50B/X identification, hardware revision, panel cutout, terminal layout, generator wiring, GCB and relay assignments, MPU or J1939 interface, supported ECU and saved parameter set. Do not treat 320/X and 350/X as direct substitutes.
Woodward Product Specification 37217D is linked in the Technical Data section. It identifies P/N 8440-1800, lists the electrical and mechanical specifications, and includes the easYgen-300 wiring diagrams and feature comparison.
Send the model, complete identification, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
