AAI135-H00 S1 Yokogawa 8-Channel Isolated HART Analog Input Module
AAI135-H00 S1
AAI135-H00 S1 is an eight-channel isolated 4 to 20 mA analog input module with HART digital communication for supported Yokogawa CENTUM field I/O configurations. Yokogawa specifies a 10 ms data update period, ±16 µA accuracy and approximately 0.30 kg module weight.
Scope note: AAI135-H00 S1 is an eight-channel current input module, not an FCS, terminal block or complete I/O assembly. Confirm separately selected terminal hardware and current Yokogawa documentation.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 181501176858-Channel Isolated HART Analog Input Module

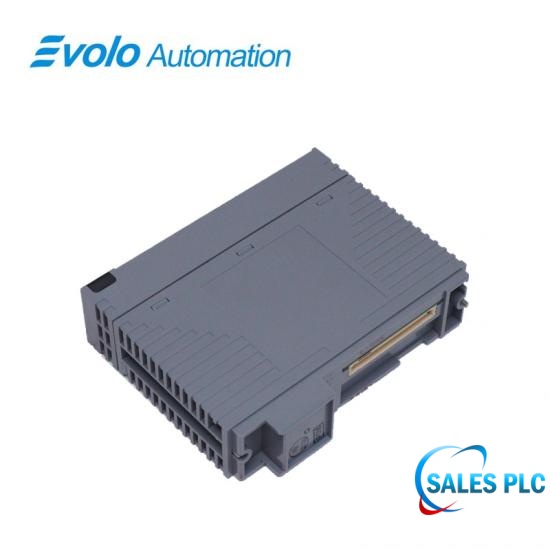

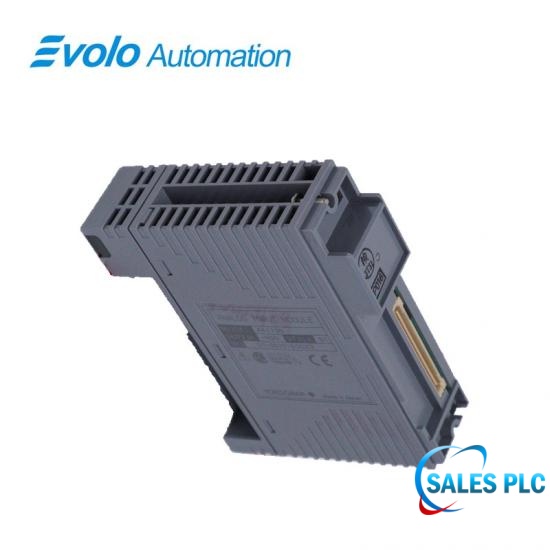

The Yokogawa AAI135-H00 S1 is an analog current input module for the CENTUM field I/O family. It accepts eight 4 to 20 mA input channels and provides isolation between the field and system as well as between individual channels, helping protect signal integrity in process-control installations.
The -H suffix identifies digital communication using the HART protocol. Yokogawa specifies a 10 ms data update period, ±16 µA accuracy and support for dual-redundant module configuration when the surrounding node hardware and engineering configuration are suitable.

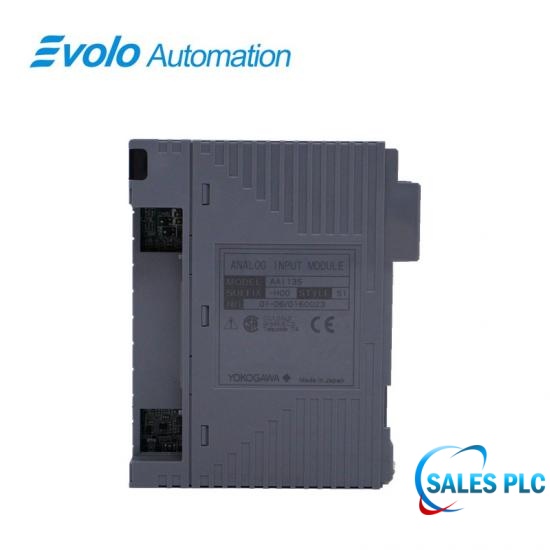

Ordering note: the requested catalog marking is reproduced exactly as AAI135-H00 S1. Confirm the complete nameplate, installed FCS, terminal hardware, connector or cable arrangement, style revision and hazardous-area requirements before replacement or installation.
| Manufacturer | Yokogawa Electric Corporation |
|---|---|
| Full part number | AAI135-H00 S1 |
| Product type | Analog Input Module (current input) |
| System family | Yokogawa CENTUM field I/O / CENTUM VP family; confirm installed-system compatibility |
| Input channels | 8-channel input, isolated channels |
| Input signal | 4 to 20 mA |
| Digital communication | HART protocol (-H suffix) |
| Allowable input current | 25 mA |
| Withstanding voltage | 500 V AC for 1 minute, input-to-system and between input channels |
| Input resistance, power ON | 290 Ω at 20 mA to 450 Ω at 4 mA |
| Input resistance, power OFF | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Data update period | 10 ms |
| Transmitter power supply | 15.0 V or higher at 20 mA; 29.3 V or less at 0 mA |
| Temperature drift | ±16 µA per 10 °C |
| Maximum current consumption | 360 mA at 5 V DC; 450 mA at 24 V DC |
| Weight | Approximately 0.30 kg |
| External connection | Pressure clamp terminal, MIL connector cable, or dedicated KS1 cable |
| Module dimensions | Approximately 32.8 × 130 × 107.5 mm; verify the official drawing for installation clearance |
| Official document | Yokogawa GS 33J60F60-01EN |
Terminal blocks, adapters and cable assemblies are selected separately. Yokogawa notes that a Zener barrier must not be connected to this module; use an isolation barrier for intrinsically safe applications and verify the current official documentation.
AAI135-H00 S1 is an eight-channel isolated 4 to 20 mA analog input module carrying the -H HART communication suffix and the requested S1 style marking.
Yes. Yokogawa identifies AAI135-H as the HART-capable current input variant. Confirm the installed engineering software and FCS configuration before commissioning AAI135-H00 S1.
Yes. Yokogawa specifies that AAI135-H00 S1 provides isolation between the field and system and between individual input channels.
AAI135-H00 S1 can be configured in a dual-redundant arrangement. Both AAI135-H00 S1 units, terminal hardware, node layout and engineering configuration must be matched correctly.
Confirm the complete AAI135-H00 S1 nameplate, FCS and node type, terminal block or adapter, KS cable, redundancy requirement, hazardous-area scheme and current Yokogawa documentation.
Send the exact AAI135-H00 S1 nameplate, quantity, installed FCS and node type, terminal hardware, destination and clear module photos. Availability, condition and compatibility will be confirmed before quotation.
