IMSED01
16-Channel Sequence of Events Digital Input Module · Sixteen-channel Harmony sequence-of-events digital input module for timestamped event acquisition.
Lifecycle note: Use the unit nameplate and current official documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 1535940827516-Channel Sequence of Events Digital Input Module · ABB Harmony / Bailey INFI 90

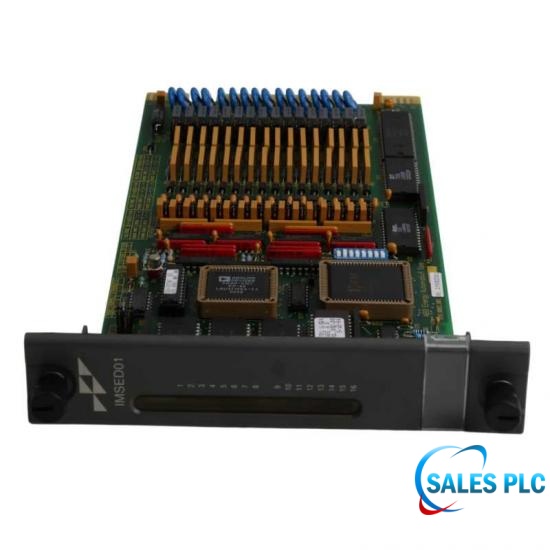

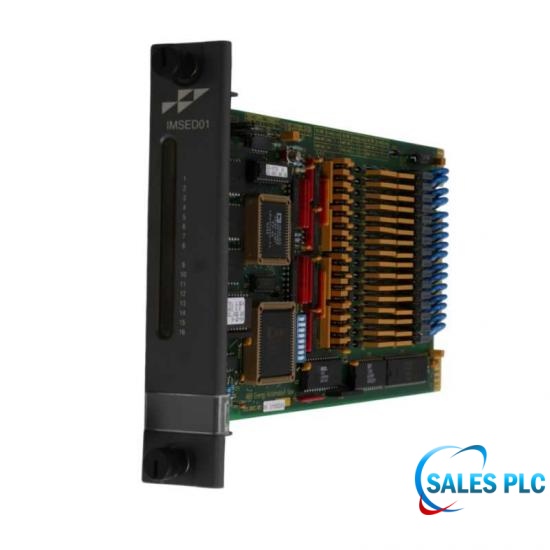

ABB IMSED01 is a sixteen-channel sequence-of-events digital input module used to acquire discrete event states for a Harmony controller.
The module uses function code 242 and the I/O expander bus; up to 63 IMSED01 modules can share a segment with one IMSET01 timing module, while NTDI01 provides field termination.
IMSED01 does not process the synchronization link itself, so replacement must preserve the companion timing architecture, input-voltage selection, channel wiring, event configuration and controller database.
| Manufacturer | ABB |
|---|---|
| Model | IMSED01 |
| Product type | SOE digital input module |
| Digital inputs | 16 |
| Supported input voltages | 24 VDC, 48 VDC, 125 VDC or 120 VAC |
| Operating voltage | 5 VDC +/-5% at 350 mA typical |
| Processor | 16-bit |
| Memory | 64 kB RAM and 64 kB ROM |
| Controller interface | Function code 242 |
| I/O communication | I/O expander bus |
| Modules per bus segment | Up to 63 with one IMSET01 |
| Time-sync processing | Not performed by IMSED01 |
| Termination device | NTDI01 |
ABB IMSED01 acquires sixteen discrete field inputs for timestamped event processing by the configured Harmony controller.
ABB IMSED01 supports documented 24 VDC, 48 VDC, 125 VDC or 120 VAC inputs when channels and termination hardware are configured correctly.
ABB IMSED01 does not process the synchronization link; that function belongs to the companion IMSET01 and timing hardware in the SOE architecture.
Up to 63 ABB IMSED01 modules can operate on a segment together with one IMSET01 timing module in the documented arrangement.
ABB IMSED01 uses an NTDI01 termination unit for field-input wiring.
Commission ABB IMSED01 by checking input-voltage selection, every field transition, channel polarity, debounce and SOE configuration, bus communication and chronological event reporting.

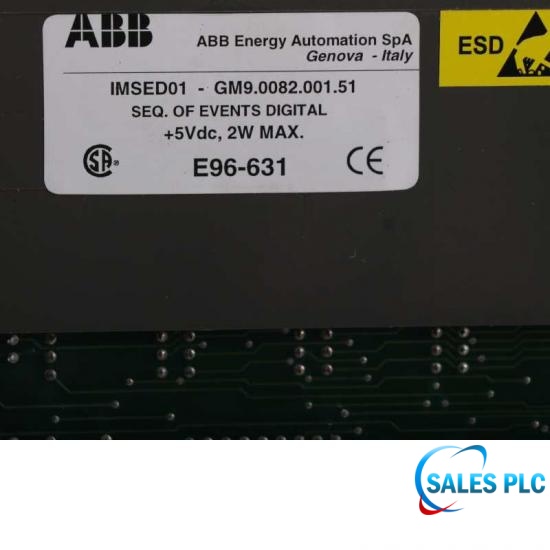

Provide the full ABB IMSED01 label, input voltage, NTDI01 and IMSET01 details, channel and timing configuration, quantity and destination.
Send the complete IMSED01 catalog number, revision, quantity, destination and nameplate photo. Identification details will be checked before quotation.
