TA25DU-M
Thermal Overload Relay · Electromechanical motor-protection relay with phase-loss sensitivity, selectable manual or automatic reset, front test and stop controls, and isolated auxiliary contacts.
Lifecycle note: Use the unit nameplate and current ABB documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Thermal Overload Relay · ABB Motor Protection and Control

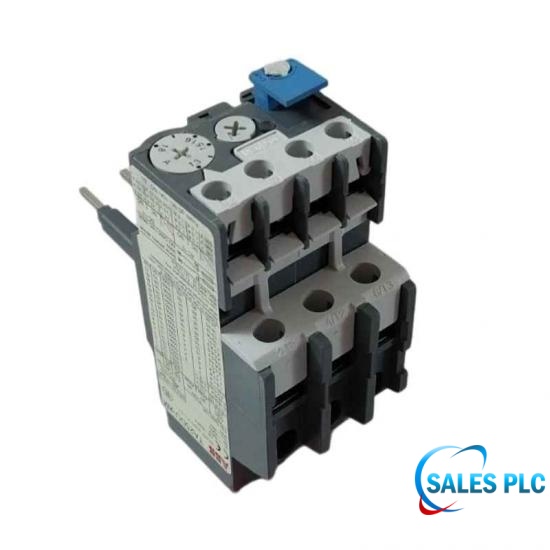

ABB TA25DU-M is an electromechanical thermal overload relay used to protect compatible contactor-controlled motors against sustained overload and phase failure. Its three-pole bimetal sensing system is specified as trip class 10A.

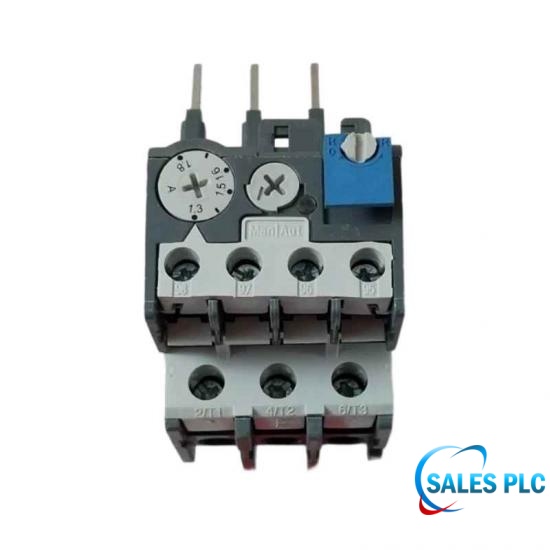

TA25DU-M provides selectable manual or automatic reset, TEST and STOP controls, a visible trip indication, and one normally open plus one normally closed electrically isolated auxiliary contact for control and signalling circuits.

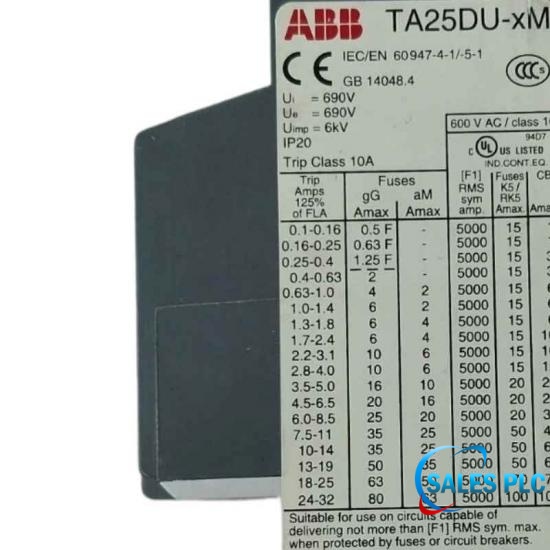

The TA25DU-M family includes multiple current-adjustment versions. Before replacement, verify the exact relay nameplate, current setting range, matched contactor or rail-mounting kit, conductor size, terminal torque and reset mode.
| Manufacturer | ABB |
|---|---|
| Model | TA25DU-M |
| Product type | Three-pole bimetal thermal overload relay |
| Trip class | 10A |
| Protected circuits | Three-phase and single-phase motors |
| Reset modes | Manual or automatic, selectable |
| Phase-loss response | Phase-loss sensitive to IEC/EN 60947-4-1 |
| Auxiliary contacts | 1 normally open plus 1 normally closed, electrically isolated |
| Front controls | TEST and STOP with trip indication |
| Operating temperature | -25 to +55 degrees C |
| Storage temperature | -40 to +70 degrees C |
| Maximum altitude | 2000 m |
| Shock resistance | 12 g for 15 ms |
| Mounting | Direct contactor mounting or DIN rail with single-mounting kit |
| Housing protection | IP20 |
| Auxiliary terminal conductor | 0.75 to 4 mm2 rigid; 0.75 to 2.5 mm2 flexible |
| Auxiliary terminal torque | 0.8 to 1.3 N m |
| Ordering check | Specify the exact current-adjustment version shown on the relay nameplate |
ABB TA25DU-M provides thermal overload and phase-failure protection for a compatible motor circuit, using three bimetal elements with a documented trip class of 10A.
ABB TA25DU-M can be set for manual or automatic reset, and the selected mode must match the machine safety philosophy and approved restart procedure.
ABB TA25DU-M includes one normally open and one normally closed electrically isolated auxiliary contact for trip signalling and contactor-control functions.
ABB TA25DU-M may be mounted directly to a compatible ABB contactor or on a DIN rail with the specified single-mounting kit, subject to the approved mounting position.
ABB TA25DU-M is documented for operation from -25 to +55 degrees C and storage from -40 to +70 degrees C, with a maximum installation altitude of 2000 m.
A similar TA25DU-M family relay should not be substituted until its exact current-adjustment range, contactor fit, reset mode and auxiliary-circuit requirements match the installed unit.
An inquiry for ABB TA25DU-M should include the complete nameplate, adjustable current range, contactor type, mounting method, reset mode, quantity, condition requirement and destination.
Send the complete model, revision, quantity, destination and nameplate photo so the exact hardware identity can be checked.
