Description

Key Highlights
Manufacturer: Siemens
Model Number: 39ACM24BAN 16139-76/09
Product Type: Advanced Control Module
Availability: In Stock
Condition: Original New
Country of Origin: Germany

Technical Specifications

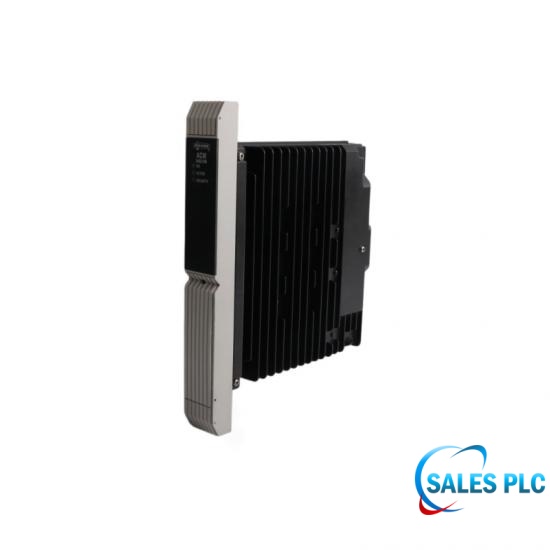

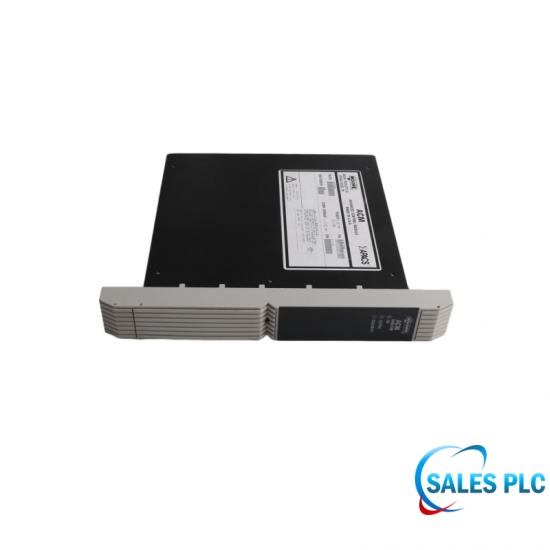

The Siemens 39ACM24BAN 16139-76/09 is an Advanced Control Module. It can centrally receive and process logic signals from various field sensors and actuators. It is used in complex environments such as large-scale industrial manufacturing, chemical, power and energy management to perform high-precision loop control, interlocking and protection tasks.

Manufacturer	Siemens
Article number	39ACM24BAN 16139-76/09
Type	Advanced Control Module

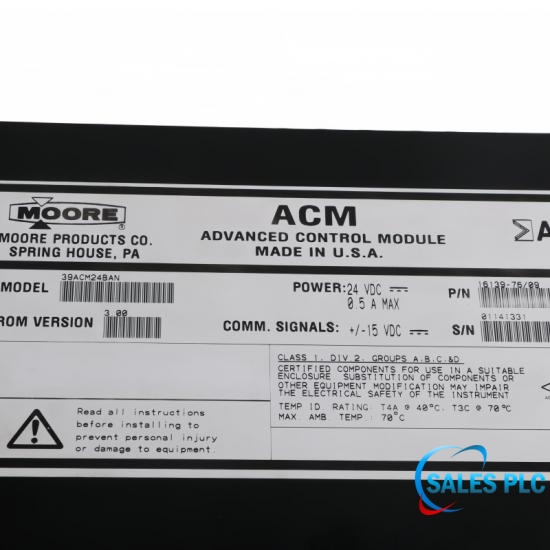

ROM Version	3.00
Operating Voltage	24 VDC
Product Family	APACS / QuadLog Control and Computer Module
Rack Compatibility	Compatible with 040/4M Rack
Communication Protocol	Supports system backplane bus for industrial real-time data exchange
Maximum Current	0.4 A – 0.5 A (Max)
Input Immunity	Compliant with EN 61000-4-2 Standard
Radio Interference Emission	Compliant with EN 55011 Standard
Environmental Temperature	Operating: 0°C to +60°C; Storage: -40°C to +85°C
Installation Slot Type	Dedicated standard system module rack slot
Dimension	4 × 25.7 × 30.5 cm
Weight	2.06 kg

Electrical Specifications

Rated DC Input Voltage: The module adopts a standard industrial-grade 24VDC DC supply voltage (Voltage Level 24VDC), allowing for continuous and stable operation of the card's digital circuitry within the typical voltage fluctuation range of the industrial power grid.

Operating Current and Overall Power Consumption: Its maximum design operating current is strictly controlled between 0.4A and 0.5A (AMPS: 0.4A MAX). This low-power design not only significantly reduces the overall heat generation within the control cabinet but also effectively extends the lifespan of components.

Control Core and Process Processing

Hybrid Control Logic Execution: The card integrates a high-performance process processor capable of simultaneously handling complex continuous control (analog loops, PID regulation) as well as demanding sequential control and discrete switching logic.

Multi-Protocol Network Communication Integration: An onboard dedicated bus communication interface allows the module to perform peer-to-peer real-time data interconnection with other I/O cards or operator stations (HMIs) within the control rack.

Technical FAQ

Q: Does the 39ACM24BAN 16139-76/09 noise suppressor damp electromagnetic frequencies near 100 kHz?
A: Yes, inductive chokes filter out dirty power distortion generated by nearby heavy frequency inverters.

Q: Is the maximum safe transmission distance for the 39ACM24BAN 16139-76/09 link fixed at 50 meters?
A: Yes, attenuation rules require short shielded media lines to guarantee error-free bit processing.

Q: Does the 39ACM24BAN 16139-76/09 motherboard integrate a dual 4-pin auxiliary terminal block?
A: Yes, separate power distribution points allow clean daisy-chain connections to secondary sensor modules.

Q: Can the 39ACM24BAN 16139-76/09 communication buffer hold up to 128 data packets?
A: Yes, ample memory queues prevent information loss during intense network traffic bursts.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
