Analog Signal Multiplier | 89AS30 GKWN000317R0100 | ABB

Technical Specifications

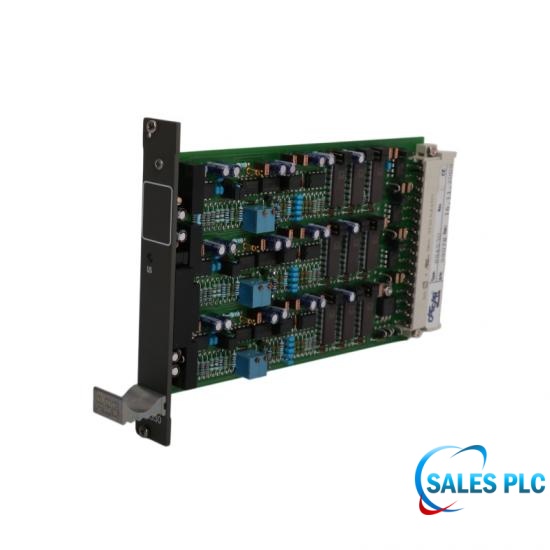

The ABB 89AS30 GKWN000317R0100 is an ABB Procontrol P14 analog signal multiplier with three independent identical function units, enabling simultaneous processing of multiple analog signals in industrial automation applications. 89AS30 GKWN000317R0100 operates from a +24 V DC power supply and accepts both 0 to 10 V DC analog voltage inputs and 0 to 20 mA or 4 to 20 mA analog current inputs, providing flexible compatibility with a wide range of field instruments.

Troubleshooting & Commissioning Checklist

Static Discharge Guarding: Utilize a properly grounded anti-static wrist strap throughout the entire handling process; the high-frequency operational amplifiers and internal signal-splitting paths are highly susceptible to breakdown from electrostatic energy.
Module Insertion: Slide the 89AS30 GKWN000317R0100 smoothly along the card-cage guide rails, verify that the unit seats completely into the gold-plated backplane interface, and fasten the front cover retaining screws.
Chassis Power Down / Isolation: Ensure that the rack level is entirely dead or that the specific installation position is electrically disconnected. Refrain from performing live manipulation of this card under any condition, since sudden electrical spikes on the backplane can cause errors or faults across multiple connected process loops.

Field Engineering Considerations

Utilize the Voltage Test Trace: Access the parallel 0–10 V DC voltage monitor port located on the module's front panel or rear connection plane to perform local loop calibration or diagnostics. This enables technical staff to check internal signal integrity without interrupting the live 4–20 mA current loops that power essential machinery.
Cross-Talk Prevention: Although the card provides distinct channel-to-channel galvanic isolation, channeling the three individual output circuits inside a shared, unshielded multi-core cable may cause capacitive signal bleeding. Route separate, twisted-pair cables with individual shields for every redundant signal pathway.

Technical FAQ

Q: Can I hot-swap a faulty 89AS30 GKWN000317R0100 card when the subrack is active?
A: No, pulling it live can cause voltage surges and disrupt multiple downstream safety loops at once.

Q: Why does the 89AS30 GKWN000317R0100 require strict ground loop management on its outputs?
A: Multiple ground points on output shields introduce earth potential differences, causing data drift across all split paths.

Q: What should I check before installing a warehouse spare 89AS30 GKWN000317R0100 into a slot?
A: You must remove the metal cover and audit the hardware jumpers to match your loop drawings.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
