Control Module | 83SR51C-E GJR2396200R1210 | ABB

Technical Specifications

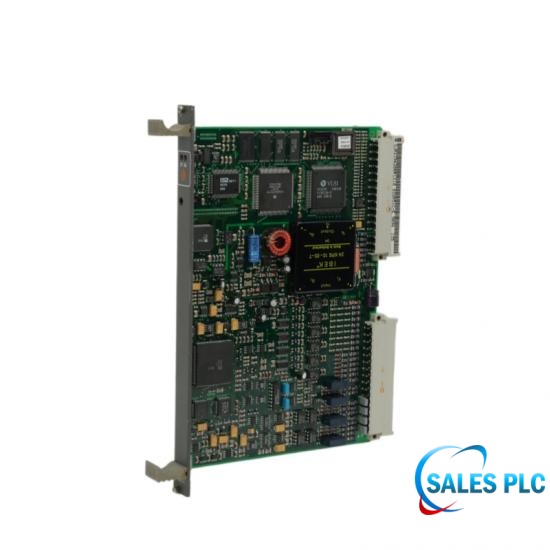

The ABB 83SR51C-E GJR2396200R1210 is an industrial control module for reliable binary and analog control in ABB automation systems. It features 2 independent control channels, with each channel providing 4 digital inputs, 1 digital outpu, 2 analog inputs, and 1 analog output. The module offers a total of 12 input channels, enabling efficient acquisition and processing of both digital and analog field signals for demanding industrial control applications. 83SR51C-E GJR2396200R1210 operates from a 24 VDC power supply, providing stable and dependable performance in industrial control environments.

Troubleshooting & Commissioning Checklist

Chassis Insertion: Confirm the subrack frame section is de-energized or the designated slot remains safely isolated, push the module smoothly into the backplane connector, and tighten the front plate retention screws.
Software Station Address Mapping: Initialize the Procontrol P14 engineering terminal to confirm that the 83SR51C-E GJR2396200R1210 rack position identifier is correctly designated and recognized by the central processing unit.
Analog Input Calibrations: Energize the field instrument loops. Cross-reference the engineering terminal display to ensure the two analog loops for each channel precisely register the 0% (4mA) lower limit and 100% (20mA) upper limit signals from the external transmitters.

Field Engineering Considerations

Total Loop Resistance: The continuous analog output circuit has strict internal burden voltage limits. Ensure the total series resistance of the field loop does not exceed the module's maximum load capability. Exceeding this causes the output stage to saturate, freeze, or fault out.
Intrinsically Safe Barriers: If routing through explosive environments, calculate the exact voltage drop across the barrier. Ensure the 83SR51C-E can still drive the full 20mA signal at peak demand without clipping.

Technical FAQ

Q: Does the 83SR51C-E GJR2396200R1210 support continuous variable modulation, or is it only step-control?
A: This unit generates seamless, variable analog outputs to drive highly accurate, steady, and constant tracking regulation loops.

Q: What happens if the loop resistance exceeds the channel specification on the 83SR51C-E GJR2396200R1210?
A: The modulated output loop enters a state of clipping, which forces the tracking signal to lock up, deviate, or shut down from excessive circuit resistance.

Q: What fail-safe configurations can I select for the 83SR51C-E GJR2396200R1210 if station bus communication drops?
A: The hardware pins can be configured to maintain the previous operational reading, default to the bottom range (0mA), or rise to the top limit (20mA).

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
