Coupling Module | 88TK50A-E GJR2397000R1210 | ABB

Technical Specifications

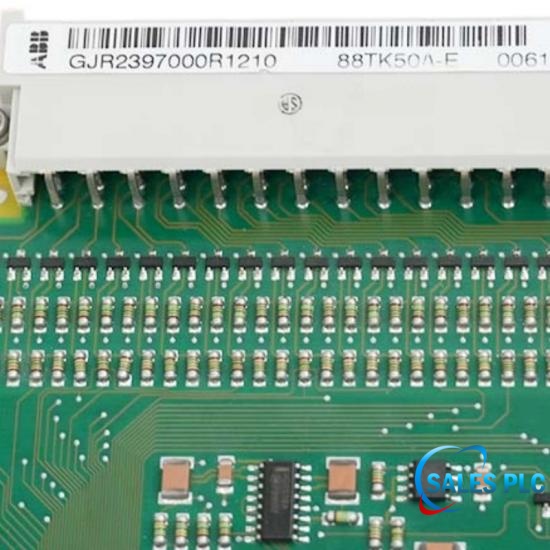

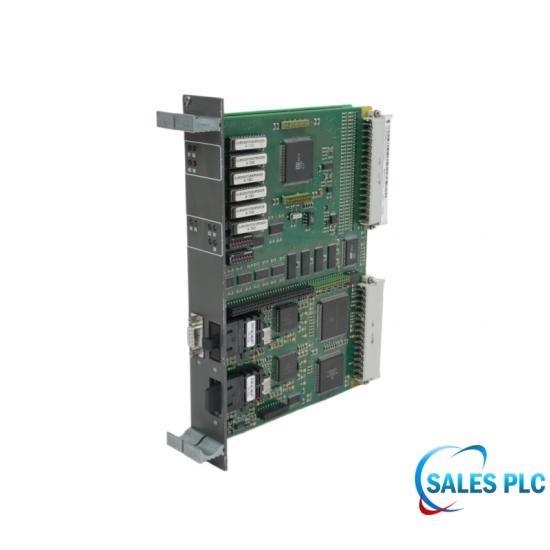

The ABB 88TK50A-E GJR2397000R1210 is an ABB station bus coupling module for high-speed industrial communication in PROCONTROL systems using FDDI technology. 88TK50A-E GJR2397000R1210 operates with a 24 VDC supply voltage, draws 750 mA of current, and has a power dissipation of 18 W, ensuring reliable performance in demanding distributed control applications. The module supports a communication rate of 100 Mbps, providing stable and efficient data transmission between automation stations.

Troubleshooting & Commissioning Checklist

Firmware Consistency: For any dual-redundant station coupling installations, double-check that the active and standby 88TK50A-E GJR2397000R1210 modules are fitted with matching microprogrammable EPROM chips. Diverse software states will obstruct network bus synchronization.
Jumper and Address Auditing: Correlate the printed circuit board's physical link settings with the overarching network plan to determine the proper station location identifier and fix the operational master/slave precedence.
Fiber Transceiver Cleaning: Decontaminate all light-wave ports and fiber interface leads via an industrial optical cleaning stylus or certified non-shredding wipes. Particle accumulation at the connection interface impairs the 100 Mbps data throughput.

Field Engineering Considerations

Bending Radius Constraints: Strictly observe the minimum bend radius limits for the fiber optic jumper cables within the enclosure management tracks. Forcing tight curves introduces micro-cracks, which trigger high optical loss and subsequent sporadic CRC faults.
Dedicated Redundancy Link: In dual-redundant setups, isolate the specific inter-module bridge cable that hooks up the two 88TK50A-E GJR2397000R1210 boards from any high-power distribution circuitry inside the enclosure to prevent electromagnetic induction.
Independent Routing: Direct the main incoming FDDI fiber line and the backup ring fiber network through entirely discrete raceways or overhead cable supports. This architectural separation guarantees that a single tray collapse or localized thermal event cannot fully disrupt station data feeds.

Technical FAQ

Q: Does the 88TK50A-E GJR2397000R1210 support dual-redundant station coupling architectures?
A: Yes. It includes a dedicated redundancy port to cross-link with a secondary module, enabling automatic, bumpless communication failovers within the same station.

Q: Can I hot-swap a faulty 88TK50A-E GJR2397000R1210 module while the subrack backplane is active
?A: No. You must power down the specific subrack slot before inserting or removing this module to prevent voltage transients from disrupting the internal bus.

Q: What will happen if I install a replacement 88TK50A-E GJR2397000R1210 with mismatched internal EPROM firmware?
A: The redundant pairing will fail to synchronize, and the module may trigger communication lockups or drop data packets due to protocol logic conflicts.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
