Description

Key Highlights
Manufacturer: Bently Nevada

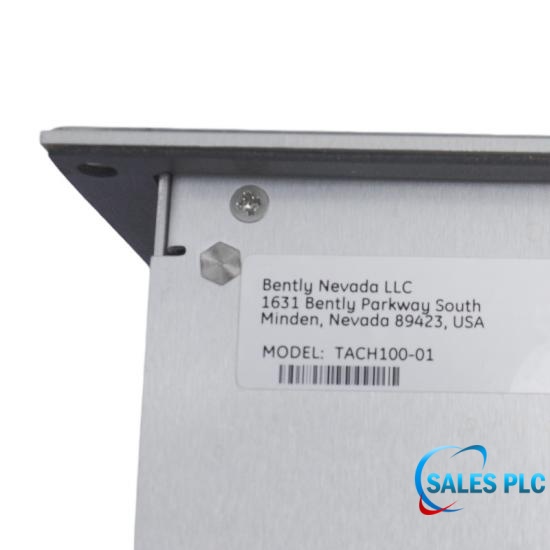

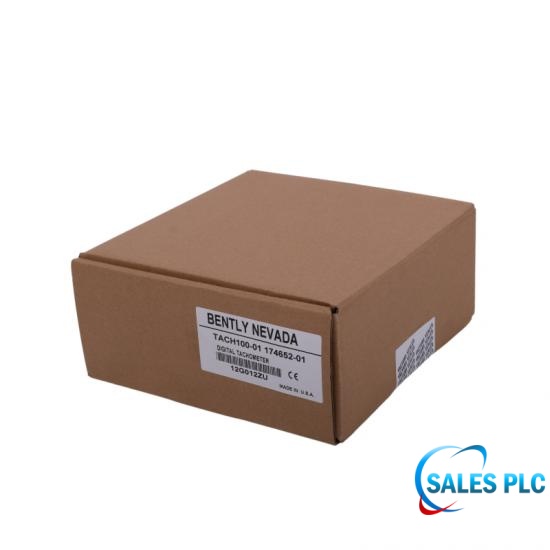

Model Number: TACH100-01 174652-01
Product Type: Digital Tachometer
Availability: In Stock
Condition: Original New
Country of Origin: USA

Technical Specifications

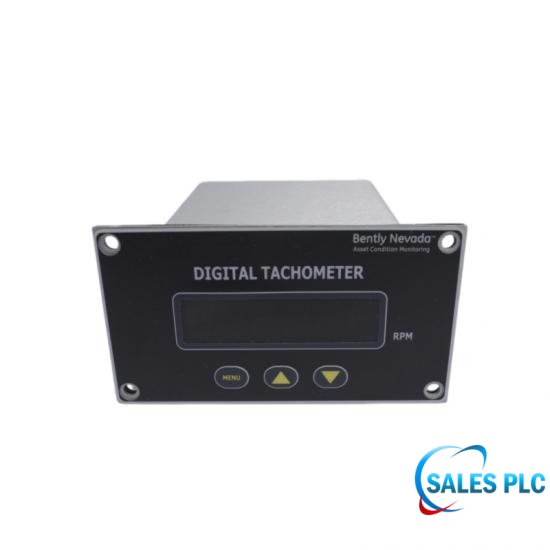

The Bently Nevada TACH100 Digital Tachometer can be used as a stand-alone unit for speed indication or in conjunction with any permanently installed monitoring system as a remote speed indicator. It is often used when a permanent monitoring system is located some distance away (e.g. in a control room) or when no permanent monitoring system is installed and speed indication is required at the machine.

Manufacturer	Bently Nevada
Article number	TACH100-01 174652-01
Type	Digital Tachometer
Dimension	14x16x7.5cm
Weight	0.48kg
Input Signal	From any Bently Nevada Proximitor Sensor
Threshold	Automatic adjustment
Hysteresis	0.2 V DC to 2.5 V DC, field adjustable
Events Per Revolution	1 to 99, field adjustable
Electrical Supply	110–230 V AC, 50–60 Hz, 1.5 A (SB fuse)
Power Consumption	1.01 W nominal (with “88888” display)
Display Type	6-digit LED, 7-segment per digit (digit height 13.2 mm / 0.52 in)
Measurement Range	1 to 999,999 RPM
Measurement Resolution	1 RPM
Measurement Accuracy	±0.015% of input speed (RPM display)
Display Hysteresis	Input signal must change by ≥0.003% to update display
Proximitor Power	–24 V DC at 20 mA maximum
Pollution Degree	2
Installation Category	II
Altitude	2000 m
Operating Temperature Range	0 °C to +60 °C (+32 °F to +140 °F)
Storage Temperature Range	–40 °C to +85 °C (–40 °F to +185 °F)
Relative Humidity	95% max, non-condensing

Dual Operating Modes

Standalone Operation: The instrument has a built-in -24 Vdc power output, which can directly drive a complete set of Bently Nevada eddy current sensors/preamplifiers to independently measure speed on small to medium-sized equipment without a standard 3500 monitoring rack.

Parallel Display: When a large monitoring system is already in place, the TACH100 can be connected in parallel with the existing system's Keyphasor® keyphase probe via a signal line, displaying the speed in real time near the unit for direct reading by inspection personnel, solving the problem of the control room being too far from the equipment.

Wiring Safety Restrictions

If connected in parallel with an existing 3500 system Keyphasor, always operate without power and do not share a common ground wire to prevent the introduction of noise that could cause false alarms from the keyphase module of the larger system.

Technical FAQ

Q: What type of sensor signals does TACH100-01 174652-01 support?

A: It is compatible with standard Bently Nevada eddy current proximitor sensor signals. It can directly accept Keyphasor pulse signals and supports automatic threshold adjustment.

Q: Can TACH100-01 174652-01 power the probe without an external power supply?

A: Yes. It has a built-in independent power circuit that can directly supply -24 VDC (up to 20 mA) to an external eddy current proximitor, enabling standalone sensor operation.

Q: How should TACH100-01 174652-01 be wired if a 3500 system already exists on site?

A: It supports parallel signal connection. The Keyphasor signal and common line can be tapped from an existing permanent Keyphasor probe and connected in parallel to the monitoring rack Keyphasor input terminals without affecting the main protection system’s normal data acquisition.

Q: What are the power supply requirements of TACH100-01 174652-01?

A: It supports a wide input voltage range of 110–230 VAC (50–60 Hz) and includes a 1.5 Amp slow-blow fuse (SB Fuse) for overload protection.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
