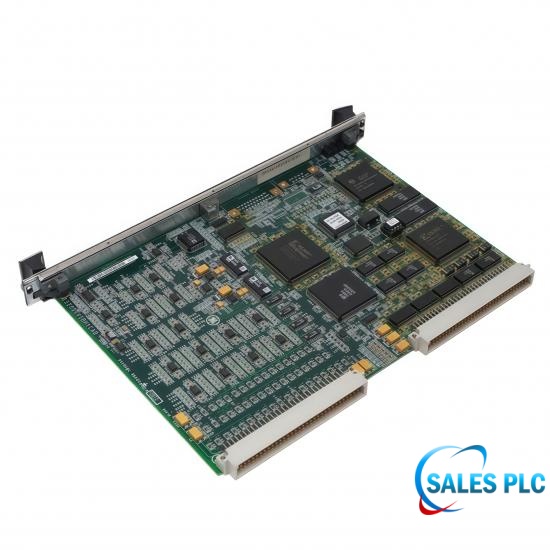

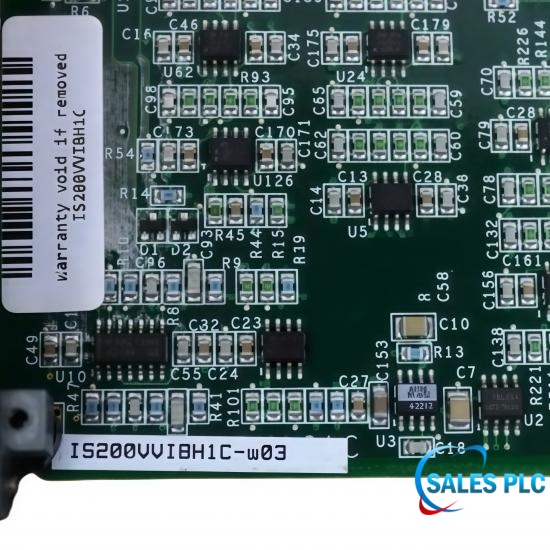

GE IS200VVIBH1CAB IS200VVIBH1C Vibration Monitor Board

In Stock Brand The IS200VVIBH1C (often listed with companion suffix variant IS200VVIBH1CAB) is a VME Vibration Monitor Board manufactured by General Electric for the Speedtronic Mark VI turbine control system

Product Condition
Original New with One Year Warranty
Parts Available
In Stock and Same Day Shipping
Delivery Mode
Shipping via DHL Fedex or UPS etc
Email:
sales8@amikon.cn
Whatsapp/Mob:
+86 18030235313

Description

Key Highlights
Manufacturer: GE
Model Number: IS200VVIBH1CAB IS200VVIBH1C
Product Type: Vibration Monitor Board
Availability: In Stock
Condition: Original New
Country of Origin: USA

Technical Specifications

IS200VVIBH1C is a Vibration Monitor Board developed by General Electrics under Mark VI. Vibration probe signals from the TVIB or DVIB terminal board are processed by the Vibration Monitor board. Up to 14 probes can be connected to the terminal board directly. To the VIVB processor board, two TVIB can be connected. VVIB digitizes the various vibration signals and transmits them to the controller over the VME bus.

Maximum Probe Capacity	26 probes with two TVIB boards
Probe Power	-24 VDC from -28 VDC bus
Excitation Sources	-23 to -26 VDC
Load per Transducer	12 mA
Maximum Sampling Rate	4,600 samples/second
Wideband Filtering Rate	4.6 kHz / 2.3 kHz
Gap Filter Type	2-pole low-pass
Gap Filter Cutoff	8 Hz

IS200VVIBH1C Installation

To install the V-type board, follow these instructions.
Turn the VME processor rack off.
To seat the board's edge connectors, slide them in, and push the top and bottom levers in with your hands.
Tighten the captive screws on the front panel's top and bottom.

IS200VVIBH1C Operation

Bently Nevada Proximitor, Seismic, Accelerometer, and Velomitor probes are supported by the terminal board. The vibration probes are powered by the VVIB boards in either simplex or TMR mode.
The probe signals are returned to VVIB, where they are A/D converted and sent to the controller via the VME bus. For Proximitor power, VVIB supplies -28 V dc to the terminal board. A diode high-select circuit in TMR systems selects the highest -28 V dc bus for redundancy. Individual excitation sources, -23 to -26 V dc, short circuit protected, are provided by regulators.
Over discrete time periods, probe inputs are sampled at high speeds of up to 4600 samples per second. The maximum and minimum values are accumulated, the difference (max-min) is used to calculate vibration, and the results are filtered. The resulting peak-to-peak voltage is scaled to produce engineering units (EU) (peak-to-peak) displacement for Proximitors inputs and EU (pk) velocity inputs from accelerometers, integrated outputs, seismics, and Velomitors.

FAQ 技术常见问题解答

Q: What is the main function of IS200VVIBH1C?
A: It processes vibration probe signals received from TVIB or DVIB terminal boards.

Q: How many probes can IS200VVIBH1C support?
A: The page specifies up to 26 probes when two TVIB boards are used.

Q: How many probes can connect to one IS200VVIBH1C terminal board?
A: Up to 14 probes can connect directly to a terminal board.

Q: Which probes are compatible with IS200VVIBH1C?
A: Proximity, velocity, acceleration, seismic, and phase probes are listed.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
