GE IS2020RKPSG2A Power Supply Module

Technical Specifications

The IS2020RKPSG2A is a VME Power Supply Module that serves as part of the Mark VI Turbine Control System Series. This abbreviation for the VME Rack Power Supply is RKPS.The Mark VI Series that this IS2020RKPSG2A printed circuit board product offering belongs to, as indicated through its full extended series name, has a series of specific applications in the management and control systems of esteemed General Electric-compatible wind, gas, and steam turbine-based automated drive assemblies. This IS2020RKPSG2A product's greater Mark VI Turbine Control System Series is additionally seen as an attractive product line on the greater figurative automated industrial marketplace given the fact that it truly exists as one of the final-developed GE Mark product series to make use of the patented Speedtronic control system technology; a technology first released for public consumption with the rollout of the previous Mark I Series in the mid to later 1960s.

Hardware Tips

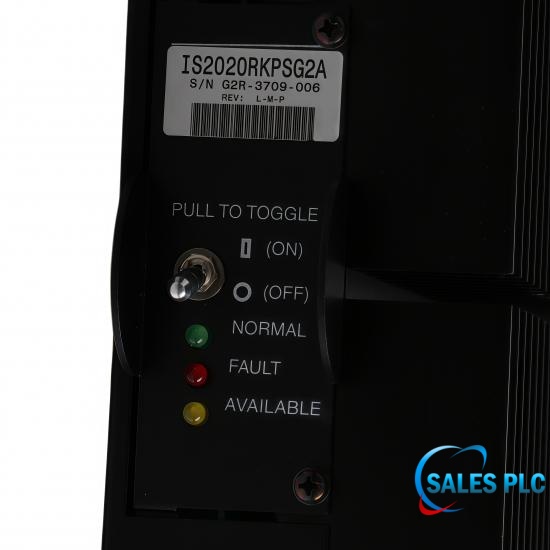

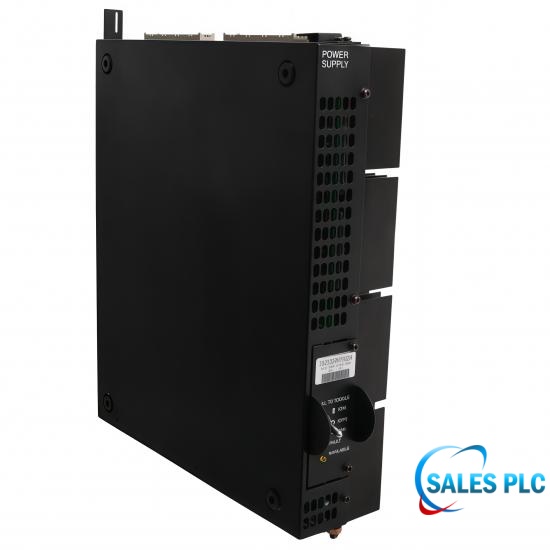

The IS2020RKPSG2A is designed as a stand-alone module. It has a front faceplate that includes three LEDs (yellow, red, green,) and a switch component. The faceplate is labeled “Power supply,” and also has a location to record the revision number, GE catalog number, and serial number for easy reference. The side of the module is designed with many metal fins. This side of the module functions as a large heat sink component. The top edge of the module has two connectors (PSA and PSB) and the bottom has four additional connectors (PS125 or PS24, PS335, PS28, and PSSTAT.) It is important to note the VME rack power supply has seven major variations. Fault conditions that happen within the  IS2020RKPSG2A module will require reset action, will transiently shut down one of the outputs, or will require the replacement of the entire supply. These are the only types of faults that occur.
RKPS functional product abbreviation
Normal PCB coating style
Group 2 Mark VI Series product grouping
A-rated primary functional product revision

Installion

FAQ  技术常见问题解答

Q:Are any switches available in the IS2020RKPSG2A device's assembly?
A:Yes. One labeled switch is available on the exterior face of this IS2020RKPSG2A product.

Q:What is the primary function of this power supply?
A:This power supply is designed for use in the Mark VI Series of GE Speedtronic gas turbine control systems. It provides DC power to the VME rack backplane and optional 335 V DC for flame detectors.

Q:What are the output voltages of this power supply?
A:This unit provides multiple output voltages: +5 V, ±12 V, ±15 V, ±28 V DC, and an optional 335 V DC for flame detector systems.

Q:What is the input voltage requirement?
A:The input voltage is typically 125 V DC, supplied through a Power Distribution Module (PDM). A low-voltage version for 24 V DC operation is also available.
