GE IS220PGENH1AE Turbine-Generator Monitor Module

Technical Specifications

The IS220PGENH1AE executes the Power Load Unbalance control logic previously handled by the VGEN module in Mark VI systems. As a functional boundary definition, this hardware unit lacks the power calculation functions such as kW, kVARS, and KVA computations as well as the early valve actuation logic found in the VGEN module.

Interfaces and Channels

· Signal Channel Count: Configured with 6 input channels.

· Input Signal Sources: Receives secondary signals from potential transformers (PT) and current transformers (CT) to monitor each phase of generator armature current.

· Sensor Configuration: Monitored via 3 analog channels using either voltage or 4-20 mA transducers for turbine mechanical power.

· Common Mode Voltage Range: 5 V

Communication and Connectivity

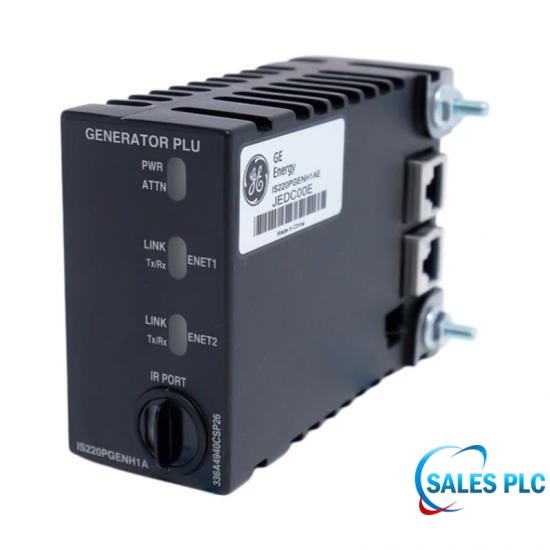

The IS220PGENH1AE includes dual 100 Mbps Ethernet ports via dual RJ45 Ethernet connectors for network communication interfaces and uses a 3-pin power input plug for its power input interface. The system network topology supports a single Ethernet network for simplex or Triple Modular Redundant control architectures. For physical output connection, a DC-37 pin connector plugs directly into the matching terminal board connector, while integrated front-panel LEDs serve as diagnostic indicators to provide visual status diagnostics.

FAQ

Q: What is the main function of IS220PGENH1AE?
A: It acts as a control and communication gateway between the terminal board and the upper IONet industrial Ethernet.

Q: How to use products like IS220PGENH1AE?
A: Plug it into a compatible terminal board and connect to the system network via Ethernet ports for data transmission.

Q: Which system applies the IS220PGENH1AE?
A: It is primarily used in GE Mark VIe turbine and distributed industrial control systems.

Q: What network protocol does IS220PGENH1AE support?
A: It supports the proprietary dual IONet (nominal 10/100 Mbps Ethernet-based) protocol.
