GE IS220PPRFH1A PROFIBUS Master Gateway Module

Technical Specifications

The IS220PPRFH1A is a PROFIBUS Master Gateway I/O module within the Mark VIe Turbine Control System Series, which integrates Speedtronic control system technology. This component is used in management and control systems for gas, steam, and wind turbine automated drive assemblies, serving as the A-rated functional revision of the IS220PPRFH1 parent module.

IS220PPRFH1A Model Naming Elements

The IS220PPRFH1A model number denotes hardware and specification details. The prefix IS220 indicates the Mark VIe Series modular version, with the remaining part containing consecutive functional naming elements.

· IS220- Mark VIe Series modular version

· PPRF - PROFIBUS Master Gateway functional abbreviation
· H- Conformal PCB coating style
· 1- Group one product grouping
· A-rated functional product revision

Hardware Tips and Specifications

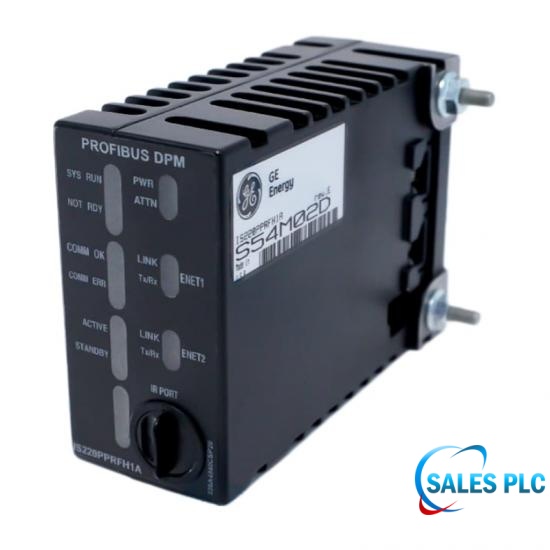

The IS220PPRFH1A module is equipped with a processor board, a carrier board with an integrated Hilscher GmbH COM-C PROFIBUS communication module, an internal temperature sensor, flash memory, and RAM. The faceplate features an inactive infrared port and LED status indicators. This component utilizes a conformal PCB coating, receiving inputs via dual RJ45 Ethernet ports, while delivering output through a DC-37 pin connector that links directly to the IS200SPIDG1A terminal board. PROFIBUS network connection is achieved via a DE-9 D-sub receptacle integrated on the associated terminal board.

FAQ

Q: What is the primary use of IS220PPRFH1A?
A: Used for real-time communication between the controller and third-party PROFIBUS slave devices.

Q: Which product series does IS220PPRFH1A belong to?
A: Belongs to the GE Mark VIe turbine control and protection system series.

Q: What network protocol does IS220PPRFH1A support?
A: It runs the IONet protocol via dual Ethernet ports.

Q: How to check the operating status of IS220PPRFH1A?
A: Check via the LED status indicators on the front cover of the module.
