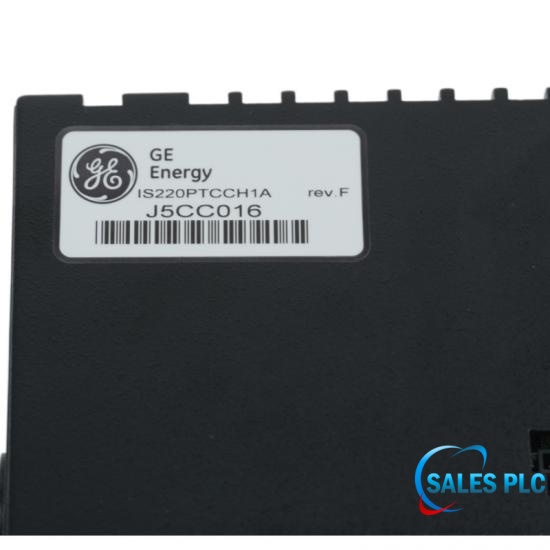

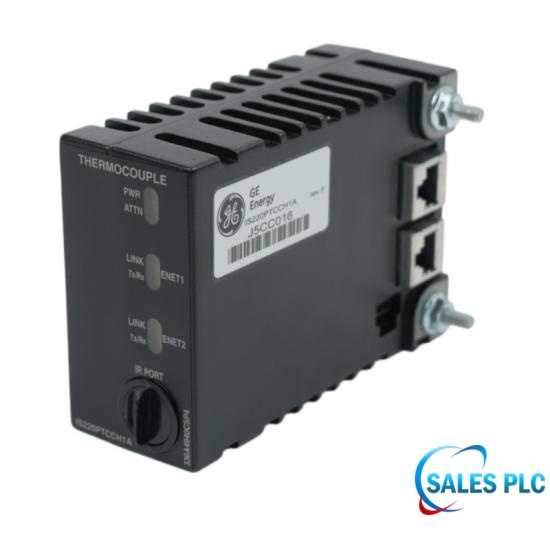

The IS220PTCCH1A is a thermocouple input module, commonly referred to as a thermocouple input pack, manufactured by GE Energy. In Stock Original New Unused.
 |
 |
|
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales8@amikon.cnWhatsapp/Mob:
+86 18030235313
Technical Specifications
The IS220PTCCH1A is a thermocouple input module (PTCC) that functions as an A-rated revision of the IS220PTCCH1 parent module within the Mark VIe Series. This module contains an internal BPPx processor board alongside an acquisition board for thermocouple input functions, and it is compatible with simplex, duplex, and triple modular redundant (TMR) applications.
|
Manufacturer |
GE |
|
Model |
IS220PTCCH1A |
|
Supported Thermocouple Types |
E, J, K, S, and T standard thermocouples |
|
mV Inputs |
Supports mV inputs with a span of -8 to 45 mV |
|
Thermocouple Grounding |
E, J, K, S, and T thermocouples can be either grounded or un-grounded |
|
Common Mode Voltage |
±5 volts |
|
Maximum Software Error |
0.25 degrees Fahrenheit |
|
Dimensions |
128 x82x 60 mm |
|
Weight |
0.38 kg |
Thermocouple and Input Support
Supporting grounded or ungrounded standard E, J, K, S, and T thermocouples alongside -8 to 45 mV inputs, this module can be located up to 300 meters (984 feet) from the turbine I/O panel with a maximum cable resistance of 450 Ω. It provides 12 thermocouple inputs with a single pack, 24 inputs with two packs, and utilizes three packs for TMR configurations.
Application Fields
The IS220PTCCH1A module is used in gas and steam turbine control systems within power generation, oil and gas, and heavy industries. The component monitors temperatures of turbine bearings, exhausts, combustors, and critical pipelines, providing thermocouple data for industrial process automation and safety interlocking protection systems.
FAQ
Q: What is the main function of IS220PTCCH1A?
A: It collects and processes thermocouple temperature signals from industrial equipment.
Q: How to use products like IS220PTCCH1A?
A: Mount it on a terminal board and connect thermocouple sensors to monitor system temperature.
Q: Which system applies the IS220PTCCH1A?
A: It is primarily used in GE Mark VIe distributed control systems.
Q: How many channels does IS220PTCCH1A have?
A: The module provides 12 thermocouple input channels.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
