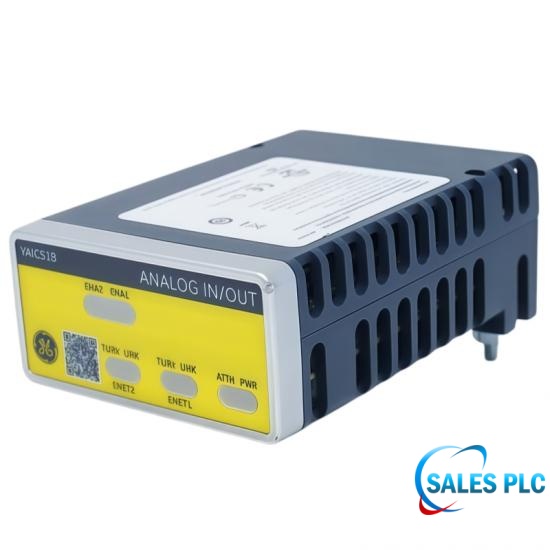

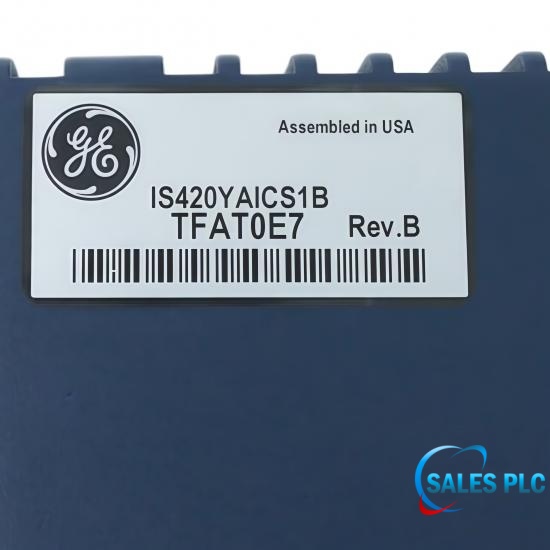

GE IS420YAICS1B Analog I/O Module

Technical Specifications

The GE IS420YAICS1B is a YAIC Safety Analog I/O Pack for the Mark VIeS Functional Safety System. It operates with compatible STAIS2A or TBAIS1C terminal boards and provides 12 analog channels, consisting of 10 analog inputs and 2 analog outputs. Input channels support voltage and current signals, including 1–5 VDC, ±5 VDC, ±10 VDC, 0–20 mA, and ±1 mA configurations. The module uses a 16-bit A/D converter, provides 0.1% full-scale analog input accuracy, and supports Simplex or TMR architectures depending on the selected terminal board. It is IEC 61508 safety rated.

Features

The component has current loop inputs, which are complemented by load terminal resistors conveniently located on the terminal board. These resistors enable precise current loop measurements, ensuring accurate and reliable data for control and monitoring purposes.
It boasts dual 0–20 mA current loop outputs. These outputs are essential for seamless interfacing with other systems and devices, facilitating the transmission of control signals and sensor data to external components. Whether it's for process control or data acquisition, these outputs enhance versatility and connectivity.
Three-pin power input ensures the device operates efficiently, guaranteeing consistent and dependable performance. Furthermore, the inclusion of two RJ-45 Ethernet connectors expands its connectivity options, enabling data exchange and communication with networked systems, enhancing its adaptability in modern industrial settings.
Streamlining the output process, the component features a DC-37 pin connector directly connected to the associated terminal board connector. This simplifies the connection procedure, reducing setup time and ensuring reliable data transmission. Additionally, the device incorporates LED indicator lights, offering valuable visual diagnostics. These indicators provide real-time information about the operational status, simplifying troubleshooting and maintenance tasks.
Integration ensures compatibility and simplifies the installation process, allowing users to leverage its capabilities effectively. Moreover, the component is received by a single DC-37 pin connector on simplex termin, further streamlining the connection process and ensuring a secure and reliable attachment to the system.

Installation

FAQ  技术常见问题解答

What type of outputs does the YAIC have?
It has two 0–20 mA current loop outputs.

How is the module powered?
It is powered by a three-pin power input.

How does the module connect to the terminal board?
The YAIC is directly mounted to a Mark VIeS terminal board and is received by a single DC-37 pin connector on simplex terminal boards.

What types of terminal boards can operate in simplex mode with a single module installed?
TMR-capable terminal boards, which have three DC-37 pin connectors, can operate in simplex mode with a single installed.
