05704-A-0123
5704F Hex Relay Interface Card · Detector input and configurable relay-output interfacing
Lifecycle note: Use the unit nameplate, linked product PDF and current Honeywell documentation as the final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 153594082755704F Hex Relay Interface Card · Honeywell System 57 / 5704F Fire Control
Honeywell 05704-A-0123 is the Hex Relay Interface Card used with the System 57 5704F fire control architecture. The Honeywell manual explains that each four-channel control card is associated with an interface card that provides the necessary detector-input and optional relay-output connections.

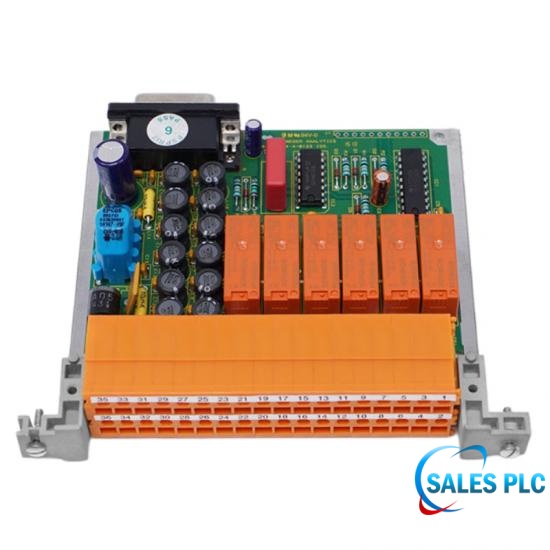

Honeywell 05704-A-0123 provides six single-pole change-over relays. Relay operation is selectable for latching or non-latching behavior and for energized or de-energized operation, supporting application-specific alarm and control strategies within the 5704F rack.
The specification lists Honeywell 05704-A-0123 at 132 mm high, 25 mm wide and 119 mm deep, with a weight of 240 g. Typical power consumption is 1.7 W and maximum power consumption is 2.4 W; the relay contacts are rated 5 A at 110/250 VAC or 5 A at 32 VDC for non-inductive loads, with 2.5 mm² field terminals.
System 57 racks can contain a mixture of 5704F, 5704 and 5701 control cards, so Honeywell 05704-A-0123 must be matched to the exact four-channel control assembly, rack access arrangement, detector circuits, relay wiring and expansion-relay requirements before replacement.
| Manufacturer | Honeywell Analytics |
|---|---|
| Model | 05704-A-0123 |
| Product type | 5704F Hex Relay Interface Card |
| System family | Honeywell System 57 / 5704F |
| Relays | 6 × SPCO |
| Relay operation | Selectable latching/non-latching and energized/de-energized |
| Relay contact rating | 5 A at 110/250 VAC or 5 A at 32 VDC, non-inductive |
| Power consumption | 1.7 W typical; 2.4 W maximum |
| Dimensions | 132 × 25 × 119 mm |
| Weight | 240 g |
| Field terminals | 2.5 mm² / 14 AWG |
| Primary order check | Exact control card, rack arrangement, relay wiring and detector connections |
Use the installed-unit nameplate, linked product PDF and current Honeywell documentation as the final references before approving a replacement.
Honeywell 05704-A-0123 is the Hex Relay Interface Card for a System 57 5704F four-channel fire control assembly.
Honeywell 05704-A-0123 provides detector-input connections and configurable relay-output interfacing for the associated four-channel control card.
Honeywell 05704-A-0123 is used in Honeywell System 57 / 5704F fire and gas detection racks.
Honeywell 05704-A-0123 provides six SPCO relays with selectable latching or non-latching and energized or de-energized operation.
Honeywell 05704-A-0123 is rated at 1.7 W typical and 2.4 W maximum, uses 5 A relay contacts for the documented non-inductive AC or DC loads, and measures 132 × 25 × 119 mm.
Check the complete 05704-A-0123 identifier, control-card type, rack access arrangement, detector wiring, relay logic, field terminals and any expansion-relay assembly.
Yes. Honeywell 05704-A-0123 must be distinguished from the 05704-A-0133 relay interface assembly and other System 57 interface cards.
Technical information for Honeywell 05704-A-0123 can be checked in the linked Honeywell 5704F manual, the installed-card label and current System 57 documentation.
We can supply Honeywell 05704-A-0123 in 100% original-new condition with factory seal and provide a 1-year warranty, subject to stock confirmation.
Send the model, complete identification, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
Technical information is based on the linked product PDF and current Honeywell documentation. Final suitability must be verified against the exact installed unit and current official Honeywell documentation.
