8C-TDILA1 51307141-175
Series 8 24 VDC Digital Input IOTA · 24 VDC Digital Input I/O Termination Assembly for Honeywell Experion Series 8 I/O System
Lifecycle note: Use the unit nameplate and current Honeywell documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Series 8 24 VDC Digital Input IOTA · Honeywell Experion Series 8 I/O System

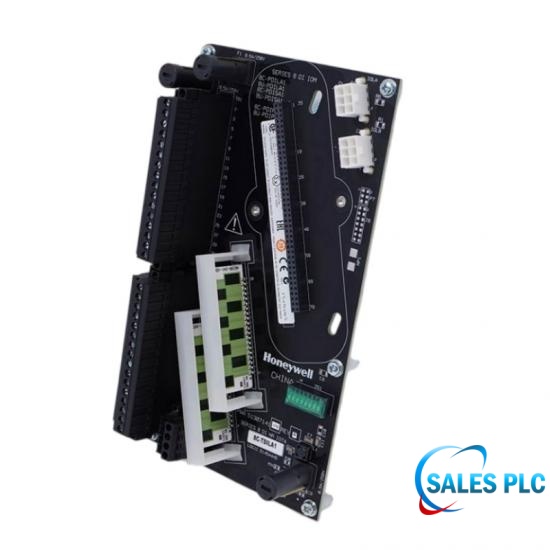

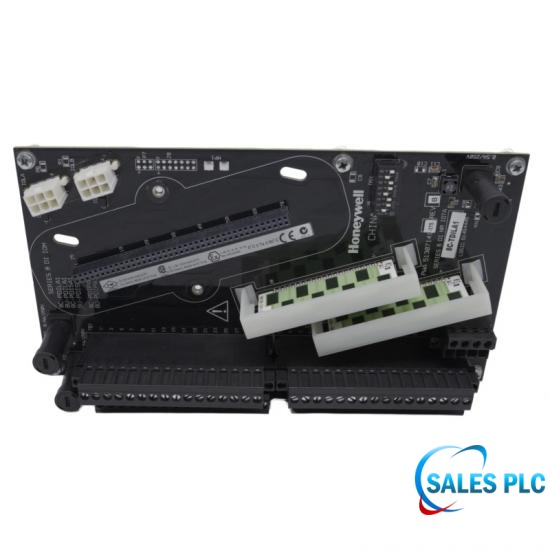

Honeywell 8C-TDILA1 51307141-175 is a series 8 24 vdc digital input iota for the Experion Series 8 I/O architecture. It terminates field contact circuits and provides the mounting, power and signal interface for a compatible digital input or sequence-of-events IOM.
The Honeywell Series C 24 VDC digital input function associated with Honeywell 8C-TDILA1 51307141-175 is documented for 32 channels. Official data identifies an 18-30 VDC field-power range, optical isolation in the IOM and defined ON/OFF recognition thresholds for reliable discrete-state processing.
The A1 order-code hardware must be checked against the exact installed assembly because the public family specification does not enumerate every coated order-code variant. The Series 8 IOTA receives power from the 24 VDC carrier bus and uses detachable terminals for field wiring. Redundant layouts accept the documented second IOM directly on the IOTA, avoiding separate redundancy-control cabling.

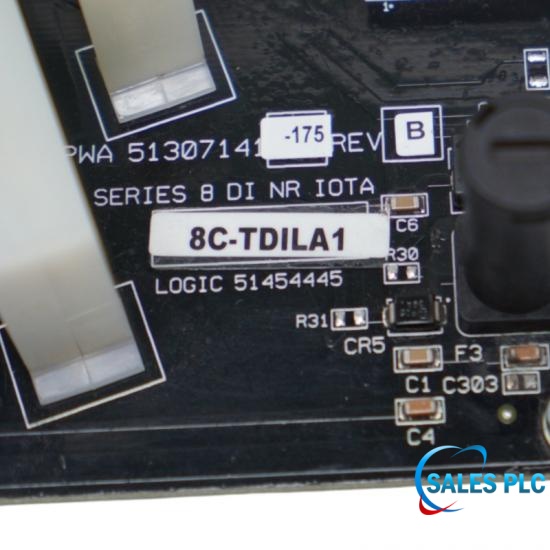

Before replacing Honeywell 8C-TDILA1 51307141-175, verify the complete nameplate, a1 hardware arrangement, verify exact a1 physical assembly, paired Exact approved Series 8 24 VDC digital input IOM, field-power source, terminal commoning, scan or SOE requirement and Experion database assignment. Similar TDIL part numbers are not automatically interchangeable.
| Manufacturer | Honeywell |
|---|---|
| Complete model | 8C-TDILA1 51307141-175 |
| System family | Honeywell Experion Series 8 I/O System |
| Product type | 24 VDC Digital Input I/O Termination Assembly |
| IOTA configuration | A1 hardware arrangement |
| Nominal IOTA size | Verify exact A1 physical assembly |
| Associated channels | 32 channels |
| Associated signal | 24 VDC discrete input |
| Compatible IOM check | Exact approved Series 8 24 VDC digital input IOM |
| Carrier power | 24 VDC Series 8 IOTA carrier bus |
| Field-power range | 18-30 VDC |
| ON recognition | 13 VDC minimum or 3 mA minimum |
| OFF recognition | 5 VDC maximum or 1.2 mA maximum |
Use the installed-unit nameplate, current Honeywell documentation and approved cabinet engineering records as the final references.
Honeywell 8C-TDILA1 51307141-175 is a 24 VDC digital input I/O termination assembly in the Experion Series 8 architecture. It terminates field contacts and provides the mounting and electrical interface for the compatible digital input IOM.
Honeywell 8C-TDILA1 51307141-175 belongs to the Series C 24 VDC digital input arrangement documented for 32 channels. Channel allocation, commoning, field power and the paired IOM must match the approved cabinet drawings.
Honeywell 8C-TDILA1 51307141-175 is associated with 24 VDC digital input service. Honeywell documents an 18-30 VDC field-power range, with ON and OFF recognition dependent on the paired IOM and correct field-circuit resistance.
Honeywell 8C-TDILA1 51307141-175 must be paired with the approved 24 VDC digital input or sequence-of-events IOM for the installed application. Verify IOM model, redundancy, scan requirement and Experion release before replacement.
Honeywell 8C-TDILA1 51307141-175 receives system power through the Series 8 IOTA carrier and distributes the required field connections through its terminals. Confirm the 24 VDC bus, external field-power design, grounding and protective devices before energizing.
Install Honeywell 8C-TDILA1 51307141-175 only after isolating field and system power. Compare the complete part number, physical length, redundancy layout, terminal blocks, connector keys, carrier position and grounding with the removed assembly and Honeywell drawings.
Commission Honeywell 8C-TDILA1 51307141-175 by verifying every terminal against the loop or I/O schedule, checking polarity and field power, confirming the correct IOM and redundancy state, and proving channel indication or output response from Experion.
No direct substitution should be assumed. Honeywell 8C-TDILA1 51307141-175 must match the complete model, part number, I/O function, physical size, redundancy arrangement, terminal mapping, compatible IOM and installed Experion configuration.
Honeywell Experion Series-C I/O Specification EP03-490-520 provides the family architecture, IOTA sizing and technical data relevant to Honeywell 8C-TDILA1 51307141-175. Use it with the exact nameplate, cabinet drawings and current system documentation.
Send the complete Honeywell model, part number, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
