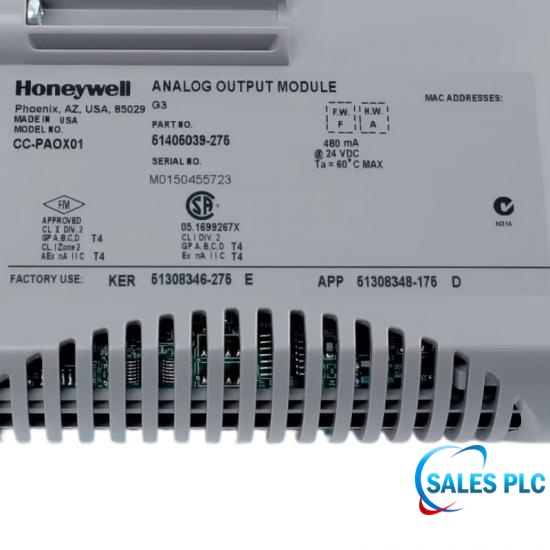

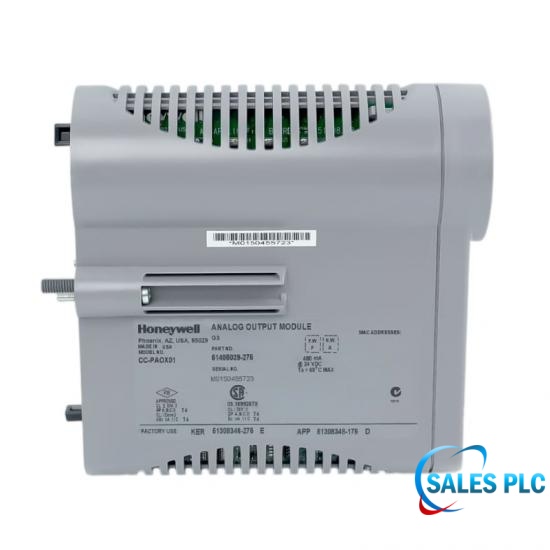

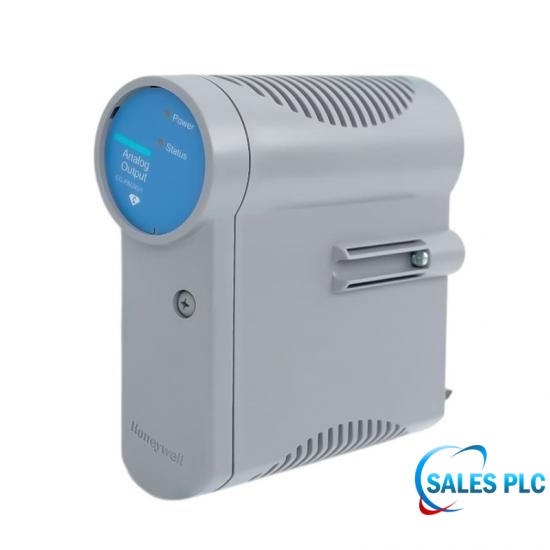

Honeywell CC-PAOX01 51405039-275 16-Channel High-Level Analog Output Module
CC-PAOX01 51405039-275
16-Channel High-Level Analog Output Module · 16-Channel High-Level Analog Output Module for Honeywell Experion PKS Series C I/O
Lifecycle note: Use the unit nameplate and current Honeywell documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 1535940827516-Channel High-Level Analog Output Module · Honeywell Experion PKS Series C I/O
Honeywell CC-PAOX01 51405039-275 is a Series C high-level analog output module for Experion PKS. It delivers sixteen 4–20 mA constant-current outputs to actuators, valve positioners and recording or indicating devices.
The CC-PAOX01 design provides output readback, discrepancy alarming, open-wire detection and extensive self-diagnostics. Each channel can be configured to hold its last value or shed to a defined safe value through the FAILOPT function.
Honeywell documents CC-TAOX01 for non-redundant mounting and CC-TAOX11 for redundant mounting. The module supports output validation while keeping the field-wiring termination separate from the replaceable electronics.
Before replacing CC-PAOX01 51405039-275, match the full order number, IOTA type, redundancy arrangement, loop load, configured safe state and Experion release. Do not substitute a HART or different suffix variant by appearance.
| Manufacturer | Honeywell |
|---|---|
| Model | CC-PAOX01 51405039-275 |
| Product type | High-Level Analog Output Module |
| System family | Experion PKS Series C I/O |
| Output type | 4–20 mA constant current |
| Output channels | 16 |
| Output ripple | <100 mV peak-to-peak at power-line frequency across 250 Ω |
| Temperature drift | 0.005% of full scale/°C |
| Output readback accuracy | ±4% of full scale |
| Output current linearity | ±0.05% of full scale nominal |
| Resolution | ±0.05% of full scale |
| Calibrated accuracy | ±0.35% of full scale at 25°C, including linearity |
| Settable current range | 0 mA and 2.9–21.1 mA |
| Maximum resistive load | 800 Ω with 22–28 VDC supply |
| Maximum compliant voltage | 16 V |
| Maximum open-circuit voltage | 22 V |
| Response time | Settles within 1% of final value in 80 ms |
| Redundant switchover gap | 10 ms maximum at 0 mA |
| IOTA options | CC-TAOX01 / CC-GAOX21 non-redundant; CC-TAOX11 / CC-GAOX11 redundant |
Use the installed-unit nameplate, current Honeywell documentation and approved site records as the final references.
Honeywell CC-PAOX01 51405039-275 is a sixteen-channel Series C 4–20 mA analog output module without HART communication for Experion PKS.
Honeywell CC-PAOX01 51405039-275 converts Experion output commands into sixteen constant-current 4–20 mA signals and monitors each channel through output readback and open-wire diagnostics.
Honeywell CC-PAOX01 51405039-275 is used for modulating final elements such as valve positioners, drive references and compatible recording or indicating devices in Experion PKS control strategies.
Honeywell documentation for the CC-PAOX01 model specifies sixteen 4–20 mA channels, ±0.35% calibrated accuracy at 25 °C and up to 800 ohms load with a 22–28 VDC supply.
Honeywell CC-PAOX01 51405039-275 is associated with CC-TAOX01 for non-redundant service or CC-TAOX11 for redundant service; the installed carrier and configuration must match.
Before installing Honeywell CC-PAOX01 51405039-275, verify the complete nameplate, hardware revision, mounting or carrier arrangement, field wiring, power, grounding and the approved Experion PKS configuration.
Commission Honeywell CC-PAOX01 51405039-275 under the approved site procedure. Prove the configured function, field connections, diagnostics and controller response before returning the affected process or network service to operation.
A similar suffix must not replace Honeywell CC-PAOX01 51405039-275 until Honeywell documentation and site records confirm the hardware revision, electrical role, companion assembly, firmware and application compatibility.
Provide the complete Honeywell CC-PAOX01 51405039-275 nameplate, revision, serial number, installed Experion release, companion hardware, quantity, destination and a clear description of the required application.
Send the complete Honeywell model, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
