Honeywell CC-TAID01 51306733-175 16-Channel Differential Analog Input IOTA
CC-TAID01 51306733-175
16-Channel Differential Analog Input IOTA · 16-Channel Differential Analog Input IOTA for Honeywell Experion PKS Series C I/O
Lifecycle note: Use the unit nameplate and current Honeywell documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 1535940827516-Channel Differential Analog Input IOTA · Honeywell Experion PKS Series C I/O

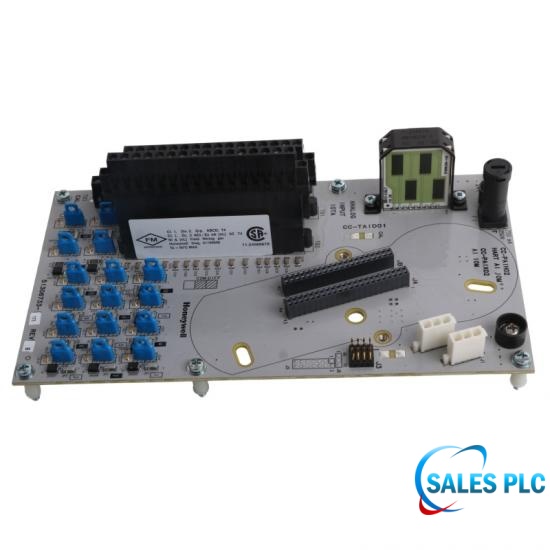

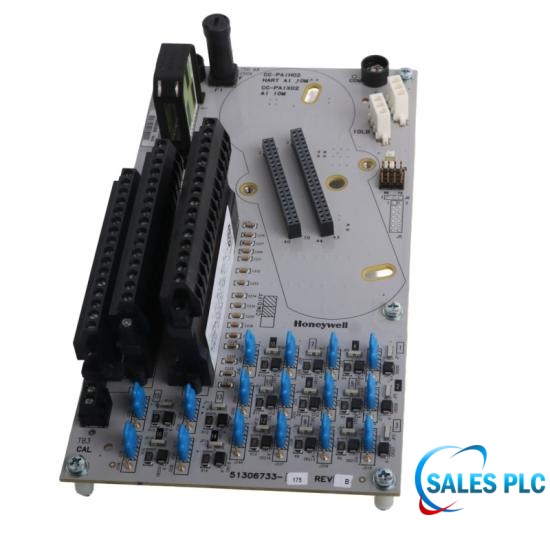

Honeywell CC-TAID01 51306733-175 is a non-redundant Series C I/O termination assembly for sixteen differential high-level analog input channels. It provides the permanent field terminals and the physical interface for a compatible plug-in analog input module.
Honeywell associates CC-TAID01 with CC-PAIH02 for HART-capable input or CC-PAIX02 for non-HART input, depending on the installed design. The IOTA supports differential channel allocation across inputs 1 through 16.
Keeping field wiring on the IOTA allows the electronics module to be serviced without relocating every loop conductor. Signal type, transmitter power, shielding, grounding and channel configuration remain application-specific.

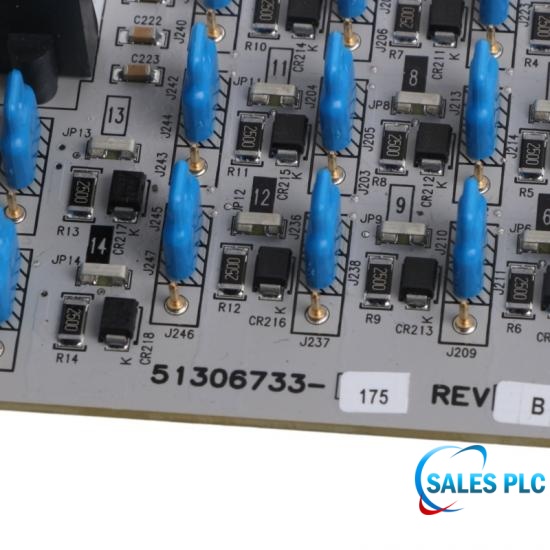

Before replacing CC-TAID01 51306733-175, match the complete order number, 9-inch form, companion IOM, terminal map, HART requirement, field-power arrangement and Experion database.
| Manufacturer | Honeywell |
|---|---|
| Model | CC-TAID01 51306733-175 |
| Product type | Differential Analog Input IOTA |
| System family | Experion PKS Series C I/O |
| Input channels | 16 differential channels |
| Redundancy | Non-redundant |
| IOTA size | 9 inches |
| Compatible IOMs | CC-PAIH02 and CC-PAIX02 |
| Input types | Voltage; current from 2-wire or self-powered transmitters |
| Input ranges | 0–5 V; 1–5 V; 0.4–2 V; 4–20 mA through 250 Ω |
| A/D converter resolution | 16 bits |
| Common-mode rejection | 70 dB, DC to 60 Hz with 500 Ω source imbalance |
| Common-mode voltage | -6 to +5 V peak, DC to 60 Hz |
| Normal-mode rejection | 19 dB at 60 Hz |
| Normal-mode filter | Single-pole RC, -3 dB at 6.5 Hz |
| Maximum differential input | ±30 V without damage |
| Channel crosstalk | -60 dB, DC to 60 Hz |
| Voltage input impedance | >10 MΩ powered |
| Input scan rate | 50 ms |
| Hardware accuracy | ±0.075% of full scale at 23.5 ±2°C |
Use the installed-unit nameplate, current Honeywell documentation and approved site records as the final references.
Honeywell CC-TAID01 51306733-175 is a non-redundant nine-inch Series C IOTA for sixteen differential analog input channels.
Honeywell CC-TAID01 51306733-175 terminates sixteen differential analog field loops and connects them to the approved Series C high-level analog input module.
Honeywell CC-TAID01 51306733-175 is documented with CC-PAIH02 for HART-capable input or CC-PAIX02 for non-HART input, subject to the installed configuration.
Honeywell CC-TAID01 51306733-175 provides differential allocation for analog input channels 1 through 16 in a non-redundant nine-inch IOTA form.
Match Honeywell CC-TAID01 51306733-175 with the exact IOM, HART requirement, signal range, transmitter power, terminal map and Experion channel configuration.
Before installing Honeywell CC-TAID01 51306733-175, verify the complete nameplate, hardware revision, mounting or carrier arrangement, field wiring, power, grounding and the approved Experion PKS configuration.
Commission Honeywell CC-TAID01 51306733-175 under the approved site procedure. Prove the configured function, field connections, diagnostics and controller response before returning the affected process or network service to operation.
A similar suffix must not replace Honeywell CC-TAID01 51306733-175 until Honeywell documentation and site records confirm the hardware revision, electrical role, companion assembly, firmware and application compatibility.
Provide the complete Honeywell CC-TAID01 51306733-175 nameplate, revision, serial number, installed Experion release, companion hardware, quantity, destination and a clear description of the required application.
Send the complete Honeywell model, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
