CC-TAON01 51306519-175
16-Channel Non-HART Analog Output IOTA · 16-Channel Non-HART Analog Output IOTA for Honeywell Experion PKS Series C I/O
Lifecycle note: Use the unit nameplate and current Honeywell documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 1535940827516-Channel Non-HART Analog Output IOTA · Honeywell Experion PKS Series C I/O

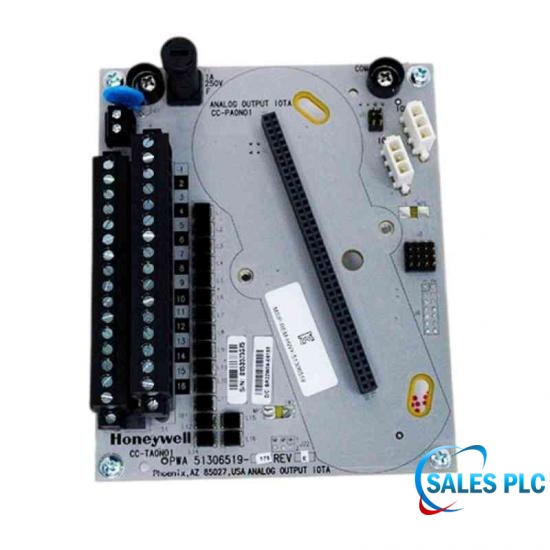

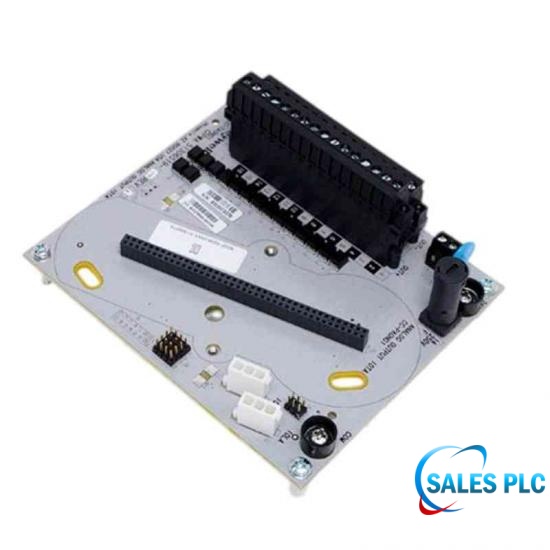

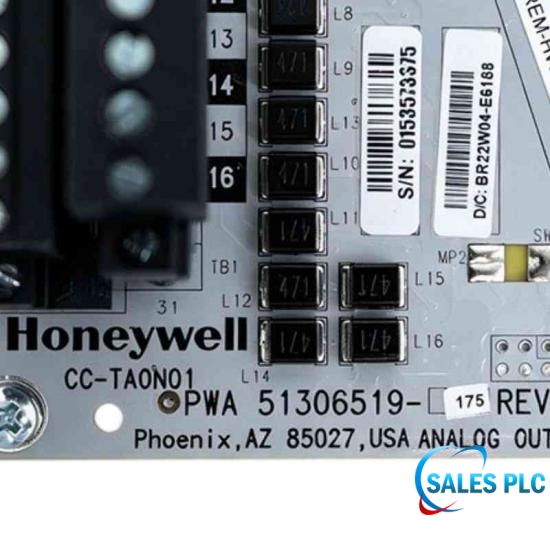

Honeywell CC-TAON01 51306519-175 is the six-inch non-redundant IOTA for the CC-PAON01 Series C analog output module. It provides the permanent field terminals for sixteen non-HART 4–20 mA output loops.
The associated output module drives constant-current signals for valve positioners, drive references and compatible indicators. Honeywell data lists an 800 ohm maximum resistive load with a 22–28 VDC supply and calibrated accuracy of ±0.35% of full scale at 25 °C.
CC-TAON01 separates field wiring from the replaceable electronics and supports output readback, open-wire diagnostics and configured safe-state behavior through the companion module.
Before replacement, verify the complete 51306519-175 suffix, CC-PAON01 module, loop supply, burden, terminal polarity, channel database and FAILOPT settings.
| Manufacturer | Honeywell |
|---|---|
| Complete model | CC-TAON01 51306519-175 |
| Product type | Non-Redundant Analog Output I/O Termination Assembly |
| System family | Honeywell Experion PKS Series C I/O |
| IOTA arrangement | Non-redundant |
| Nominal size | 6 inches |
| Compatible IOM | CC-PAON01 |
| Output channels | 16 |
| Output signal | 4–20 mA |
| Maximum resistive load | 800 ohms with 22–28 VDC supply |
| Calibrated accuracy | ±0.35% of full scale at 25 °C |
| Linearity | ±0.05% of full scale |
| Resolution | ±0.05% of full scale |
| Output ripple | Less than 100 mV peak-to-peak across 250 ohms |
| Temperature drift | 0.005% of full scale per °C |
| Settable output range | 0 mA or 2.9–21.1 mA |
Use the installed-unit nameplate, current Honeywell documentation and approved site records as the final references.
Honeywell CC-TAON01 51306519-175 is a six-inch non-redundant Series C termination assembly for sixteen non-HART analog outputs.
Honeywell CC-TAON01 51306519-175 terminates sixteen 4–20 mA loops and provides the physical interface between field devices and the CC-PAON01 output module.
Honeywell CC-TAON01 51306519-175 is used for non-redundant modulating outputs to valve positioners, drives and compatible indicating devices in Experion PKS.
Honeywell documents sixteen 4–20 mA channels, up to 800 ohms load with 22–28 VDC supply, ±0.35% calibrated accuracy at 25 °C and 0.005% full-scale drift per °C.
Honeywell CC-TAON01 51306519-175 is paired with the CC-PAON01 non-HART analog output module; loop power and channel configuration must match.
Before installing Honeywell CC-TAON01 51306519-175, verify the complete order number, hardware revision, mounting arrangement, field wiring, power, grounding and approved system configuration.
Commission Honeywell CC-TAON01 51306519-175 under the approved site procedure. Prove the configured function, connected circuits, diagnostics and controller response before returning the affected service to operation.
A similar suffix must not replace Honeywell CC-TAON01 51306519-175 until current manufacturer documentation and site records confirm electrical, mechanical, firmware and application compatibility.
Provide the complete Honeywell CC-TAON01 51306519-175 nameplate, revision, serial number, installed system release, companion hardware, quantity, destination and application details.
Send the complete Honeywell model, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
