FC-BKM-0001
Battery and Keyswitch Module · Battery and Keyswitch Module for Honeywell Safety Manager
Lifecycle note: Use the unit nameplate and current Honeywell documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Battery and Keyswitch Module · Honeywell Safety Manager

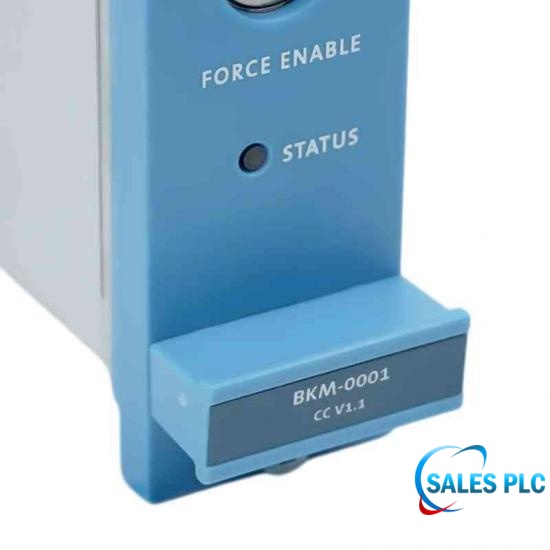

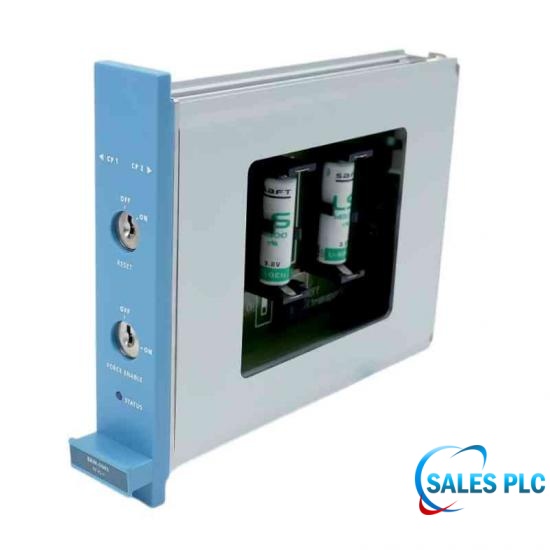

Honeywell FC-BKM-0001 is the Battery and Keyswitch Module used in Safety Manager hardware. It combines supply supervision and battery-backed functions with the keyswitch interface required by the supported safety-system configuration.
Honeywell specifies dual 24 VDC inputs at −15% to +30%, with 20 mA maximum current from each input and approximately 7 mA typical when shared. A 5VR input accepts 5 VDC ±10% at 10 mA maximum.

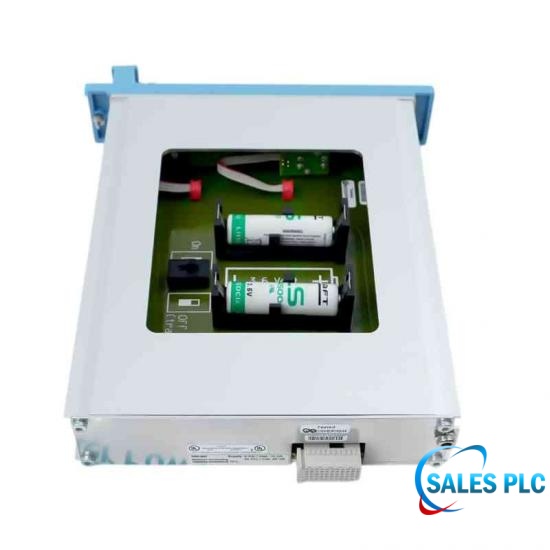

The +24V_red output is rated 14–31 VDC and is continuously short-circuit proof. The documented backup cell is a SAFT LS14500CFG lithium-thionyl-chloride battery rated 3.6 V nominal and greater than 2 Ah.
Before replacing FC-BKM-0001, verify Safety Manager release, supply wiring, keyswitch wiring, battery condition and maintenance procedure. Battery handling and proof testing must follow the Honeywell safety manual and site lifecycle process.
| Manufacturer | Honeywell |
|---|---|
| Complete model | FC-BKM-0001 |
| Product type | Safety Manager Battery and Keyswitch Module |
| System family | Honeywell Safety Manager |
| Module designation | BKM-0001 |
| Honeywell order code | FC-BKM-0001 |
| Operating temperature | −5 to +70 °C |
| Storage temperature | −40 to +85 °C |
| Relative humidity | 10–95%, non-condensing |
| 24 VDC input range | 24 VDC −15% / +30% |
| 24 V current | 20 mA maximum from each 24 VDC input; 7 mA typical shared |
| 5VR input | 5 VDC ±10%, 10 mA maximum |
| +24V_red output | 14–31 VDC |
| Output resistance | Approximately two 1.1 kohm resistors in parallel |
| Short-circuit protection | Continuous |
| Battery type | SAFT LS14500CFG lithium thionyl chloride |
| Battery rating | 3.6 V nominal, greater than 2 Ah |
| Approvals | CE, TÜV, UL, CSA and FM |
Use the installed-unit nameplate, current Honeywell documentation and approved site records as the final references.
Honeywell FC-BKM-0001 is the Battery and Keyswitch Module used in the Safety Manager hardware platform.
Honeywell FC-BKM-0001 supervises redundant supply inputs, provides the documented +24V_red output and carries the supported keyswitch and backup-battery functions.
Honeywell FC-BKM-0001 is installed in Safety Manager cabinets where the approved battery, supply-monitoring and keyswitch functions are required.
Honeywell specifies 24 VDC −15%/+30%, 20 mA maximum from each 24 V input, 5 VDC ±10% on 5VR, a 14–31 VDC +24V_red output and a 3.6 V battery above 2 Ah.
Honeywell FC-BKM-0001 uses the documented SAFT LS14500CFG battery and must match the Safety Manager cabinet wiring, system release and maintenance procedure.
Before installing Honeywell FC-BKM-0001, verify the complete order number, hardware revision, mounting arrangement, field wiring, power, grounding and approved system configuration.
Commission Honeywell FC-BKM-0001 under the approved site procedure. Prove the configured function, connected circuits, diagnostics and controller response before returning the affected service to operation.
A similar suffix must not replace Honeywell FC-BKM-0001 until current manufacturer documentation and site records confirm electrical, mechanical, firmware and application compatibility.
Provide the complete Honeywell FC-BKM-0001 nameplate, revision, serial number, installed system release, companion hardware, quantity, destination and application details.
Send the complete Honeywell model, revision, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
