Network Interface Slave Module | INNIS11 | ABB

Technical Specifications

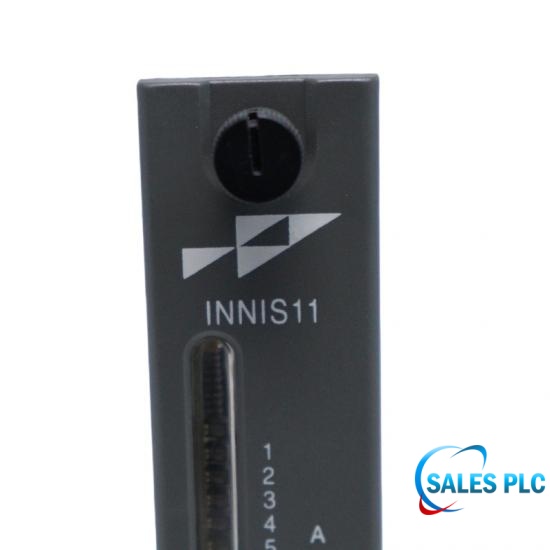

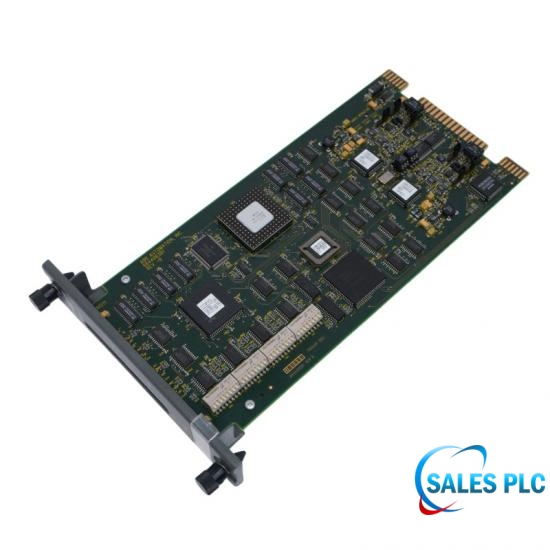

The INSEM01 Sequence of Events Master module communicates with the INNIS11 Network Interface module and the INTKM01 Time Keeper Master module. The INNIS11 module is the front end for all Cnet (control network) communication interfaces and is the intelligent link between a node and Cnet. Built into a standard modular chassis, the INNIS11 plugs into the modular mounting unit and operates with minimal configuration. It provides critical network routing and management functions for slave devices, effectively connecting them to control units and operator stations.

Troubleshooting & Comissioning Checklist

Grounding Check: Ensure the rack chassis has a solid low-impedance electrical grounding connection to protect against RFI.
Termination Unit Cable: Verify the connection of the NTDI01/02 or NTLI01 termination cables to the rear of the MMU rack slot.
Redundancy Link: If utilizing a redundant pair, verify the dedicated redundancy cable connects the primary and backup INNIS11 modules.

Field Engineering Considerations

Bus Communication: Map local data transfers exclusively via the internal cabinet Controlway. The module uses this backplane bus to speak directly to rack-mounted controllers.
Cabinet Selection: Mount the hardware inside a certified ABB Industrial Cabinet using an IEMMU module mounting unit. Enclosed spaces prevent accidental contact with energized terminal blocks.
Circuit Care: Avoid touching any onboard surface circuitry or exposed connector pins during physical placement to safeguard sensitive micro-components.

Technical FAQ

Q: What does the INNIS11 module actually do?
A: The INNIS11 acts as an intelligent communication gateway. It offloads high-speed network communication tasks from the main node controller, ensuring that complex process control data is reliably transmitted and received across the plant-wide data highway without disrupting real-time control loops.

A: The module features 16 LEDs on its front panel. During normal operation, they display real-time network traffic status and node activity. During a fault, these LEDs halt on specific binary or patterned configurations to show explicit hardware error codes, microprocessor faults, or loop communication failures.

A: While the hardware architecture allows for rack replacement, pulling a non-redundant network interface module will instantly sever that node's communication with the rest of the DCS. If the node is set up with a redundant pair, a failover should occur automatically, but standard electrical and plant safety protocols outlined in the ABB Control Systems Library must always be strictly followed.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
