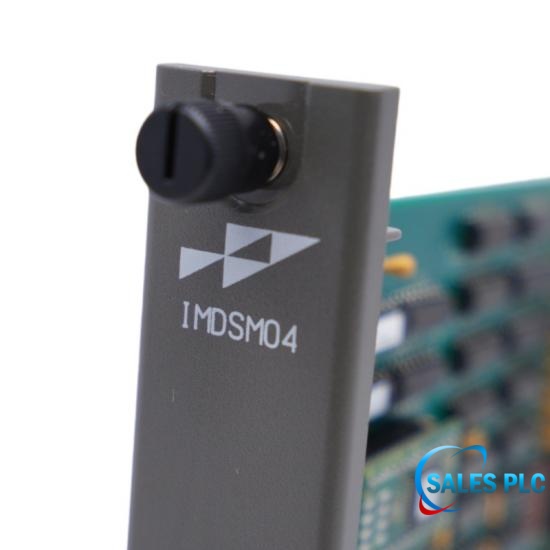

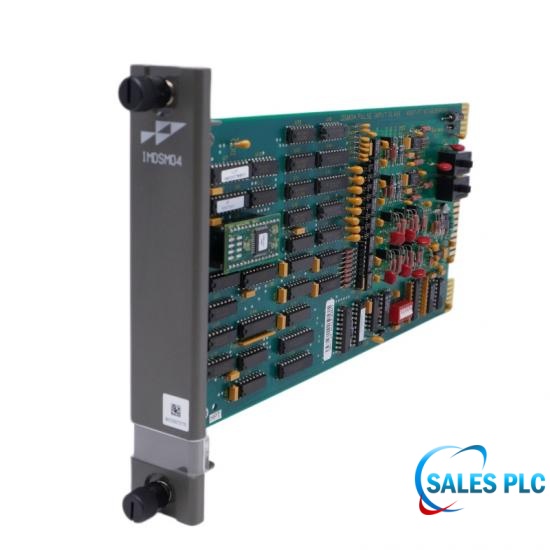

Pulse Input Slave Module | IMDSM04 | ABB

Technical Specifications

The Pulse Input Slave Module (IMDSM04) brings eight separate pulse signals into the Infi 90 system for processing and monitoring. It interfaces process field inputs with the Infi 90 Process Management System. Master modules provide the control functions; slave modules provide I/O to the master modules. Pulse inputs for the IMDSM04 may be low level amplitude pulses, sinewaves, logic level pulses, or contact closures into digital signals. Examples are: turbine flowmeters, tachometers, Wattmeters, proximity sensors and counters.

Troubleshooting & Comissioning Checklist

Dipswitch Settings: Set the module address dipswitch according to your DCS system configuration architecture.
ESD Precautions: Use anti-static toolkits during handling to avoid damaging the module.
Module Capacity: Verify that no more than 20 IMDSM04 modules are assigned to a single multi-function controller due to high power consumption.

Field Engineering Considerations

Operational Modes: Every channel supports three unique modes: totalization/accumulation (FC104), frequency counting (FC103), or period/pulse counting (FC102).
Optical Isolation: Inputs are optically isolated. This prevents high-voltage field spikes or ground loops from migrating to the master controller rack backplane.
Frequency Performance: The module tracks frequency ranges up to 50 kHz with a 16-bit resolution, with a rapid response window between 20 microseconds and 655k seconds.

Technical FAQ

Q: What is the primary function of the IMDSM04?
A: It monitors up to eight independent pulse or frequency input channels from field process devices. It handles tasks like totalization (Function Code 104), frequency counting (FC 103), or standard pulse counting (FC 102).

A: Each of the 8 channels can be individually configured into one of three operational modes: Accumulation, Frequency, or Period.

A: Yes, all input signals are optically isolated to ensure high data reliability and protect control circuitry from field-side electrical surges.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
