21000-16-10-15-102-03-02

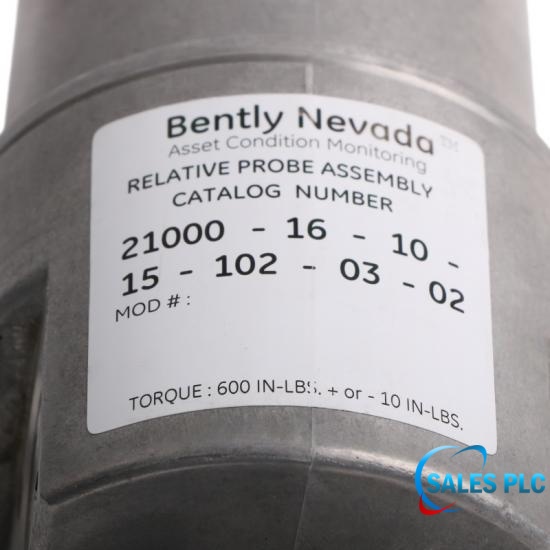

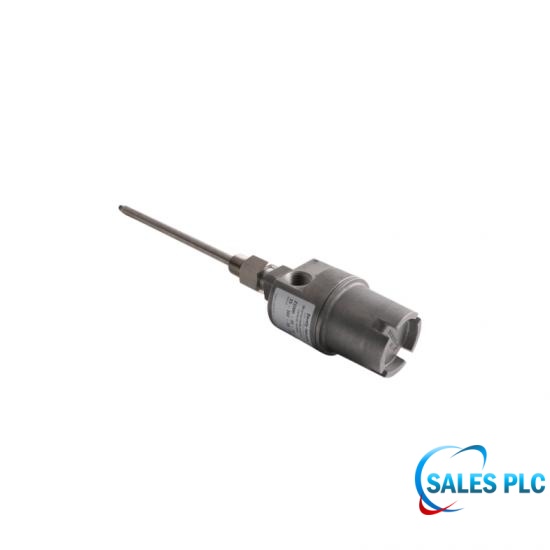

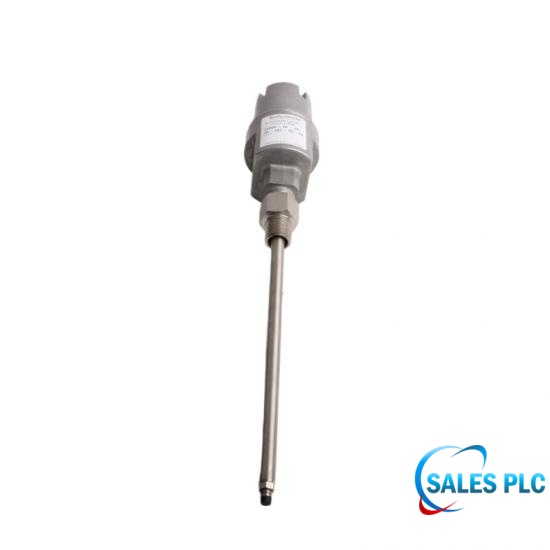

21000-16-10-15-102-03-02 is a Bently Nevada 21000 aluminum proximity-probe housing assembly for external probe mounting. 21000-16-10-15-102-03-02 is ordered with 3300 XL 8 mm reverse-mount probe, 1.0 m (39 in) integral probe cable, 1.5 in (38 mm) standoff adapter, 10.2 in (nominal 259 mm) probe penetration, one 3/4-14 npt plug, one 3/4-14 to 1/2-14 npt reducer, and one cable seal grip with three grommet size ranges, and 3/4-14 NPT mounting thread. 21000-16-10-15-102-03-02 includes the housing hardware and a reverse-mount probe, but 21000-16-10-15-102-03-02 does not by itself include the matching extension cable, Proximitor Sensor, or monitor required for a complete measurement chain.
Scope note: 21000-16-10-15-102-03-02 includes the aluminum housing, 304 stainless-steel sleeve, associated housing hardware, and reverse-mount probe. 21000-16-10-15-102-03-02 does not include a matched extension cable, Proximitor Sensor, monitor, or field wiring.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Officially decoded 21000 housing assembly with the included probe and complete-system boundary stated explicitly.
21000-16-10-15-102-03-02 decodes to 3300 XL 8 mm reverse-mount probe, 1.0 m (39 in) integral probe cable, 1.5 in (38 mm) standoff adapter, 10.2 in (nominal 259 mm) probe penetration, one 3/4-14 npt plug, one 3/4-14 to 1/2-14 npt reducer, and one cable seal grip with three grommet size ranges, and 3/4-14 NPT mounting thread.
21000-16-10-15-102-03-02 includes the aluminum housing, 304 stainless-steel sleeve, associated housing hardware, and reverse-mount probe. 21000-16-10-15-102-03-02 does not include a matched extension cable, Proximitor Sensor, monitor, or field wiring.
11.7 in (nominal 297 mm) combined standoff plus probe penetration does not exceed the 12 in threshold stated in the official datasheet; final installation geometry for 21000-16-10-15-102-03-02 must still be checked. 21000-16-10-15-102-03-02 uses the standard 3300 XL 8 mm probe option. The 21000-16-10-15-102-03-02 prefix is 21000, not CA21000, so 21000-16-10-15-102-03-02 must not be described as a CSA explosion-proof housing.
| Model / part number | 21000-16-10-15-102-03-02 |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product family | 21000 Proximity Probe Housing Assembly |
| Primary use | External mounting and mechanical protection of a reverse-mount proximity probe |
| Housing body | Aluminum |
| Probe sleeve | 304 stainless steel |
| Typical mass | 1.1 kg (2.4 lb), without fittings |
| Included probe option | 3300 XL 8 mm reverse-mount probe |
| Integral probe cable | 1.0 m (39 in) integral probe cable |
| Standoff adapter | 1.5 in (38 mm) standoff adapter |
| Probe penetration | 10.2 in (nominal 259 mm) probe penetration |
| Combined C plus D dimension | 11.7 in (nominal 297 mm) combined standoff plus probe penetration |
| Sleeve-support requirement | C plus D does not exceed the official 12 in support threshold; verify final installation geometry |
| Fittings | One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip with three grommet size ranges |
| Mounting thread | 3/4-14 NPT mounting thread |
| Approval boundary | Standard probe option; no hazardous-area approval is established by this option code alone; 21000 is not the CA21000 CSA explosion-proof housing prefix |
| Official source | Baker Hughes / Bently Nevada datasheet 141600 Rev. AC |
| Complete-system Included in the ordered assembly | 21000-16-10-15-102-03-02 includes a 21000 housing assembly and the ordered reverse-mount 3300 XL 8 mm probe. |
| Complete-system Not included | 21000-16-10-15-102-03-02 does not by itself include a matching extension cable, Proximitor Sensor, monitor, or field wiring. |
| Complete-system Measurement performance | Do not assign complete-system linear range, scale factor, or frequency response to 21000-16-10-15-102-03-02 alone; those values apply only after 21000-16-10-15-102-03-02 is combined with the correctly matched 3300 XL 8 mm transducer-system components under the applicable system datasheet. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
21000-16-10-15-102-03-02 is a Bently Nevada 21000 aluminum proximity-probe housing assembly for externally mounting the included reverse-mount probe.
21000-16-10-15-102-03-02 specifies 3300 XL 8 mm reverse-mount probe, 1.0 m (39 in) integral probe cable, 1.5 in (38 mm) standoff adapter, 10.2 in (nominal 259 mm) probe penetration, one 3/4-14 npt plug, one 3/4-14 to 1/2-14 npt reducer, and one cable seal grip with three grommet size ranges, and 3/4-14 NPT mounting thread.
21000-16-10-15-102-03-02 includes a 3300 XL 8 mm reverse-mount probe with 1.0 m (39 in) integral probe cable.
21000-16-10-15-102-03-02 specifies 1.5 in (38 mm) standoff adapter and 10.2 in (nominal 259 mm) probe penetration, giving 11.7 in (nominal 297 mm) combined standoff plus probe penetration.
21000-16-10-15-102-03-02 is supplied with one 3/4-14 npt plug, one 3/4-14 to 1/2-14 npt reducer, and one cable seal grip with three grommet size ranges and a 3/4-14 NPT mounting thread.
No. 21000-16-10-15-102-03-02 includes the housing and reverse-mount probe, but 21000-16-10-15-102-03-02 does not include the matching extension cable, Proximitor Sensor, monitor, or field wiring needed for a complete measurement chain.
11.7 in (nominal 297 mm) combined standoff plus probe penetration does not exceed the 12 in threshold stated in the official datasheet; final installation geometry for 21000-16-10-15-102-03-02 must still be checked.
21000-16-10-15-102-03-02 uses the standard 3300 XL 8 mm probe option. The 21000-16-10-15-102-03-02 prefix is 21000, not CA21000, so 21000-16-10-15-102-03-02 must not be described as a CSA explosion-proof housing.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
