22810-00-10-10-02 Bently Nevada 7200 8 mm Probe
22810-00-10-10-02

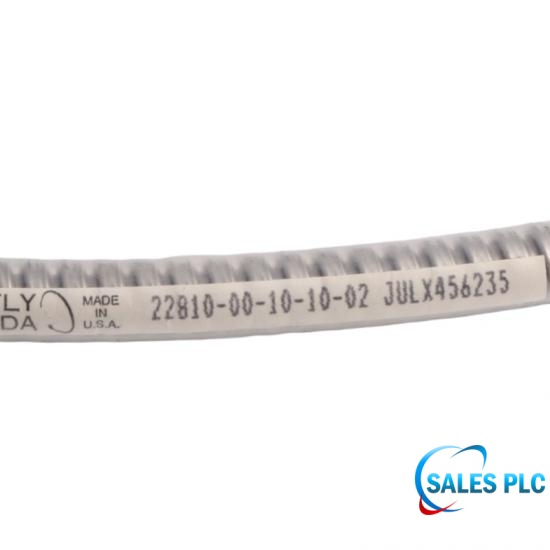

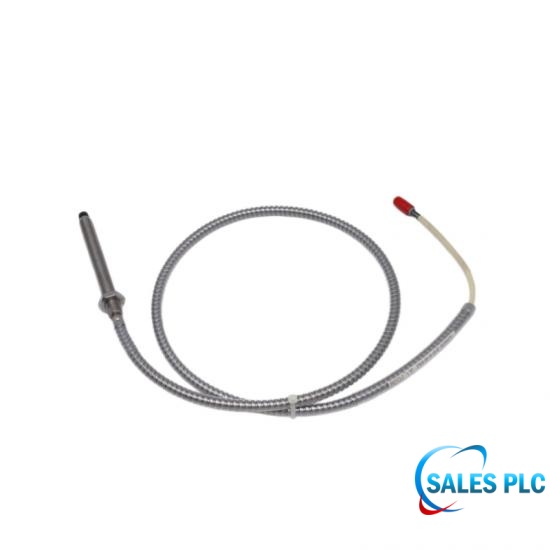

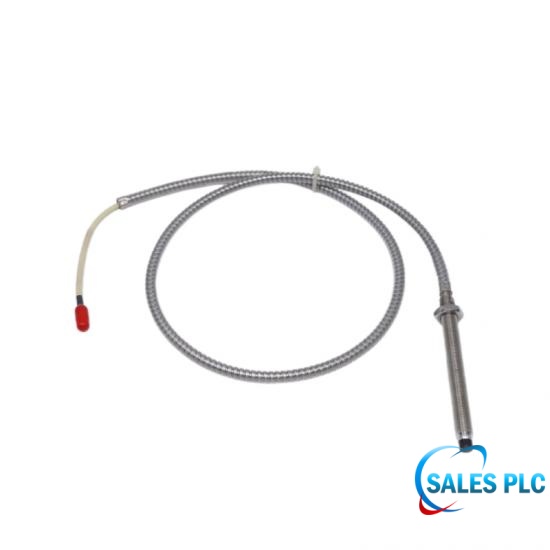

22810-00-10-10-02 is a legacy Bently Nevada 7200 8 mm standard-mount metric proximity probe. 22810-00-10-10-02 has an M10x1 case thread, stainless-steel lead armor, 0 mm unthreaded length, 100 mm overall case length, a 1.0 m integral lead and a miniature male coaxial connector. 22810-00-10-10-02 is the probe component only, not a complete proximity transducer system; it requires the matching 21747 extension cable where applicable and the correctly calibrated 18745 Proximitor.
Scope note: 22810-00-10-10-02 does not include an extension cable, Proximitor, monitor or field wiring. Complete-system range, scale factor, linearity and frequency response must not be assigned to 22810-00-10-10-02 alone.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Exact legacy OEM ordering identity with component and complete-system performance boundaries clearly separated.
22810-00-10-10-02 decodes exactly from the 22810 row and the 00, 10, 10 and 02 options in Bently Nevada L5001.
22810-00-10-10-02 has a nominal 1 m lead. Use the compatible 21747 extension cable and 18745 Proximitor whose electrical lengths create the required 5 m or 9 m chain.
22810-00-10-10-02 does not include an extension cable, Proximitor, monitor or field wiring. Complete-system range, scale factor, linearity and frequency response must not be assigned to 22810-00-10-10-02 alone.
| Manufacturer | Bently Nevada Corporation |
|---|---|
| Part number | 22810-00-10-10-02 |
| Lifecycle | Legacy 7200-series component |
| Component | 8 mm metric standard-mount proximity probe |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Case thread | M10x1 |
| Lead armor | Stainless steel |
| Unthreaded length | 0 mm |
| Overall case length | 100 mm |
| Integral lead length | 1.0 m (39 in), +0.25 m/-0.10 m (+10 in/-4 in) |
| Connector | Miniature male coaxial connector |
| Operating temperature | -34 to +177 deg C (-30 to +350 deg F) |
| Hazardous-area boundary | L5001 does not encode an exact approval option in this displayed MPN; verify the installed nameplate and certificate set |
| Required companion components | Compatible 21747 extension cable where required and the correctly calibrated 18745 Proximitor |
| Not included | Extension cable, Proximitor, monitor and field wiring |
| Manufacturer source | Bently Nevada L5001 (04/90), OEM ordering literature archived by NASA NTRS |
| Complete-system Required chain | 22810-00-10-10-02 must be used with a compatible 7200 probe, extension cable where required, and 18745 Proximitor whose lengths form the specified 5 m or 9 m system. |
| Complete-system Calibrated range | 2.0 mm (80 mil), beginning at approximately 0.25 mm (10 mil) from the probe face |
| Complete-system Scale factor | 7.87 V/mm (200 mV/mil), +/-4% when calibrated as a system; within +/-9.5% including interchangeability error |
| Complete-system Linearity | Within 0.02 mm (0.8 mil) when calibrated as a system; within 0.06 mm (2.3 mil) including interchangeability error |
| Complete-system Frequency response | 0 to 10 kHz; -5% at 10 kHz |
| Complete-system Measurement principle | Non-contacting eddy-current, gap-to-voltage displacement measurement |
| Complete-system Legacy monitor compatibility | The OEM literature identifies complete 7200 systems as compatible with 3300 and 9000 Monitoring Systems |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
22810-00-10-10-02 is a legacy Bently Nevada 7200 8 mm metric standard-mount proximity probe. 22810-00-10-10-02 is one component of a matched transducer chain.
22810-00-10-10-02 uses the OEM-listed M10x1 standard-mount metric case thread.
22810-00-10-10-02 uses the 22810 base configuration, which the OEM table identifies with stainless-steel lead armor.
22810-00-10-10-02 uses option 00 for 0 mm unthreaded length and option 10 for 100 mm overall case length.
22810-00-10-10-02 has a 1.0 m integral lead with +0.25 m/-0.10 m tolerance and a miniature male coaxial connector.
22810-00-10-10-02 cannot operate as a complete transducer by itself. 22810-00-10-10-02 requires a compatible 21747 extension cable where needed and the correctly calibrated 18745 Proximitor.
22810-00-10-10-02 alone does not guarantee a 2 mm range. The OEM system range, scale factor, linearity and frequency response apply only when 22810-00-10-10-02 is installed in the correctly matched complete 7200 system.
When replacing 22810-00-10-10-02, verify the full 22810-00-10-10-02 nameplate, M10x1 mounting, 100 mm case, 1.0 m lead, connector, extension-cable length, Proximitor calibration and approval documentation.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
