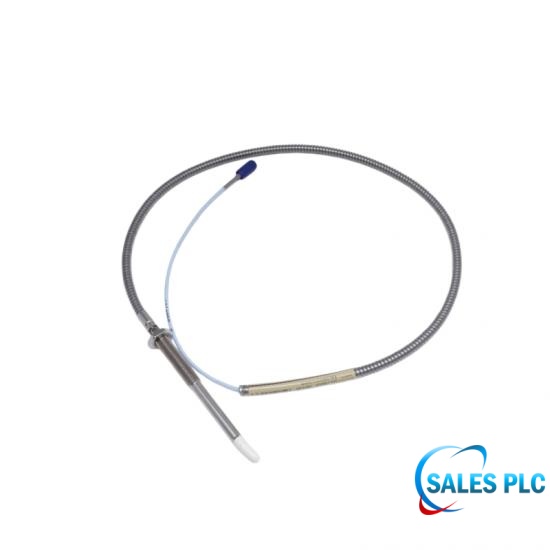

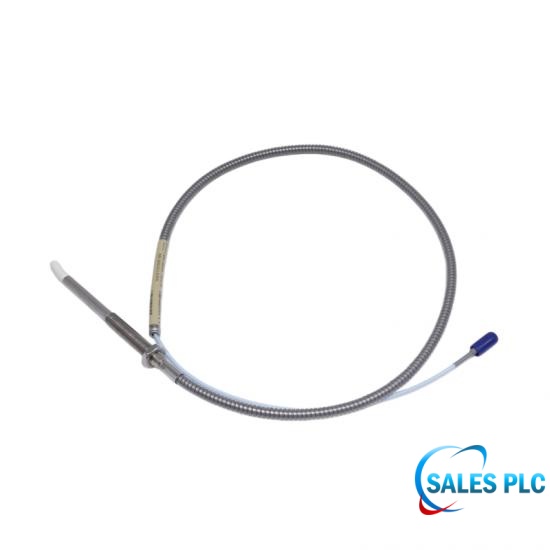

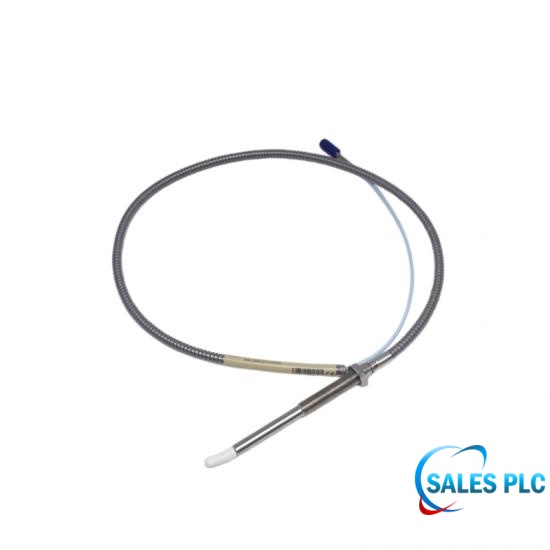

3300 NSv Proximity Probe | 330910-05-10-02-00 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Technical Specifications
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
|
Manufacturer: |
Bently Nevada |
|
Article number: |
330910-05-10-02-00 |
|
Type: |
3300 NSv Proximity Probe |
|
Unthreaded Length Option: |
0 mm |
|
Overall Case Length Option: |
50 mm |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10X1 thread |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
2x66x1.6cm |
|
Weight: |
0.1kg |
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Environmental Safety Application Restrictions
Explosion-proof Restriction: The -00 at the end indicates no institutional certification. This means that this probe cannot be directly used in intrinsically safe or explosion-proof areas containing explosive gases or dust. It is only suitable for general industrial safety environments, or must be used in conjunction with a physical barrier.
Quick Fault Diagnosis (Multimeter Resistance Measurement)
Normal Resistance: Approximately 4.0 Ω ~ 5.5 Ω between the center pin and the outer shielding layer.
Fault Diagnosis: Infinite resistance (∞) indicates an open circuit; resistance approaching 0 Ω indicates a short circuit.
Technical FAQ
Q: What do the “-05” and “-10” codes represent in 330910-05-10-02-00 regarding probe housing dimensions?
A: “-05” represents an unthreaded length of 50 mm; “-10” represents an overall case length of 100 mm.
Q: Does 330910-05-10-02-00 provide protection for harsh oil-contaminated environments?
A: Yes. The base 330910 model uses an M10 x 1 thread and stainless steel armored cable, providing resistance to abrasion and industrial fluid exposure.
Q: What do the “-02” specifications indicate in 330910-05-10-02-00?
A: “-02” indicates a 0.5 m (20 in) integral cable and a ClickLoc gold-bronze micro coax connector with anti-loosening locking design.
Q: What does the “-00” suffix mean in 330910-05-10-02-00?
A: It indicates no specific third-party certification requirement.
Q: Why does 330910-05-10-02-00 produce inaccurate output on non-AISI 4140 steel shafts?
A: Because the system is factory-calibrated for AISI 4140 steel; different alloys change conductivity and permeability, affecting gap voltage output.
Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.
Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.
Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
Trusted by 5,000+ plants worldwide | Contact for more Bently Nevada spares: sales1@amikon.cn
