3300 XL 11 mm Proximity Probes | 330704-00-100-10-01-05 | Bently Nevada

Technical Specifications

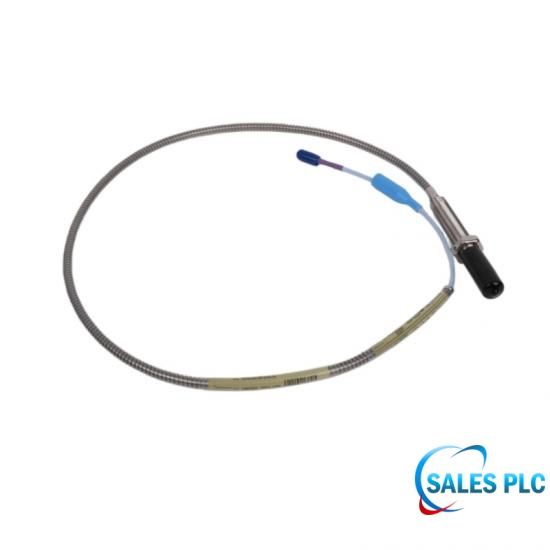

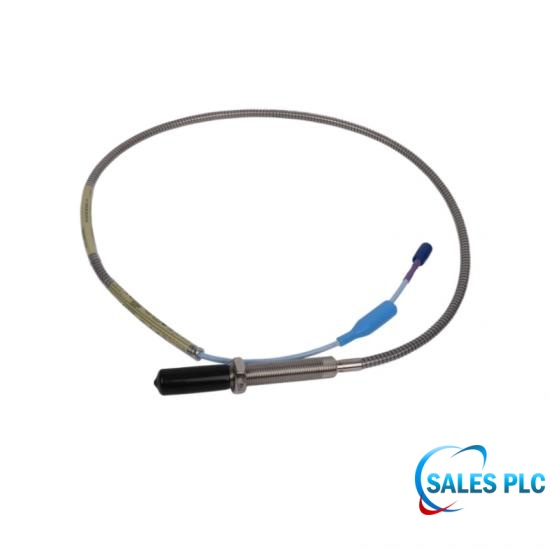

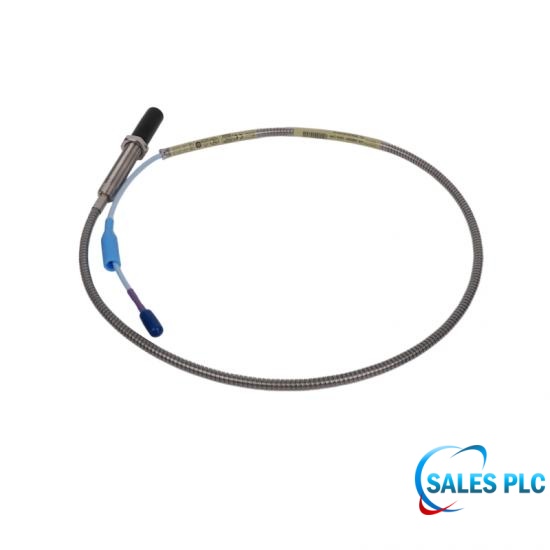

The Bently Nevada 3300 XL 11 mm Proximity Transducer System consists of: 3300 XL 11 mm probe, 3300 XL 11 mm extension cable, 3300 XL 11 mm Proximitor Sensor. The 3300 XL 11 mm Proximity Transducer System has a 3.94 V (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.

Cable Front End (Abrasion Protection): The built-in metal armor sheath prevents the cable from becoming brittle due to prolonged immersion in high-temperature lubricating oil inside the bearing housing, and protects against mechanical friction and chip scratches.

Cable Tail End (Oil Immersion Protection): The suffix 01 includes a connector protector that wraps around the mini coaxial connector like a diving suit. Even with abundant oil mist inside the bearing housing, it ensures the signal remains ungrounded, preventing the system from reporting a NOT OK error.

ClickLoc Mini Connector Physical and Mechanical Specifications

Tool-Free Interlocking Mechanism: When connecting the probe's included cable and a 4m/8m extension cable, simply align the two connectors and push them inwards firmly until you hear a clear "click," indicating that the internal gold-plated spring has perfectly locked in place.

Correct Installation of the Connector Protector: Do not force the protector onto the connector when it is dry. After connecting the connector, apply a small amount of silicone grease lubricant to the outside of the connector, then smoothly slide the rubber protective sleeve provided with the 01 connector over to cover the entire connector. If inside the bearing housing, it is recommended to tighten a high-temperature resistant nylon cable tie at each end of the protective sleeve to achieve 100% turbine oil blocking.

Technical FAQ

Q: What is the recommended maximum thread tightening torque for the 330704-00-100-10-01-05 during installation?
A: For this M14 metric housing, the maximum recommended tightening torque is 21.1 Nm.

Q: What are the advantages of the fluorinated ethylene propylene material used in the insulation layer of the 330704-00-100-10-01-05?
A: This material provides excellent acid and alkali resistance, chemical corrosion resistance, and high insulation protection for the internal coaxial cable.

Q: Is the 330704-00-100-10-01-05 electrically compatible and interchangeable with the older 7200 series 11mm probe?
A: No, they are not directly interchangeable because the impedance and electrical linearity characteristics of the 3300 XL preamplifier differ from the older series.

Q: What is the main field safety function of the stainless steel flexible armor layer included with the 330704-00-100-10-01-05?
A: The armor layer primarily provides strong physical protection for the internal coaxial cable against mechanical crushing, trampling, and tearing by sharp objects.

Q: Can the 330704-00-100-10-01-05 be extended to a standard 9-meter system by adding an extension cable?
A: Yes, it comes with a 1-meter extension cable; simply connect an additional 8-meter extension cable from the same series in series.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
