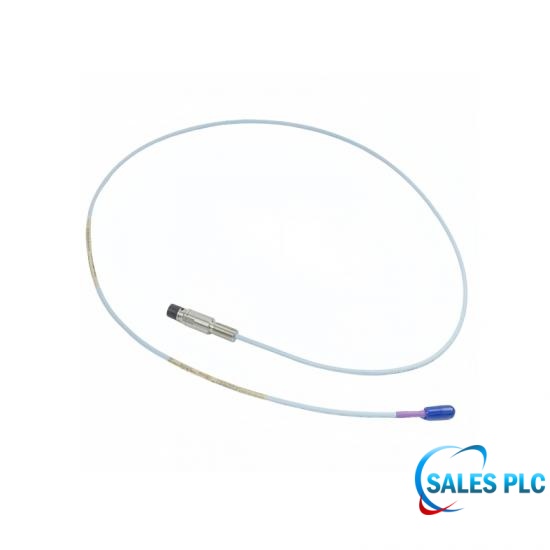

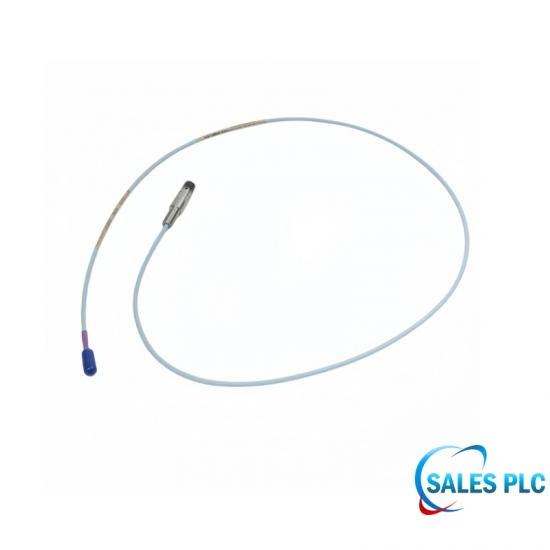

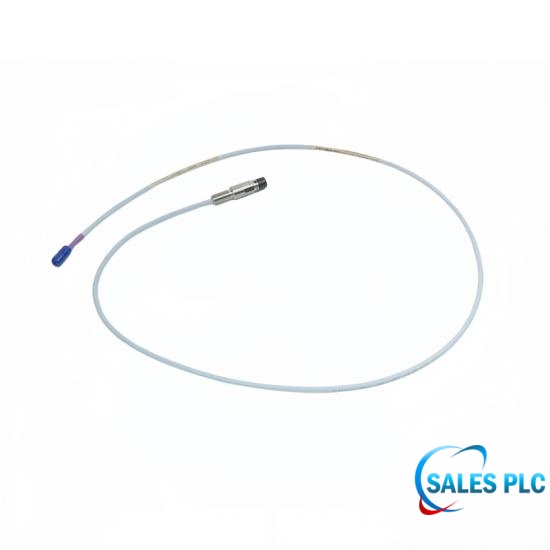

3300 XL 11 mm Reverse Mount Probe | 330706-05-046-10-02-00 | Bently Nevada

Technical Specifications

The Bently Nevada 3300 XL 11 mm Proximity Transducer System consists of: 3300 XL 11 mm probe, 3300 XL 11 mm extension cable, 3300 XL 11 mm Proximitor Sensor. The 3300 XL 11 mm Proximity Transducer System has a 3.94 V (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.

Physical Dimensions Identical: The physical dimensions and threads (M10x1) of the 330706 reverse-mount probe are exactly the same as the older 7200 series. It can be directly screwed into the existing mounting holes or sleeves without requiring remachining.

Electrical Components Must Be Replaced as a Set: Do not cross-use. Never connect the new 3300 XL probe to the old 7200 preamplifier. When replacing this probe, the original 7200 preamplifier and 7200 extension cable must be upgraded to the 3300 XL 11mm preamplifier and 3300 XL 11mm extension cable.

Voltage Locking Techniques During Unit Reinstallation

The standard mounting center point of the 11 mm probe is usually set at -10.0 Vdc (corresponding to a 2.5 mm gap). When screwing the probe in reverse, the slight adjustment of the thread gap during tightening of the lock nut can cause voltage jumps.

Empirical procedure: First, screw it in until the multimeter reads approximately -9.8 Vdc, then tighten it with a torque wrench. The thread deformation will bring the gap back to the standard -10.0 Vdc.

Technical FAQ

Q: To which classic sensor series does the 330706-05-046-10-02-00 belong?
A: It belongs to Bentley's most widely used 3300 XL 11mm eddy current proximity sensor system.

Q: What kind of industrial probe is the 330706-05-046-10-02-00?
A: It is a reverse-mount, non-contact, high-precision probe designed for narrow or enclosed spaces.

Q: What happens if the 330706-05-046-10-02-00 is used with other metals?
A: If the target is not 4140 steel, the system's measurement accuracy and linearity will deviate, requiring recalibration.

Q: What major faults in rotating machinery is the 330706-05-046-10-02-00 primarily used to prevent?
A: It is mainly used for real-time monitoring of the axial movement (shaft displacement) of the main shaft rotor and to prevent thrust bearing burnout.

Q: Can the 330706-05-046-10-02-00 be directly connected to a PLC via an extension cable?
A: No, its high-frequency raw impedance signal must first be input to the 3300 XL preamplifier to be converted into a voltage signal.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
