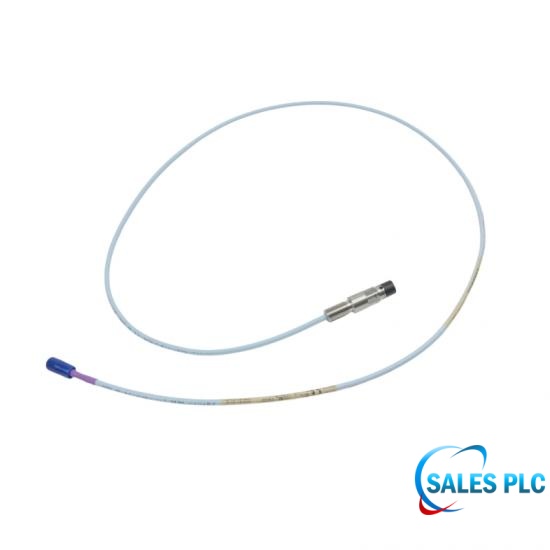

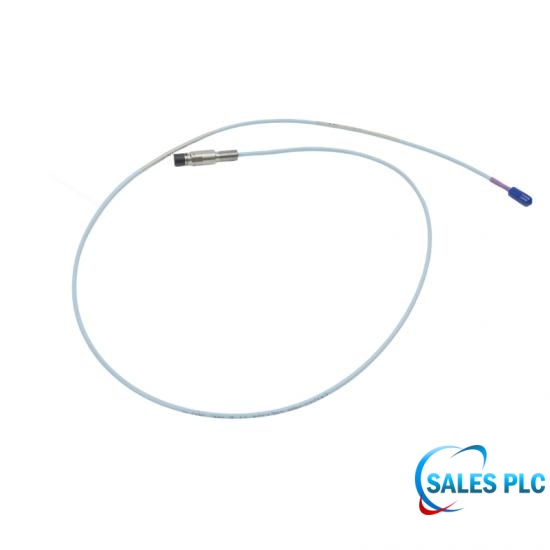

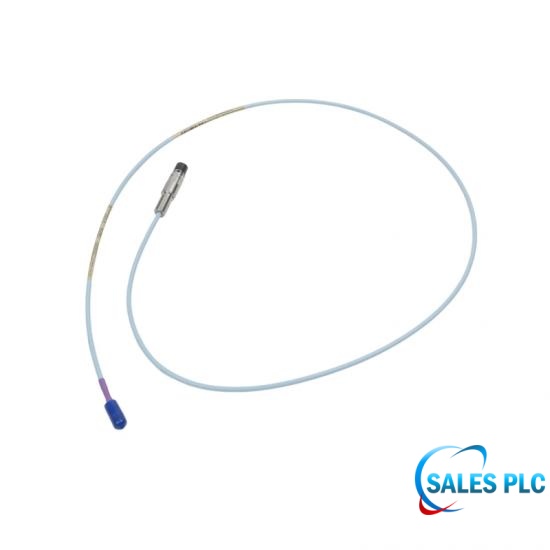

3300 XL 11 mm Reverse Mount Probe | 330706-05-46-10-02-00 | Bently Nevada

Technical Specifications

The Bently Nevada 3300 XL 11 mm Proximity Transducer System consists of: 3300 XL 11 mm probe, 3300 XL 11 mm extension cable, 3300 XL 11 mm Proximitor Sensor. The 3300 XL 11 mm Proximity Transducer System has a 3.94 V (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.

Thread Measurement: Measure the diameter of the housing thread with calipers. If it is 10 mm (M10×1 thread) and the probe tip is an 11 mm large plastic head, it can be confirmed as the 330706 reverse mounting series.

Tip Smooth Surface Measurement: Measure from the root of the plastic tip to the beginning of the thread; the length is approximately 12.7 mm.

Overall Rigid Length Measurement: Measure from the very tip of the plastic tip to the very end of the metal housing (excluding cable); the length is approximately 116.8 mm.

Ultimate Mechanical Performance

Differential Pressure Seal at the Probe Tip: The 3300 XL series probe tip is designed with extremely strong resistance to high-pressure penetration. Within its design life, it can leak-free withstand fluid differential pressures up to 7.0 bar.

Connector protection against loosening: The ClickLoc gold coaxial connector included with this model has a minimum cable tensile strength of 330 Newtons. As long as it is tightened according to the original Click tone, the high-frequency vibration caused by oil flow impact during unit operation will absolutely prevent it from loosening or falling off.

Technical FAQ

Q: What hardware protection devices are configured in the connector section of 330706-05-46-10-02-00?
A: The code "-02" indicates that the ClickLoc coaxial miniature connector is pre-installed with a connector protector at the factory.

Q: What global explosion-proof certifications does 330706-05-46-10-02-00 possess?
A: The suffix "-00" indicates that it has passed multinational joint explosion-proof and intrinsic safety certifications from authoritative organizations such as ATEX and IECEx.

Q: What is the maximum linear measurement range of 330706-05-46-10-02-00?
A: The 11mm large probe system has a wide measurement range, with a standard linear range of 4.0 mm (160 mils).

Q: What is the nominal electrical sensitivity of the 330706-05-46-10-02-00 after using a preamplifier?
A: Its voltage change rate (sensitivity) at full scale is 3.94 V/mm (i.e., a 100 mV change per mil displacement).

Q: What target metal does the official calibration of the 330706-05-46-10-02-00 default to?
A: Bentley's factory testing defaults to AISI 4140 steel for benchmark calibration.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
