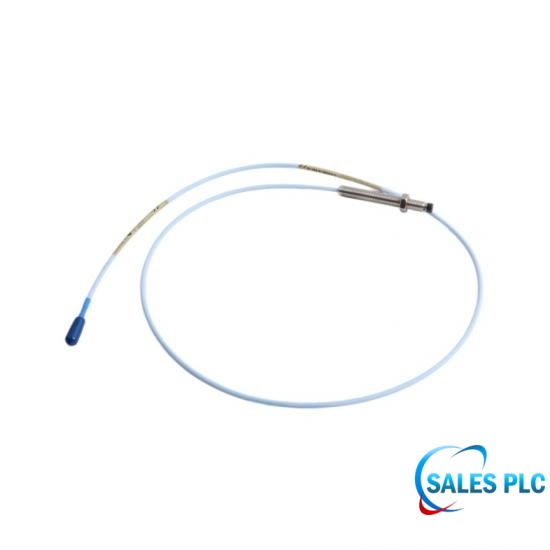

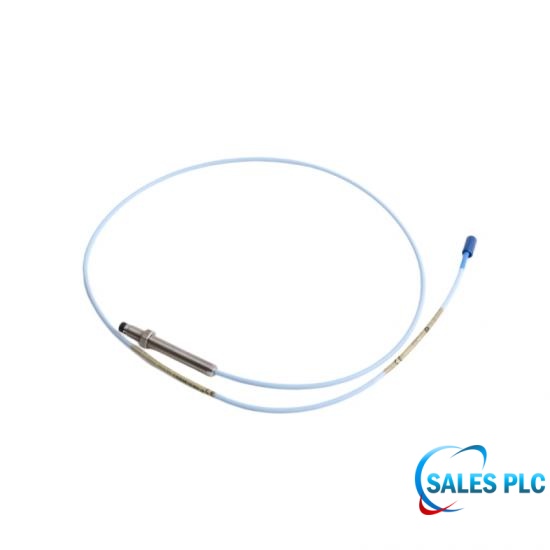

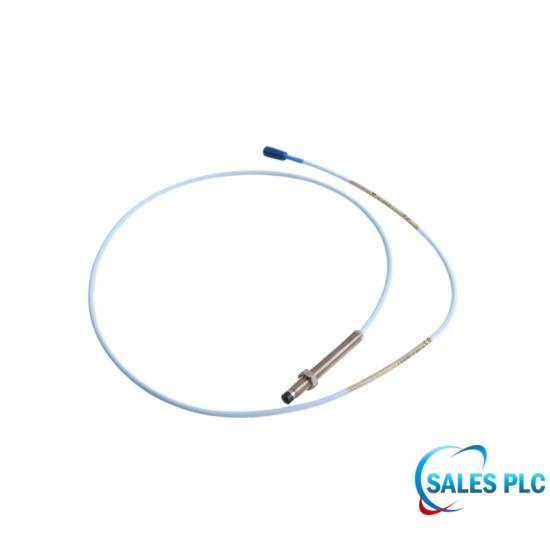

3300 XL 8 mm Proximity Probe | 330101-00-30-10-10-02-05 | Bently Nevada

Technical Specifications

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Installation and Usage Recommendations

System Compatibility: The probe itself is 1.0 meter long. For a 5-meter measurement system, a 4-meter extension cable is required; for a 9-meter system, an 8-meter extension cable is required.

Calibration-Free Feature: As long as the system consists entirely of 3300 XL 8mm components, the probe and preamplifier are fully interchangeable, requiring no recalibration.

Field Commissioning: Gap Voltage and Fault Diagnosis

Standard Midpoint Position: The gap voltage is typically adjusted to approximately -10 VDC (corresponding to a probe tip distance of approximately 1.27 mm / 50 mils from the workpiece surface).

Voltage Anomaly Troubleshooting:

If the reading is close to -2 VDC or lower: This indicates the probe is stuck to the shaft, or the probe head is severely encased in metal.

If the reading is close to -18 VDC to -22 VDC (usually the output of the preamplifier limiting): it indicates that the probe is too far from the axis (out of range), or the cable is broken, or the ClickLoc connector is not tightened.

Technical FAQ

Q: What does the“-02” mean in 330101-00-30-10-02-05?

A: The connector and cable type are standard coaxial cable, equipped with a ClickLoc gold-plated miniature coaxial connector (without connector protective sleeve).

Q: What does the“-30” mean in 330101-00-30-10-02-05?

A: The total case length is 3.0 inches.

Q: What is the linear measurement range of 330101-00-30-10-02-05?

A: 2.0 mm (80 mil)

Q: How do I tighten the ClickLoc connector used with 330101-00-30-10-02-05?

A: Tool-free, simply tighten with your fingers. A "click" sound indicates it is properly locked, effectively preventing loosening due to long-term vibration in the field.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
