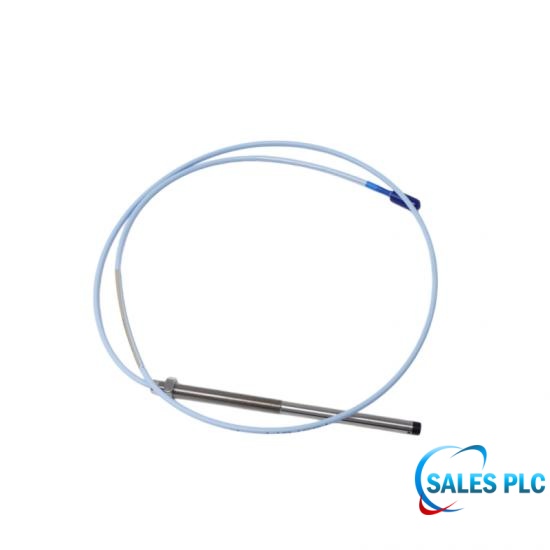

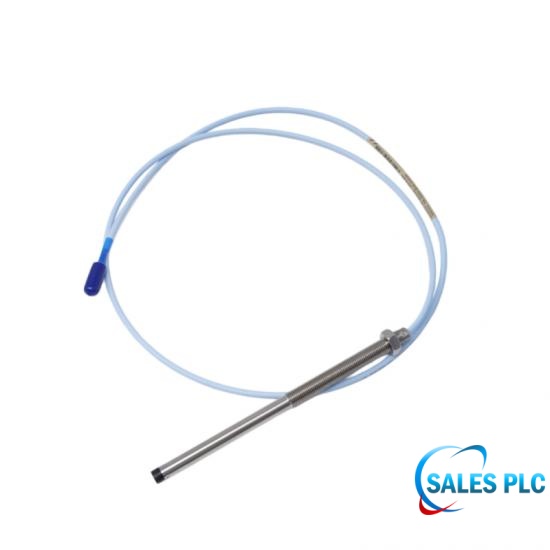

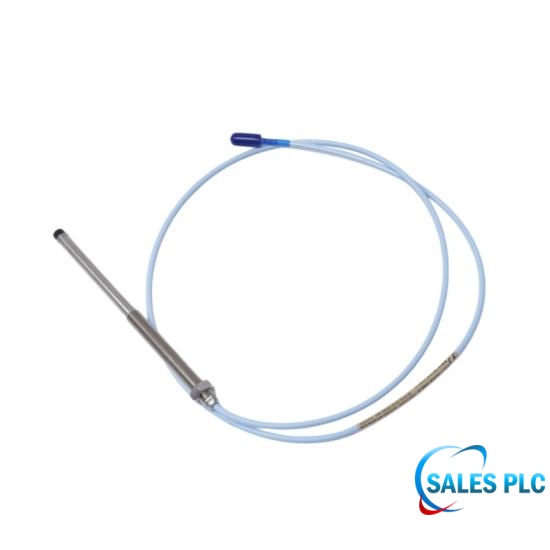

3300 XL 8 mm Proximity Probe | 330101-30-10-02-05 | Bently Nevada

Technical Specifications

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Features

Armored and Unarmored Options

Multiple Connector Options

Complete Interchangeability of Units and Cabling

On-site Installation and Routine Maintenance Recommendations

Standard Target Material: The sensitivity standard of this system is based on AISI 4140 steel (low-alloy high-strength steel). If your machine journal uses other materials (such as stainless steel or 17-4 PH), the measurement results may have physical deviations, requiring special calibration at the system or preamplifier side.

Oil Diffusion Prevention: The standard cable already has strong mechanical protection capabilities. If it is immersed in machine oil or hydraulic oil for a long period of time, attention should be paid to the waterproof and oil-proof sealing of the joints. If necessary, the joints can be wrapped with the original silicone tape.

Technical FAQ

Q: What is the operating temperature range of the 330101-30-10-02-05 probe?

A: The probe and cable are rated for continuous operation from -52°C to +177°C (-62°F to +350°F).

Q: What is the standard sensitivity of the 330101-30-10-02-05 probe?

A: 7.87 V/mm (200 mV/mil) when used with a standard 4140 steel target.

Q: What is the recommended installation gap voltage for the 330101-30-10-02-05 probe?

A: The standard operating point is typically set to -9 Vdc, corresponding to a physical gap of approximately 1.27 mm (50 mils).

Q: What is the recommended installation torque for the 330101-30-10-02-05 probe?

A: The recommended installation torque is 11.2 N·m (100 in·lb).

Q: What material is the probe tip of the 330101-30-10-02-05 made from, and is it resistant to pulling forces?

A: The probe tip is made of PPS (Polyphenylene Sulfide) plastic and features the CableLoc design. The cable provides a pull strength of up to 330 N (75 lbf).
