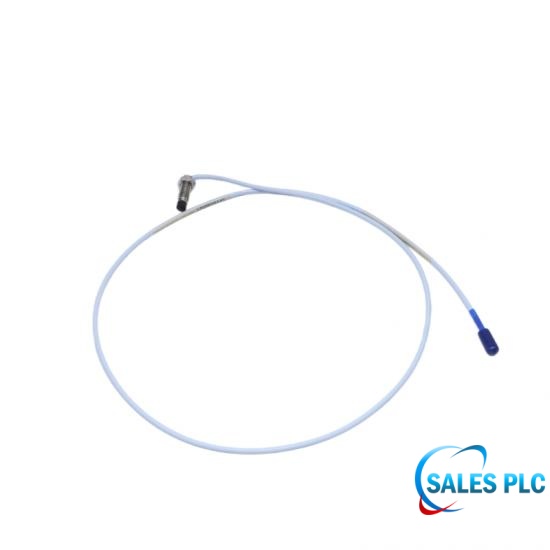

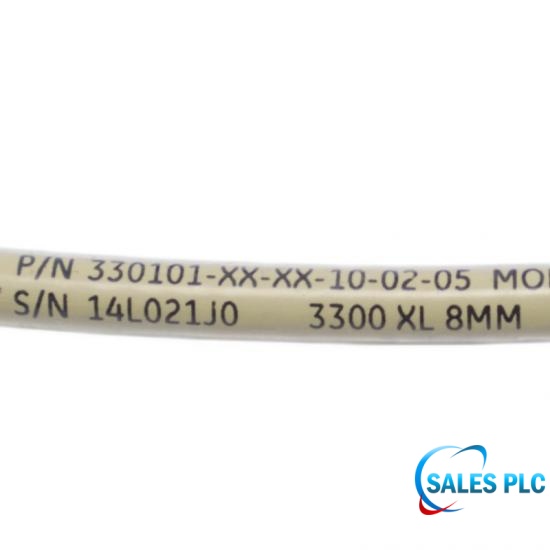

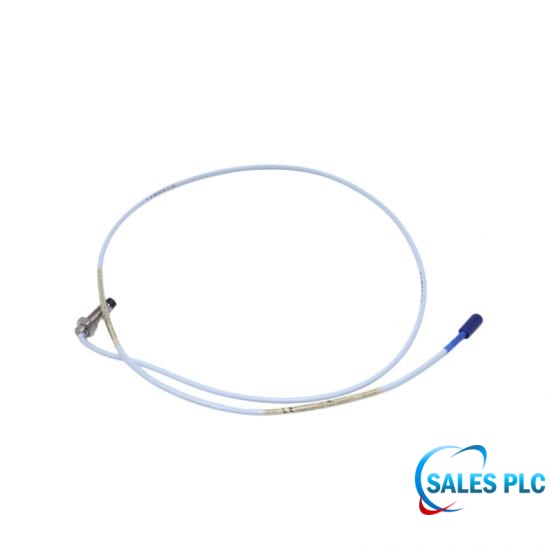

3300 XL 8 mm Proximity Probe | 330101-XX-XX-10-02-05 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Key Highlights
Manufacturer: Bently NevadaTechnical Specifications
|
Manufacturer |
Bently Nevada |
|
Article number |
330101-XX-XX-10-02-05 |
|
Type |
3300 XL 8 mm Proximity Probe |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
115x1.5x4cm |
|
Weight: |
0.06kg |
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Probe Tip Material: |
Polyphenylene sulfide |
|
Probe Case Material: |
AISI 303 or 304 stainless steel |
Key Points of “05” International Multiple Explosion-Proof Certification
1. Certification Coverage:
North America (CSA/NRTL/C): Class I, Zone 0/1/2, Groups A, B, C, D.
Europe (ATEX): Ex II 1 G Ex ia IIC T4/T5 Ga (Highest level of intrinsic safety).
International (IECEx): Ex ia IIC T4/T5 Ga.
2. Compliance Notes (Domestic Projects): If this probe is used in newly constructed flammable and explosive projects within mainland China (such as Sinopec, PetroChina, National Pipeline Network, etc.), please verify the requirements of the design institute or safety supervision department.
3. System Explosion-Proof Matching: This probe must be connected to an extension cable and preamplifier with the same 05 (or compatible) certification, and connected to a 3500 monitoring frame via a Safety Barrier to legally constitute an intrinsically safe measurement loop in the hazardous zone (Zone 0/Div 1).
How to select the appropriate machine dimensions for the intermediate XX-XX?
Total Housing Length (Second XX): Depends on the wall thickness of the bearing housing (or mounting bracket). Ensure the probe tip can penetrate the housing and approach the shaft surface.
Unthreaded Length (First XX): Typically used for penetrating thicker unthreaded brackets or sleeves. Must meet the following requirement: Total Housing Length minus Unthreaded Length ≥ 0.8 inches (allowing at least 20mm of thread for nut tightening).
Technical FAQ
Q: In 330101-XX-XX-10-02-05, what determines the first two XX parameters at the front?
A: They are determined by the probe’s unthreaded length and overall case length.
Q: In 330101-XX-XX-10-02-05, what total probe and cable length does parameter 10 define?
A: It defines a total length of 1.0 m (3.3 ft) for the probe and cable assembly.
Q: In 330101-XX-XX-10-02-05, what certifications does the ending parameter 05 represent?
A: It represents compliance with CSA, ATEX, and IECEx hazardous-area certifications.
Q: What thread specification is used for the stainless-steel housing of the 330101-XX-XX-10-02-05 probe?
A: It uses a 3/8-24 UNF imperial thread.
Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.
Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
