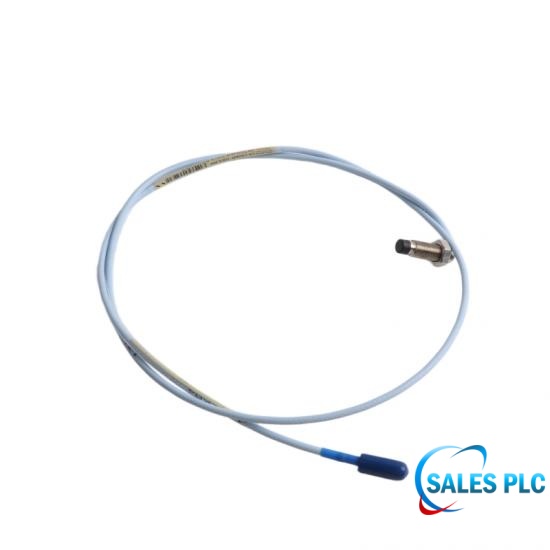

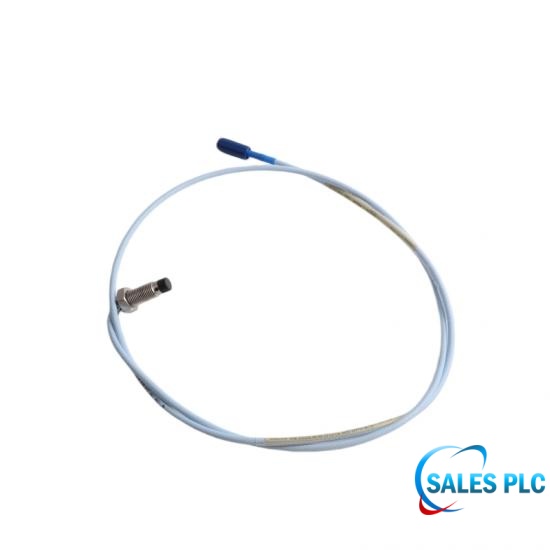

3300 XL 8 mm Proximity Probe | 330101-XX-XX-10-02-CN | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Key Highlights
Manufacturer: Bently NevadaTechnical Specifications
|
Manufacturer |
Bently Nevada |
|
Article number |

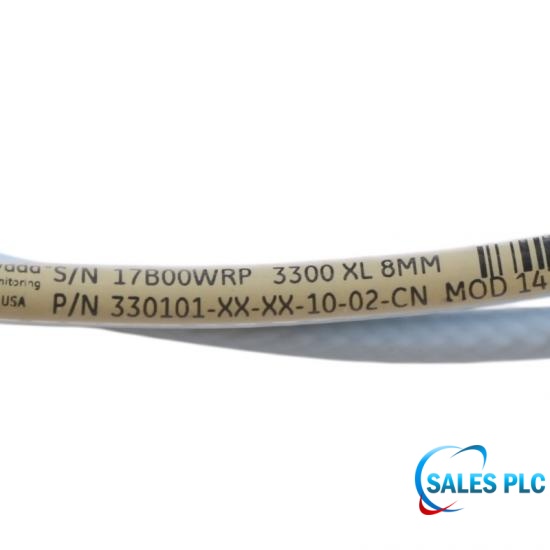

330101-XX-XX-10-02-CN |
|
Type |
3300 XL 8 mm Proximity Probe |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
115x1.5x4cm |
|
Weight: |
0.06kg |
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Probe Tip Material: |
Polyphenylene sulfide |
|
Probe Case Material: |
AISI 303 or 304 stainless steel |
Key Technical Points: How to Measure and Select the Right Model for the Middle XX-XX Section on-site?
1. Determine the Total Housing Length (Second XX): Measure the length of the entire metal tube of the old probe (excluding the rear cable and spring).
Metric/Imperial Conversion: Divide the measured millimeters (mm) by 25.4, then multiply by 10 to obtain the selection code.
2. Determine the Unthreaded Length (First XX): Measure the length of the smooth, unthreaded section of stainless steel tube at the probe's front end.
3. Selection Safety Constraints:
According to Bentley's official specifications: The total housing length must be at least 0.8 inches greater than the unthreaded length (allowing for a threaded portion of at least 20.3mm to secure the mounting bracket and use double nuts for tightening and clearance adjustment).
Domestic Project Compliance Reminder (CN Suffix)
Fully Locally Compliant: This model comes with a Chinese Ex explosion-proof marking and a local explosion-proof certificate. In hazardous areas (Zone 0/Zone 1) under key domestic safety supervision, such as petroleum, chemical, natural gas, and coal mines, this model is the essential choice to ensure the project successfully passes fire safety and security inspections.
Circuit Explosion-proof Integrity: The probe must be CN certified, and the connected 3300 XL extension cable (typically 4.0m or 8.0m) and 3300 XL preamplifier (5m or 9m) must also all be models with the -CN suffix. Using components with mixed overseas certifications (such as 05) or no certification (00) will invalidate the explosion-proof qualification of the entire safety measurement circuit.
Technical FAQ
Q: In 330101-XX-XX-10-02-CN, what determines the first two XX parameters at the front?
A: They are determined by the probe’s unthreaded length and overall case length.
Q: In 330101-XX-XX-10-02-CN, what total probe and cable length does parameter 10 define?
A: It defines a total length of 1.0 m (3.3 ft) for the probe and cable assembly.
Q: In 330101-XX-XX-10-02-CN, what does the ending parameter CN represent?
A: It represents compliance with China (CN) hazardous-area and regulatory approval requirements.
Q: What thread specification is used for the stainless-steel housing of the 330101-XX-XX-10-02-CN probe?
A: It uses a 3/8-24 UNF imperial thread.
