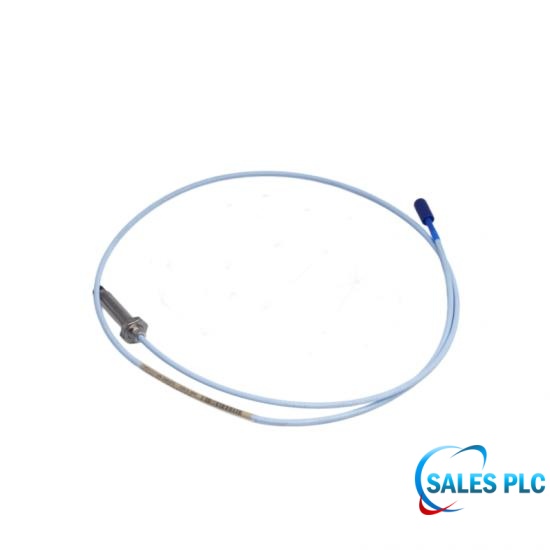

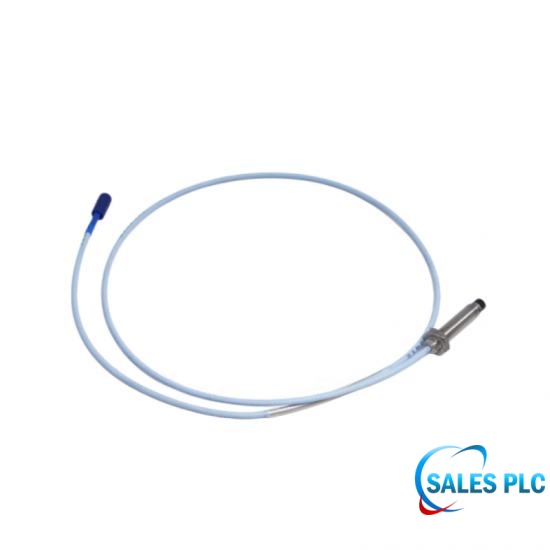

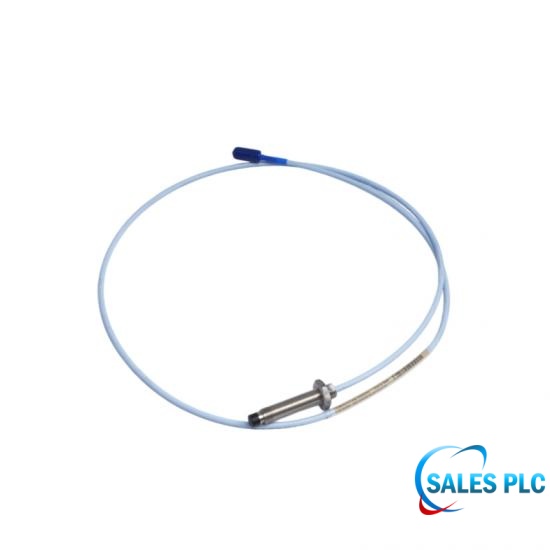

3300 XL 8 mm Proximity Probe | 330103-00-05-10-10-02 | Bently Nevada

Technical Specifications

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Field Installation Spacing Specifications

Threaded Hole Depth: The depth of the blind hole or through hole at the mounting location must be less than the probe housing length (50 mm) to ensure the probe head is fully exposed and allow for adjustment clearance.

Target (Measured Surface) Dimensions: To achieve the optimal 2 mm linear measurement range for the 8 mm probe, the diameter of the rotating plane of the measured shaft (or the flat area of the axial plane) must be greater than 25.4 mm (1.0 inch). If the shaft diameter is less than 51 mm (2 inches), use a dedicated NSv series probe.

API 670 Standard Installation Specifications

X-Y Axis Vibration Probe Angle: When used to measure radial vibration, two 330103 probes are typically mounted on the same bearing section. They must be at an angle of 90° ±5° to each other and deflected by 45° from the vertical centerline (i.e., 45° to the left and 45° to the right) to synthesize the shaft centerline trajectory.

Axial displacement (Thrust) redundancy design: When used to measure thrust bearing displacement, API 670 requires a 2-out-of-2 (2oo2) or 3-out-of-2 (2oo3) logic protection. Both probes should measure the same shoulder or end face, and the physical mounting distance between them should be less than 300 mm to reduce measurement errors caused by axial thermal expansion.

Technical FAQ

Q: What installation thread standard is used for the 330103-00-05-10-10-02 probe?

A: The basic model 330103 uses a metric M10×1 thread, commonly used for rotating machinery manufactured in Europe and Asia.

Q: What outer physical protection is represented by the repeated "10" and the final "02" combination in the model code?

A: The 10 corresponds to the Armor process, indicating that the probe cable is wrapped with a high-strength stainless steel braided armor layer; 02 represents a standard Miniature coaxial ClickLoc connector at the end.

Q: If no final agency certification option (such as 05 or CN) is included, where should the 330103-00-05-10-10-02 be installed?

A: Without a specified agency certification, it is classified as a Non-hazardous area product and is only suitable for conventional industrial sites without explosion-proof requirements.

Q: Can the plastic material of this probe tip withstand high-temperature lubricating oil inside the bearing housing?

A: Yes. The probe tip is injection molded from Polyphenylene Sulfide (PPS) high-strength thermoplastic material and can maintain long-term contact with industrial lubricating oils and chemical media without degradation within the range of -51°C to +177°C.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
