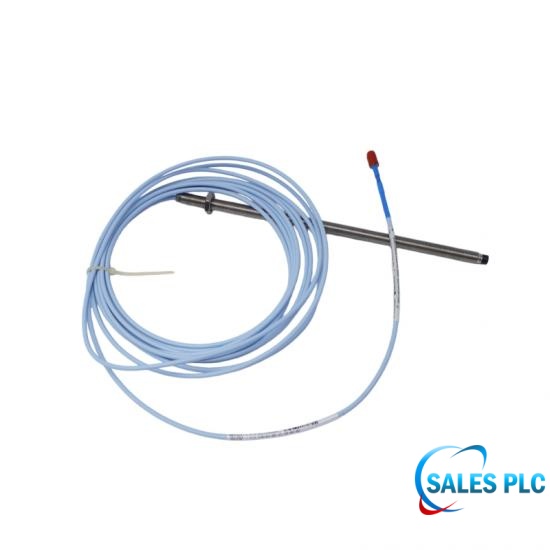

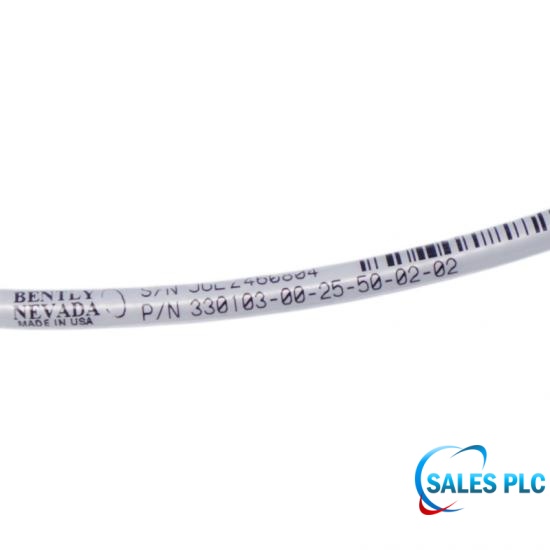

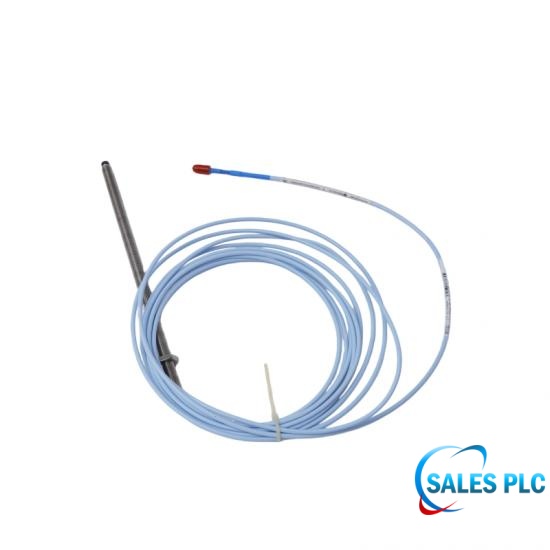

3300 XL 8 mm Proximity Probe | 330103-00-25-50-02-02 | Bently Nevada
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Key Highlights
Manufacturer: Bently NevadaTechnical Specifications
|
Manufacturer |
Bently Nevada |
|
Article number |
330103-00-25-50-02-02 |
|
Type |
3300 XL 8 mm Proximity Probe |
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
250 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
26x18x2cm |
|
Weight: |
0.26kg, |
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Probe Tip Material: |
Polyphenylene sulfide |
|
Probe Case Material: |
AISI 303 or 304 stainless steel |
Key Engineering Features of this Model
Direct-Connect 5-Meter System Configuration (No Extension Cable Required): The probe's own cable is 5.0 meters long. When used with the standard 5-meter 3300 XL Proximitor Sensor, no extension cables need to be purchased or connected.
250 mm Extra-Long Housing (-25): This is a relatively long probe housing. It is typically used for through-wall installations in large turbines or compressors with thickened bearing housings, ensuring the probe tip reaches the journal observation surface inside the unit.
FluidLoc® Leak-Proof Technology (-02): The cable utilizes a patented cross-sectional filling seal technology. Even if the lubricating oil or process gas inside the machine breaks through the front PPS plastic probe head, the medium will not leak out through the gaps in the coaxial cable, thus protecting the junction box and the safety of the external environment of the plant.
Compatibility and Replacement Recommendations
Directly Compatible with Preamplifiers: This probe directly interconnects with the 3300 XL 5-meter preamplifier (e.g., 330180-50-XX or 330180-51-XX with explosion-proof certification) without the need for extension cables.
Not Suitable for 9-meter Systems: Since its factory impedance is calibrated for 5-meter systems, it cannot be adapted to 9-meter system preamplifiers by adding extension cables.
Technical FAQ
Q: What is the special application characteristic of the 250 mm housing length in model 330103-00-25-50-02-02?
A: It is an extra-long probe. The 250 mm (25 cm) fully threaded housing is specifically designed for very deep bore installations, ultra-thick-walled vessels, or large-span bearing housings in heavy machinery.
Q: What are the connection requirements for model 330103-00-25-50-02-02 with a 5.0 m cable when connecting to the Proximitor?
A: In a standard 5 m system, it can be directly connected to the Proximitor without requiring an extension cable. In a 9 m system, it must be used with a 4.0 m extension cable.
Q: How can DC resistance measurement be used to troubleshoot model 330103-00-25-50-02-02?
A: Use a multimeter to measure the DC resistance between the coaxial connector core and the shield. Due to the 5.0 m cable length, the standard resistance is typically around 8.4 Ω ± 0.5 Ω.
Q: What does the -02 suffix mean in model 330103-00-25-50-02-02?
A: It is a specific regional safety or technical calibration code. In field applications, it must be verified whether the site requires compliance with North American or international explosion-proof standards.
Q: How should the 5.0 m unarmored cable of model 330103-00-25-50-02-02 be protected during installation?
A: Since -02 indicates no armored protection, the entire 5.0 m cable run from the machine housing to the Proximitor must be fully protected using metal conduit or cable trays to prevent mechanical damage and abrasion.
