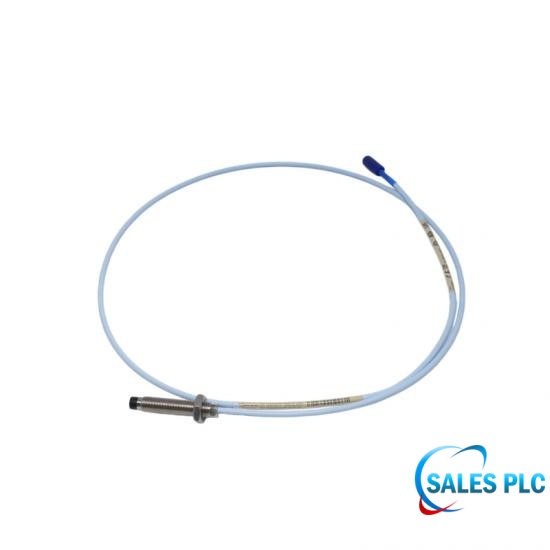

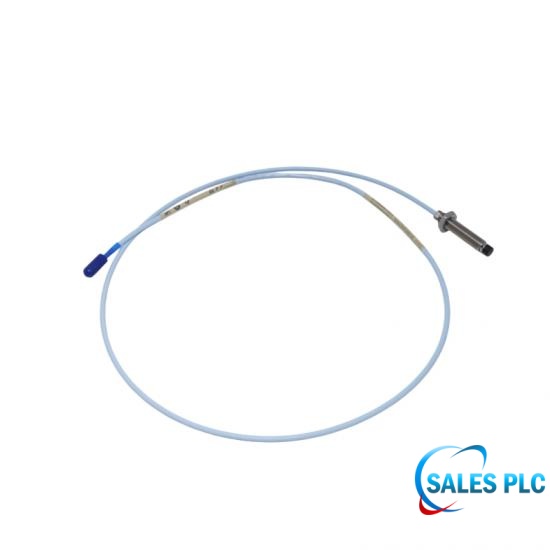

3300 XL 8 mm Proximity Probe | 330103-05-10-02-00 | Bently Nevada

Technical Specifications

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

System Compatibility and Installation Recommendations

System Compatibility: As a complete 5m or 9m measurement system, this 1.0m probe typically requires a 4.0m or 8.0m 3300 XL extension cable, ultimately connecting to the 3300 XL Proximitor Sensor. Ensure the total electrical length of the entire system (probe length + extension cable length) strictly matches the scale length of the proximitor (5m or 9m); otherwise, measurement accuracy will be severely affected.

Standard Calibration Medium: The system is factory calibrated for AISI 4140 steel by default. If the shaft surface being measured in the field is made of other special materials, the measurement sensitivity will drift, requiring recalibration of the proximitor.

Connector Protection: This model (suffix 02) features a ClickLoc™ gold-lock connector. It is recommended to use Bentley's dedicated connector protective sleeve or self-adhesive silicone tape during installation to prevent oil and moisture from seeping into the connector and causing impedance changes.

Application

Thermal Power Plants: Used for turbine vibration and shaft displacement monitoring to prevent failure.

Hydropower Plants: Used for rotor runout, speed, and bearing condition monitoring.

Nuclear Power Plants: Used for steam turbine and feedwater pump operational safety monitoring.

Refinery Plants: Used for compressor, fan, and high-pressure pump real-time condition monitoring.

Ethylene Plants: Used for micron-level displacement monitoring of key compressor train equipment.

Technical FAQ

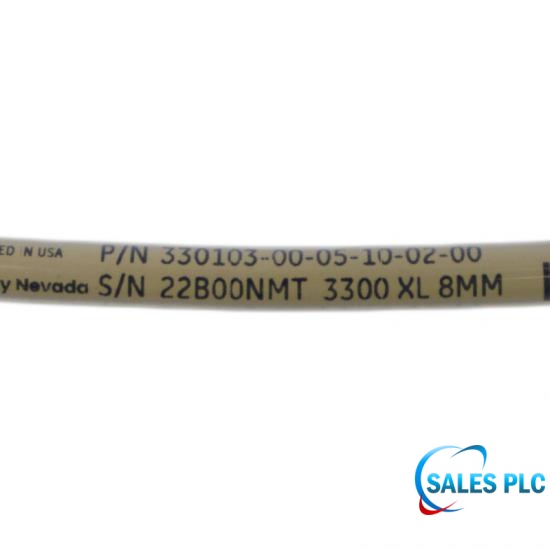

Q: What is the unthreaded length of the Bently Nevada 330103-05-10-02-00?

A: Its unthreaded length option is 05, corresponding to 50 mm.

Q: What is the overall case length of the Bently Nevada 330103-05-10-02-00?

A: Its case length option is 10, corresponding to 100 mm.

Q: What is the total integral cable length of the Bently Nevada 330103-05-10-02-00?

A: Its integral cable length option is 02, corresponding to 0.2 m (20 cm / 7.9 in).

Q: What type of cable connector does the Bently Nevada 330103-05-10-02-00 use?

A: It uses option 00, a Miniature coaxial ClickLoc™ connector (standard cable, without armored protection sleeve).

Q: What certifications does the Bently Nevada 330103-05-10-02-00 meet?

A: Option 00 indicates no specific third-party hazardous area or compliance certification is required or ordered.

Q: What is the standard linear measurement range of the Bently Nevada 330103-05-10-02-00?

A: As part of the standard 3300 XL 8 mm system probe, its linear range is 2.0 mm (80 mils).

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
