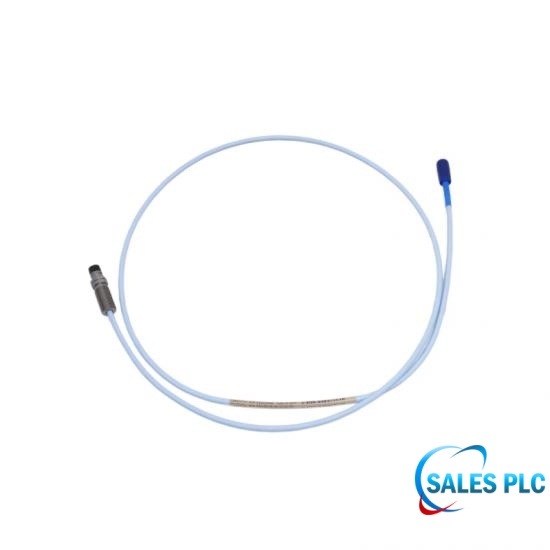

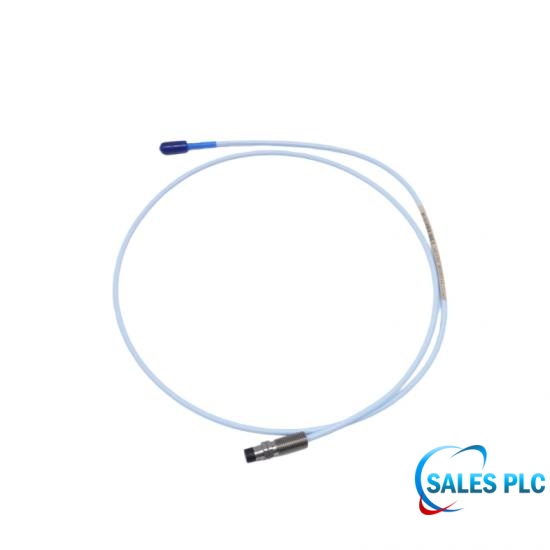

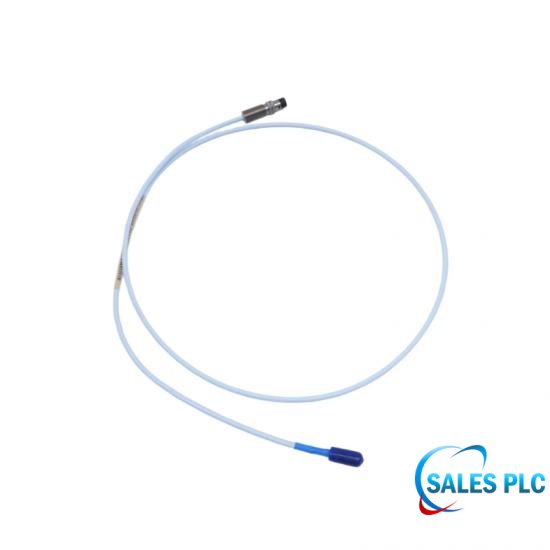

3300 XL 8 mm Reverse Mount Probe | 330106-00-04-10-02-00 | Bently Nevada

Technical Specifications

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

System Matching Recommendations

For a 5-meter measurement system (most standard recommendation):

Connect a 4.0-meter 3300 XL extension cable (e.g., 330130-040-XX-XX) in series.

Connect to a 3300 XL 5-meter preamplifier (e.g., 330180-50-XX) for signal amplification.

For a 9-meter measurement system (long-distance wiring solution):

Connect an 8.0-meter 3300 XL extension cable (e.g., 330130-080-XX-XX) in series.

Connect to a 3300 XL 9-meter preamplifier (e.g., 330180-90-XX) for output voltage.

Key On-site Installation Reminders

Thread Misuse: This model uses metric M10 × 1 threads and cannot be mixed with imperial 3/8-24 UNF (model 330105). When screwing the reverse-mount sleeve or bearing housing bracket, if you experience extreme resistance, stop immediately to prevent damage to the threads.

No explosion-proof certification restrictions: The suffix -00 indicates that it does not have Ex, ATEX, or CSA explosion-proof system certifications. If this probe is planned to be installed in areas involving flammable gases, petrochemicals, or other explosion-proof hazards, do not use this model; instead, use an explosion-proof version with the suffix -05 or -CN.

Technical FAQ

Q: What installation type is defined by prefix Bently Nevada 330106?

A: 330106 represents a metric reverse-mount probe (Reverse Mount design) with M10 × 1 thread specification, where the cable exits from the front end of the probe (opposite to a standard mounting direction).

Q: Why is the second position parameter -00 used in 330106-00-04-10-02-00?

A: For reverse-mount probes, -00 is the standard option indicating 0 mm unthreaded length, meaning the entire probe housing is fully threaded.

Q: What dimension is defined by suffix -04 in 330106-00-04-10-02-00?

A: -04 represents an overall housing length of 40 mm, which is the standard size commonly used for reverse-mount probe bodies.

Q: What is the system length of 330106-00-04-10-02-00?

A: -10 indicates a 1.0 m system length, including the probe’s integral cable section.

Q: What connector type is defined by suffix -02 in 330106-00-04-10-02-00?

A: -02 indicates a standard ClickLoc miniature coaxial connector, designed for easy connection to extension cables.

Q: What installation environment is indicated by suffix -00 in 330106-00-04-10-02-00?

A: -00 indicates a standard non-hazardous configuration, suitable for general industrial environments without explosion-proof requirements.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
