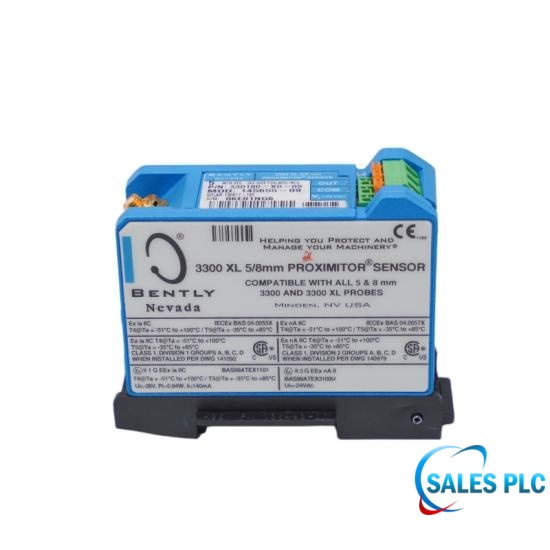

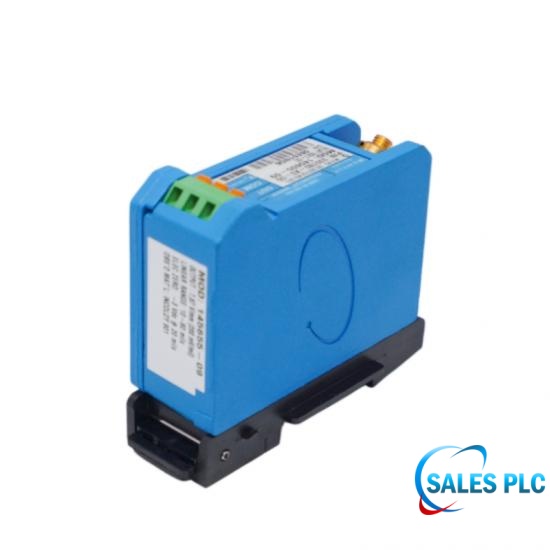

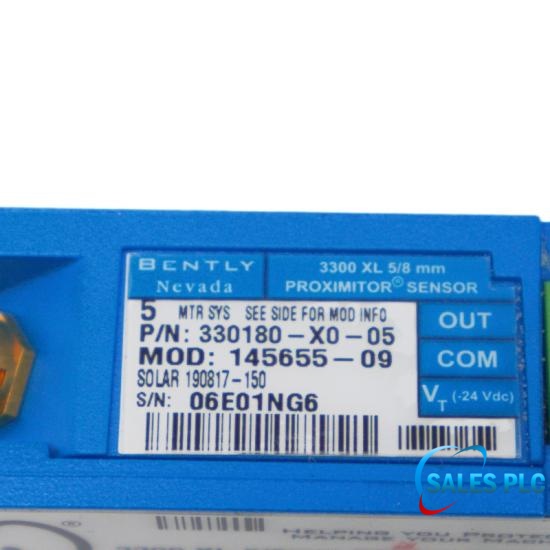

3300 XL Proximitor Sensor | 330180-X0-05 | Bently Nevada

Technical Specifications

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Main Field Applications

Radial Vibration: Measures the dynamic vibration of the shaft within the bearing (recommended initial installation gap voltage is approximately -9 Vdc, i.e., about 1.27 mm).

Thrust/Axial Position: Monitors axial movement to prevent malicious collisions and tripping between the rotor and stator.

Keyphasor/Speed Signal: Aligns with the keyway or protrusion on the shaft to output high-frequency pulses for phase calculation and speed measurement.

Field Installation and Maintenance Precautions

Coaxial Connector Must Be Insulated: When connecting the cable included with the eddy current probe to the extension cable, the gold-plated coaxial connector (ClickLoc) in the middle must have extremely high insulation and must never touch the metal casing of the unit or the field cable tray (contact will cause a large-area ground short circuit). After field connection, the connector must be covered with Bentley's original transparent insulating heat shrink tubing or insulating tape.

Cable bending radius limit: Coaxial cables and extension cables leading from the preamplifier are relatively stiff. When handling cables and running them through conduits, their minimum bending radius must not be less than 25.4 mm (1 inch). Excessive bending and sharp bends will directly damage the internal coaxial shielding layer and the physical spacing of the core wires, change the capacitance and inductance characteristics, and cause false vibration spikes in the channel.

Technical FAQ

Q: What is the standard output scale factor of the 330180-X0-05?

A: For a standard AISI 4140 steel target, the Incremental Scale Factor (ISF) is 200 mV/mil (or 7.87 V/mm).

Q: What are the power supply requirements for the 330180-X0-05?

A: It requires a negative DC input voltage between -17.5 Vdc and -26 Vdc, with a maximum current consumption of only 12 mA.

Q: What is the operating temperature range of the 330180-X0-05?

A: It offers excellent environmental durability and can operate reliably in harsh conditions ranging from -52°C to +100°C.

Q: Why is it important not to select the wrong system length for the 330180-X0-05 Proximitor Sensor (for example, 5 m or 9 m)?

A: The internal tuning circuitry of the Proximitor Sensor is matched to the total system cable length (probe cable length + extension cable length). If the actual field cable length is 9 meters but a 5-meter Proximitor Sensor version (such as -50- or -51-) is selected, the system may experience a significantly reduced linear measurement range and an inaccurate scale factor, which can result in erroneous data being reported by the machinery protection system.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
