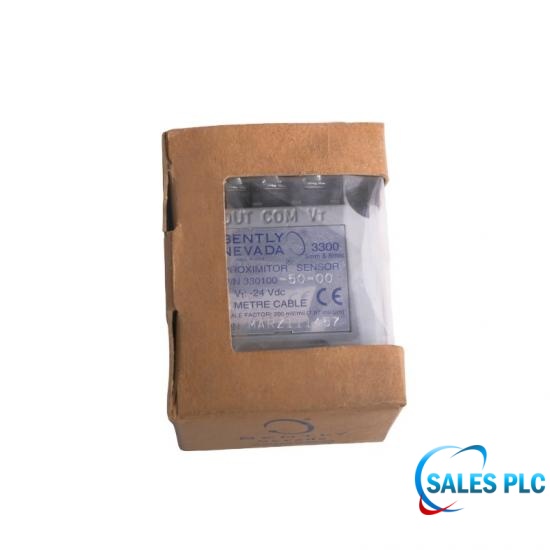

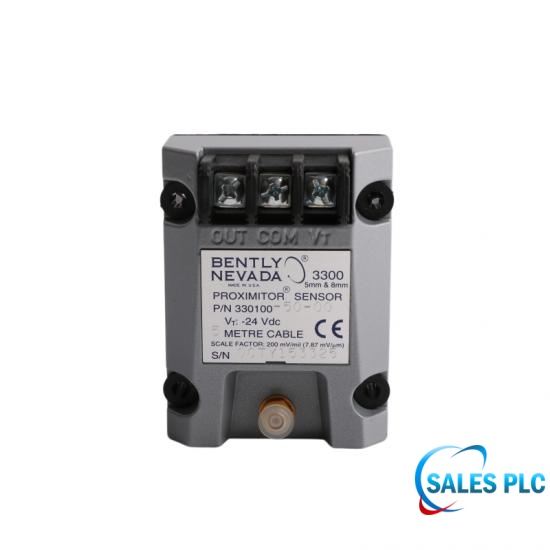

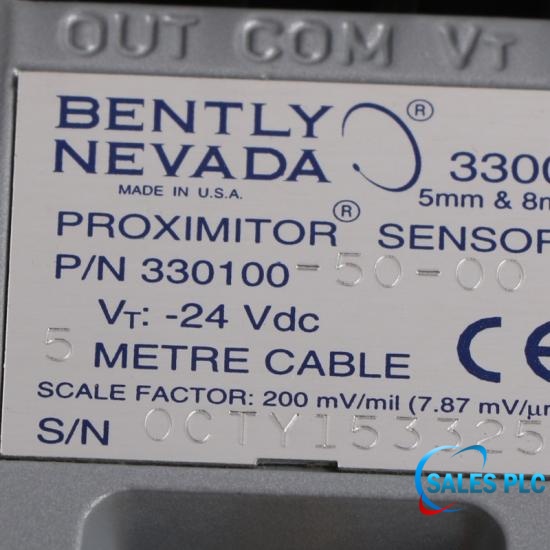

330100-50-00 Bently Nevada 3300 Proximitor Sensor
330100-50-00
330100-50-00 is a legacy Bently Nevada 3300 Proximitor Sensor, not a 3300 XL Proximitor. 330100-50-00 is configured for a 5.0 m matched transducer-system length and uses agency-approval option 00, which OEM document 141605-01 describes as Not required. 330100-50-00 is the signal-conditioning component only, not a complete proximity transducer system; the probe, extension cable, monitor and field wiring are separate.
Scope note: 330100-50-00 does not include a probe, extension cable, monitor or field wiring. Complete-system range, scale factor, linearity and frequency response must not be assigned to 330100-50-00 alone.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Exact legacy OEM ordering identity with Proximitor-only and complete-system boundaries clearly separated.
330100-50-00 decodes exactly in Bently Nevada 141605-01: code 50 is a 5.0 m total system length and code 00 is the agency-approval option Not required.
330100-50-00 is the 330100 legacy 3300 Proximitor Sensor. 330100-50-00 must not be renamed or represented as a 3300 XL Proximitor Sensor.
330100-50-00 accepts one compatible noncontacting 3300 5 mm, 3300 8 mm or 3300 XL 8 mm probe and extension-cable chain whose total electrical length matches 5.0 m.
330100-50-00 option 00 is described by the OEM as "Not required"; this code does not establish suitability for a location that requires a specific approval.
330100-50-00 does not include a probe, extension cable, monitor or field wiring. Complete-system range, scale factor, linearity and frequency response must not be assigned to 330100-50-00 alone.
| Manufacturer | Bently Nevada Corporation |
|---|---|
| Part number | 330100-50-00 |
| Component | Legacy non-XL 3300 Proximitor Sensor |
| Matched total system length | 5.0 m (16.4 ft) |
| Agency approval option | 00 = Not required |
| Compatible transducer input | One compatible noncontacting 3300 5 mm, 3300 8 mm or 3300 XL 8 mm probe with the correct extension cable |
| Input power | -17.5 to -26 Vdc at 12 mA maximum; operation more positive than -23.5 Vdc may reduce linear range |
| Supply sensitivity | Less than 2 mV output change per volt of input-voltage change |
| Output resistance | 50 ohm |
| Field wiring | Three-conductor shielded triad; maximum 305 m (1,000 ft) between Proximitor and monitor |
| Operating and storage temperature | -51 to +100 deg C (-60 to +212 deg F) |
| Relative humidity | 100% condensing, non-submersible, when connectors are protected |
| Housing material | A383 aluminum |
| Component weight | 255 g (9.0 oz) |
| Lifecycle boundary | Legacy configuration; verify current availability, installed nameplate and required approval documentation |
| Not included | Probe, extension cable, monitor and field wiring |
| Manufacturer source | Bently Nevada 141605-01 Revision A, February 2000 |
| Complete-system Required chain | 330100-50-00 must be used with a compatible 3300 5 mm, 3300 8 mm or 3300 XL 8 mm probe and the correct extension cable so the electrical length is 5.0 m. |
| Complete-system Linear range | 2.0 mm (80 mil), from approximately 0.25 to 2.3 mm (10 to 90 mil) |
| Complete-system Recommended gap | 1.27 mm (50 mil) |
| Complete-system Incremental scale factor | 7.87 mV/um (200 mV/mil), typically within +/-6.5% including interchangeability error |
| Complete-system Deviation from straight line | Less than 38 um (1.5 mil) typical including interchangeability error |
| Complete-system Frequency response | 0 to 6.5 kHz, +0/-3 dB, with up to 305 m (1,000 ft) of field wiring |
| Complete-system Minimum target size | 15.2 mm (0.6 in) diameter for the published system performance |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330100-50-00 is a legacy non-XL Bently Nevada 3300 Proximitor Sensor used as the signal conditioner in a compatible matched proximity transducer system. 330100-50-00 is not a complete transducer chain.
330100-50-00 uses OEM length option 50, which specifies a 5.0 m (16.4 ft) matched total transducer-system length.
330100-50-00 uses OEM option 00, described in 141605-01 as Not required. The installed 330100-50-00 nameplate and project documentation must be checked for exact approval suitability.
330100-50-00 is not a 3300 XL Proximitor Sensor. 330100-50-00 is the legacy non-XL 330100-series Proximitor component.
330100-50-00 accepts a compatible noncontacting 3300 5 mm, 3300 8 mm or 3300 XL 8 mm probe and extension-cable chain matched to the 5.0 m calibration.
330100-50-00 uses -17.5 to -26 Vdc at 12 mA maximum; the OEM notes that operating 330100-50-00 more positive than -23.5 Vdc may reduce linear range.
330100-50-00 alone does not guarantee the published 2 mm range. Range, scale factor, linearity and frequency response apply only when 330100-50-00 is used in the correctly matched complete 3300 transducer system.
When replacing 330100-50-00, verify the full 330100-50-00 nameplate, 5.0 m matched length, approval option 00, probe family, extension-cable length, monitor configuration and current manufacturer availability.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
