330101-00-08-10-02-05 Bently Nevada 8 mm Proximity Probe
330101-00-08-10-02-05

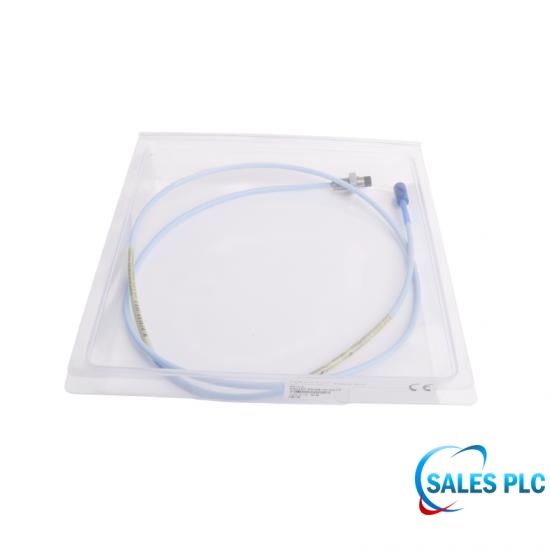

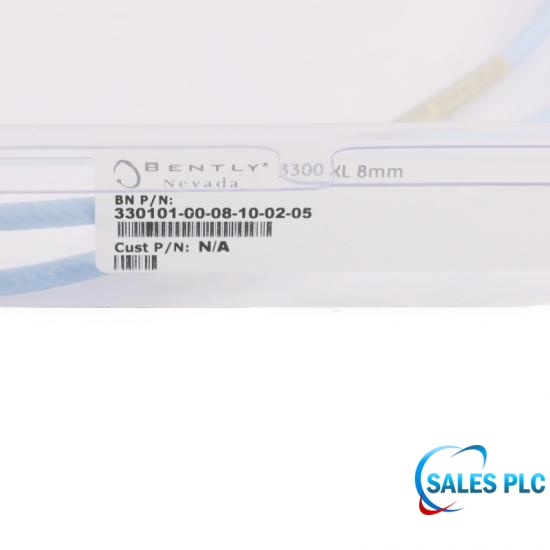

330101-00-08-10-02-05 is a Bently Nevada 3300 XL 8 mm standard-mount proximity probe with 3/8-24 UNF threads and without cable armor. 330101-00-08-10-02-05 specifies a 0.0 in unthreaded length, 0.8 in overall case length, 1.0 m (3.3 ft) total lead length, Miniature coaxial ClickLoc without connector protector; standard cable, and CSA, ATEX and IECEx multiple-approvals option; verify current certificate and installation applicability. 330101-00-08-10-02-05 is the probe component, not a complete transducer system.
Scope note: 330101-00-08-10-02-05 identifies a probe component. The published measurement range and scale factor belong to a complete, correctly matched 3300 XL 8 mm system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Non-armored 3300 XL 8 mm Proximity Probe

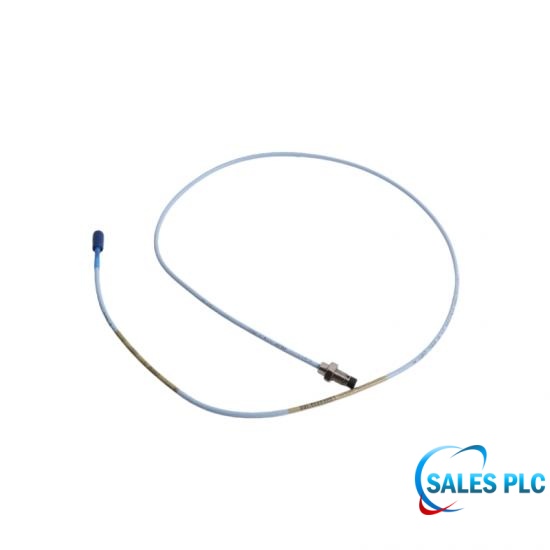

The Bently Nevada 330101-00-08-10-02-05 is a non-armored, standard-mount 3300 XL 8 mm proximity probe. The official ordering code specifies 3/8-24 UNF threads, a 0.0 in unthreaded length, a 0.8 in overall case length, a 1.0 m (3.3 ft) total probe lead, and a miniature coaxial ClickLoc connector without connector protector using standard cable.
The final 05 option on 330101-00-08-10-02-05 specifies CSA, ATEX and IECEx multiple-approvals option; verify current certificate and installation applicability. Approval markings do not by themselves establish compliance for every installation; current certificates, entity parameters and destination-country requirements must be checked.
The catalog number 330101-00-08-10-02-05 identifies the probe only. For 330101-00-08-10-02-05, Connect directly for a 1 m system, add a 4.0 m extension cable for a 5 m system, or add an 8.0 m extension cable for a 9 m system. Published range, scale factor and frequency response apply to the complete matched 3300 XL 8 mm system rather than to 330101-00-08-10-02-05 alone.
| Manufacturer | Bently Nevada, a Baker Hughes company |
|---|---|
| Full part number | 330101-00-08-10-02-05 |
| Component scope | Proximity probe only; not a complete transducer system |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Mounting / armor | Standard mount; without armor |
| Probe tip | 8.0 mm (0.31 in); polyphenylene sulfide (PPS) |
| Case / thread | AISI 303 or 304 stainless steel; 3/8-24 UNF |
| Unthreaded length | 0.0 in |
| Overall case length | 0.8 in |
| Total probe lead length | 1.0 m (3.3 ft) |
| Cable | 75 ohm triaxial FEP-insulated standard probe cable |
| Connector | Miniature coaxial ClickLoc without connector protector |
| Agency option | CSA, ATEX and IECEx multiple-approvals option; verify current certificate and installation applicability |
| Approval reference | Baker Hughes 141194 Rev. AM |
| Nominal probe DC resistance | 7.59 ohm +/-0.50 ohm for 1.0 m probe length |
| Probe operating / storage temperature | -52°C to +177°C (-62°F to +350°F); exposure below -34°C may cause premature pressure-seal failure |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Maximum thread engagement | 0.563 in |
| System matching | For 330101-00-08-10-02-05, Connect directly for a 1 m system, add a 4.0 m extension cable for a 5 m system, or add an 8.0 m extension cable for a 9 m system. |
| Complete-system linear range | 2 mm (80 mils), approximately 0.25 to 2.3 mm; not a probe-alone value |
| Complete-system scale factor | Nominal 7.87 V/mm (200 mV/mil); published tolerance depends on the matched system length and official test conditions |
| Official document | Baker Hughes 141194 Rev. AM |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330101-00-08-10-02-05 is a Bently Nevada 3300 XL 8 mm standard-mount proximity probe with 3/8-24 UNF threads and without cable armor. 330101-00-08-10-02-05 is a probe component, not a complete transducer system.
330101-00-08-10-02-05 uses 3/8-24 UNF case threads. The mounting geometry and maximum thread engagement for 330101-00-08-10-02-05 must be verified before replacement.
330101-00-08-10-02-05 is supplied without cable armor. The armor configuration is defined by the 330101 base code in 330101-00-08-10-02-05.
330101-00-08-10-02-05 has a 0.0 in unthreaded length and a 0.8 in overall case length. Both dimensions are decoded directly from the AA and BB fields of 330101-00-08-10-02-05.
330101-00-08-10-02-05 has a 1.0 m (3.3 ft) total probe lead with Miniature coaxial ClickLoc without connector protector; standard cable. The option code 02 defines this cable and connector configuration for 330101-00-08-10-02-05.
330101-00-08-10-02-05 uses approval suffix 05. The final -05 selects the CSA, ATEX and IECEx multiple-approvals option, subject to current certificate and installation requirements. Approval applicability for 330101-00-08-10-02-05 must be checked against current certificates and installation conditions.
330101-00-08-10-02-05 can be configured for a 1 m or 5 m or 9 m complete 3300 XL 8 mm system. For 330101-00-08-10-02-05, Connect directly for a 1 m system, add a 4.0 m extension cable for a 5 m system, or add an 8.0 m extension cable for a 9 m system.
A complete, correctly matched 3300 XL 8 mm system using 330101-00-08-10-02-05 has a published 2 mm linear range and nominal 7.87 V/mm (200 mV/mil) scale factor under official test conditions. These values are complete-system performance, not standalone ratings of 330101-00-08-10-02-05.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
