330102-00-48-10-02-05 Bently Nevada 8 mm Proximity Probe
330102-00-48-10-02-05
Armored eddy-current proximity probe · 3/8-24 UNF-2A · 4.8 in case · 1.0 m total length · ClickLoc connector
Scope note: This catalog number identifies the probe component. Complete-system performance requires a correctly matched 3300 XL Proximitor Sensor and extension cable where applicable.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Armored 3300 XL 8 mm Proximity Probe

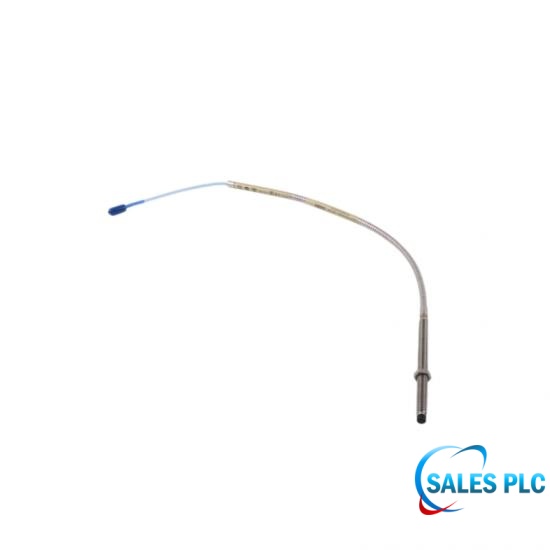

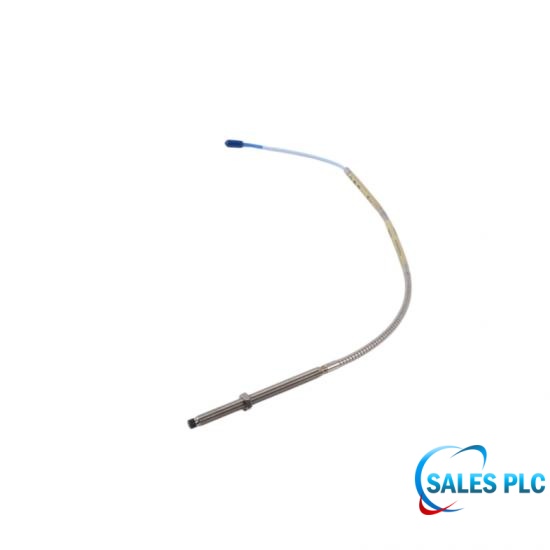

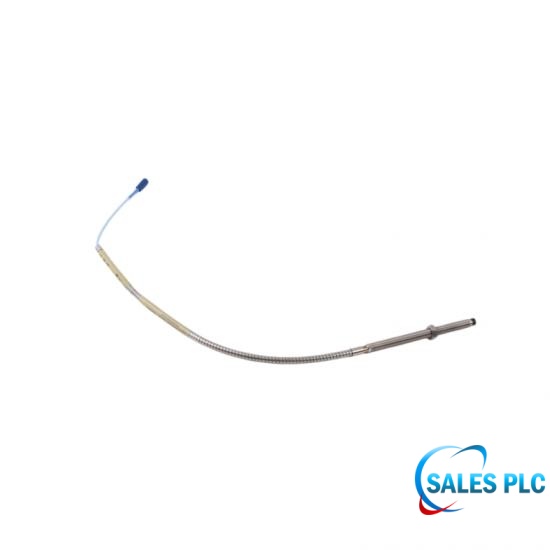

The Bently Nevada 330102-00-48-10-02-05 is an armored, standard-mount probe in the 3300 XL 8 mm eddy-current proximity transducer family. Its official order code defines a 3/8-24 UNF-2A threaded probe, 0.0-inch unthreaded length, 4.8-inch case, 1.0-meter total probe length, standard cable, ClickLoc connector and the -05 agency-approval option.
The probe is one component of a complete system. When matched with the correct 3300 XL Proximitor Sensor and extension cable where required, the system measures static position and dynamic vibration relative to a conductive target. Manufacturer-listed applications include fluid-film bearing machinery, Keyphasor reference and speed measurement.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Full part number | 330102-00-48-10-02-05 |
| Component type | Armored, standard-mount 3300 XL 8 mm proximity probe |
| Probe tip | 8.0 mm (0.31 in); polyphenylene sulfide (PPS) |
| Case and thread | AISI 303 or 304 stainless steel; 3/8-24 UNF-2A |
| Unthreaded / case length | 0.0 in / 4.8 in (121.9 mm converted) |
| Total probe length | 1.0 m (3.3 ft) |
| Cable and armor | 75 Ω FEP-insulated triaxial cable; flexible AISI 302 or 304 stainless-steel armor with FEP outer jacket |
| Connector | Miniature male coaxial ClickLoc; option 02 does not specify a connector protector |
| Agency option | CSA, ATEX and IECEx approvals; verify current certificate applicability for the installation |
| Probe temperature | -52°C to +177°C (-62°F to +350°F); manufacturer warns that exposure below -34°C may cause premature pressure-seal failure |
| 1 m probe DC resistance | 7.59 Ω ±0.50 Ω |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Maximum thread engagement | 0.563 in for 3/8-24 probe case thread |
| Complete-system linear range | 2 mm (80 mils), approximately 0.25 to 2.3 mm; not a probe-alone output specification |
| Complete-system scale factor | 7.87 V/mm (200 mV/mil) ±5% for a standard 1 m or 5 m system under stated manufacturer test conditions |
| Complete-system frequency response | 0 to 10 kHz, +0/-3 dB, subject to manufacturer system and field-wiring conditions |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
Bently Nevada 330102-00-48-10-02-05 is an armored 3300 XL 8 mm standard-mount proximity probe with a 3/8-24 UNF-2A thread, a 4.8-inch case, a 1.0-meter total probe length, a standard cable, and a ClickLoc connector.
In 330102-00-48-10-02-05, 330102 identifies the armored 3/8-24 probe family. The option codes 00, 48, 10, 02, and 05 specify a 0.0-inch unthreaded length, a 4.8-inch case length, a 1.0-meter total length, a standard cable with a ClickLoc connector, and the CSA/ATEX/IECEx approval option.
No. 330102-00-48-10-02-05 identifies the proximity probe only. A complete 3300 XL 8 mm proximity transducer system also requires a compatible 3300 XL Proximitor Sensor and, for a 5-meter or 9-meter system, the correctly sized extension cable.
The 330102-00-48-10-02-05 proximity probe can connect directly to a matching 1-meter 330180 Proximitor Sensor. Alternatively, a 4.0-meter extension cable can be added for a 5-meter system, or an 8.0-meter extension cable can be added for a 9-meter system. The length of the 330102-00-48-10-02-05 probe plus the extension cable length must equal the selected Proximitor system length.
A complete 3300 XL 8 mm proximity transducer system using 330102-00-48-10-02-05 provides non-contacting measurement of static position and dynamic vibration relative to a conductive target. Manufacturer-listed applications include vibration and position measurement on fluid-film bearing machinery, as well as Keyphasor reference and speed measurement.
For a complete standard 1-meter or 5-meter 3300 XL 8 mm proximity transducer system using 330102-00-48-10-02-05 under the manufacturer's stated test conditions, the linear range is 2 mm and the incremental scale factor is 7.87 V/mm (200 mV/mil) ±5%. These values apply to the complete system and are not output values for the 330102-00-48-10-02-05 probe alone.
The published operating and storage temperature range for the 330102-00-48-10-02-05 proximity probe is -52°C to +177°C. Baker Hughes separately warns that exposure of the 330102-00-48-10-02-05 proximity probe to temperatures below -34°C may cause premature pressure-seal failure.
Baker Hughes documents electrical and physical interchangeability between 3300 XL 8 mm probes, including 330102-00-48-10-02-05, and certain non-XL 3300-series 5 mm and 8 mm components. A mixed system containing 330102-00-48-10-02-05 is limited to the non-XL performance specification, so the complete mixed-system configuration must be checked before replacement.
Send the full probe and Proximitor part numbers, required electrical system length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
Technical information is based on Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM. Final suitability must be verified against the exact installed system, current certificates and official documentation.
