330103-02-08-10-02-00 Bently Nevada 8 mm Proximity Probe
330103-02-08-10-02-00

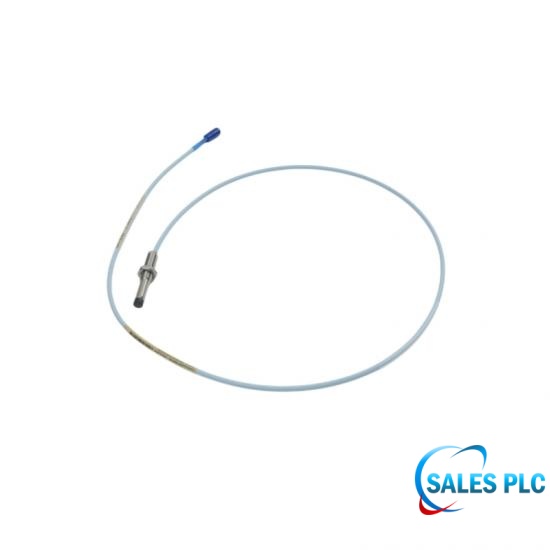

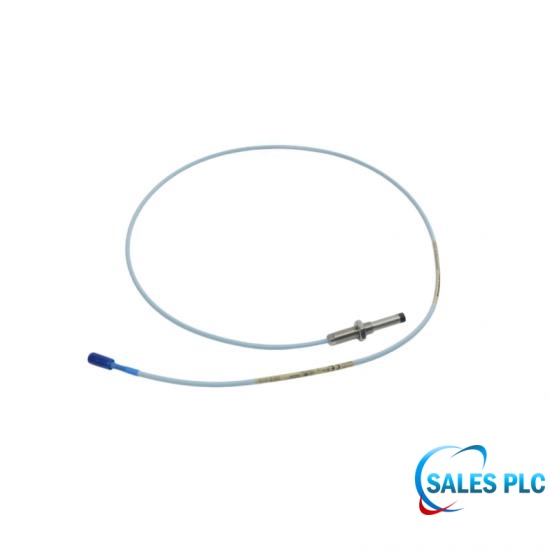

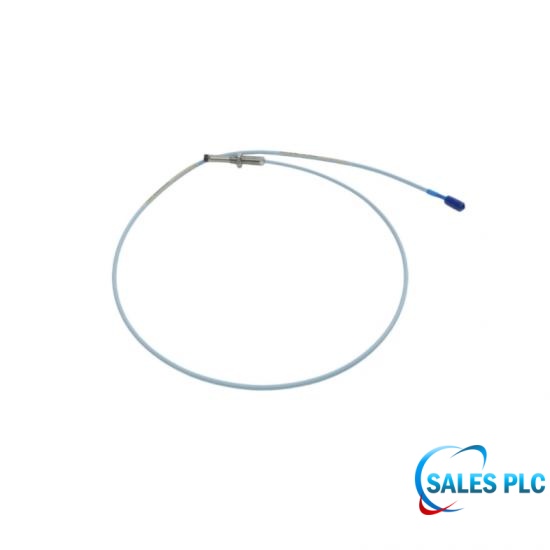

Metric, non-armored 3300 XL 8 mm proximity probe with an M10 x 1 thread, a 80 mm case, a 20 mm unthreaded section, a 1.0 m standard lead and a ClickLoc connector without a connector protector. Probe only; matched system components are selected separately.
Scope note: 330103-02-08-10-02-00 identifies a probe component. Range and sensitivity belong to a complete, correctly matched 3300 XL 8 mm system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Non-armored 3300 XL 8 mm Proximity Probe
The Bently Nevada 330103-02-08-10-02-00 is a non-armored, standard-mount 3300 XL 8 mm proximity probe. The official ordering code specifies an M10 x 1 thread, a 20 mm unthreaded length, a 80 mm overall case length, a 1.0 m integral standard cable, a miniature coaxial ClickLoc connector without a factory-installed connector protector, and no selected agency-approval option.
The standard FEP-insulated cable on 330103-02-08-10-02-00 uses a miniature coaxial ClickLoc connector without a factory-installed connector protector. Connection protection and installation routing must be checked for the application.
330103-02-08-10-02-00 identifies the probe only, not a complete transducer system. The 1.0 m 330103-02-08-10-02-00 probe can connect directly to a matching 1 m 3300 XL Proximitor Sensor without an extension cable, or use a correctly sized extension cable for a matched 5 m or 9 m system. Published range, scale factor and frequency response apply to the complete matched system, not to 330103-02-08-10-02-00 alone.
| Manufacturer | Bently Nevada, a Baker Hughes company |
|---|---|
| Full part number | 330103-02-08-10-02-00 |
| Component scope | Proximity probe only; not a complete transducer system |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Mounting / armor | Standard mount; without armor |
| Probe tip | 8.0 mm (0.31 in); polyphenylene sulfide (PPS) |
| Case / thread | AISI 303 or 304 stainless steel; M10 x 1 |
| Unthreaded / case length | 20 mm / 80 mm |
| Total probe length | 1.0 m (3.3 ft) |
| Cable | 75 ohm triaxial FEP-insulated standard probe cable |
| Connector | Miniature coaxial ClickLoc; no factory-installed connector protector specified |
| Agency option | 00 - agency approval not required; no approval option selected |
| Nominal probe DC resistance | 7.59 ohm +/-0.50 ohm for 1.0 m probe length |
| Probe operating / storage temperature | -52°C to +177°C (-62°F to +350°F); exposure below -34°C may cause premature pressure-seal failure |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Maximum M10 x 1 thread engagement | 15 mm |
| System matching | The 1.0 m 330103-02-08-10-02-00 probe can connect directly to a matching 1 m 3300 XL Proximitor Sensor without an extension cable, or use a correctly sized extension cable for a matched 5 m or 9 m system. |
| Complete-system linear range | 2 mm (80 mils), approximately 0.25 to 2.3 mm; not a probe-alone value |
| Complete-system scale factor | Nominal 7.87 V/mm (200 mV/mil); published tolerance depends on the matched system length and manufacturer test conditions |
| Official document | Baker Hughes 141194 Rev. AM |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
Bently Nevada 330103-02-08-10-02-00 is a non-armored, standard-mount 3300 XL 8 mm proximity probe with an M10 x 1 thread, a 20 mm unthreaded section, a 80 mm case, a 1.0 m integral standard lead and a ClickLoc connector without a factory-installed connector protector.
In 330103-02-08-10-02-00, 330103 identifies the non-armored M10 x 1 probe; 02 and 08 specify 20 mm unthreaded and 80 mm case lengths; 10 specifies a 1.0 m total length; 02 specifies standard cable without a factory-installed connector protector; and 00 means no agency-approval option was selected.
No. 330103-02-08-10-02-00 identifies the probe only. A complete 3300 XL 8 mm transducer system using 330103-02-08-10-02-00 also requires the correctly matched 3300 XL Proximitor Sensor and, when required by total system length, an extension cable.
The 1.0 m 330103-02-08-10-02-00 probe can connect directly to a matching 1 m 3300 XL Proximitor Sensor without an extension cable, or use a correctly sized extension cable for a matched 5 m or 9 m system.
A complete 3300 XL 8 mm system configured with 330103-02-08-10-02-00 can measure static position and dynamic vibration relative to a conductive target; manufacturer-listed uses for a system using 330103-02-08-10-02-00 include fluid-film bearing machinery, Keyphasor reference and speed measurement.
Under the manufacturer’s stated conditions, a complete 3300 XL 8 mm system using 330103-02-08-10-02-00 has a 2 mm linear range and a nominal 7.87 V/mm (200 mV/mil) incremental scale factor. These values apply to the complete matched system using 330103-02-08-10-02-00, not to 330103-02-08-10-02-00 as a probe alone.
The standard probe-family operating and storage range applicable to 330103-02-08-10-02-00 is -52°C to +177°C (-62°F to +350°F). Baker Hughes separately warns that exposure of 330103-02-08-10-02-00 below -34°C (-30°F) may cause premature pressure-seal failure.
The final -00 on 330103-02-08-10-02-00 means that an agency-approval option was not required for the ordered configuration. 330103-02-08-10-02-00 must not be presented as the -05 CSA/ATEX/IECEx approval option.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
