330103-06-15-05-02-05 Bently Nevada 8 mm Proximity Probe
330103-06-15-05-02-05
Non-armored 3300 XL 8 mm probe · M10 x 1 · 60 mm unthreaded · 150 mm case · 0.5 m standard cable · ClickLoc · -05 approval option
Scope note: 330103-06-15-05-02-05 identifies the probe component. Complete-system performance requires a correctly matched extension cable and 3300 XL Proximitor Sensor.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Non-armored 3300 XL 8 mm M10 x 1 Proximity Probe

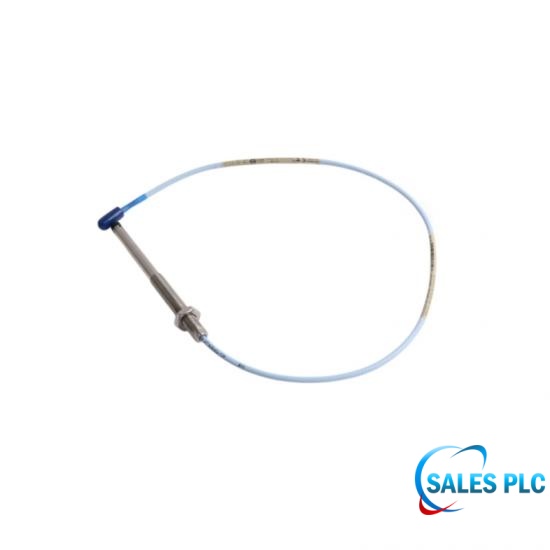

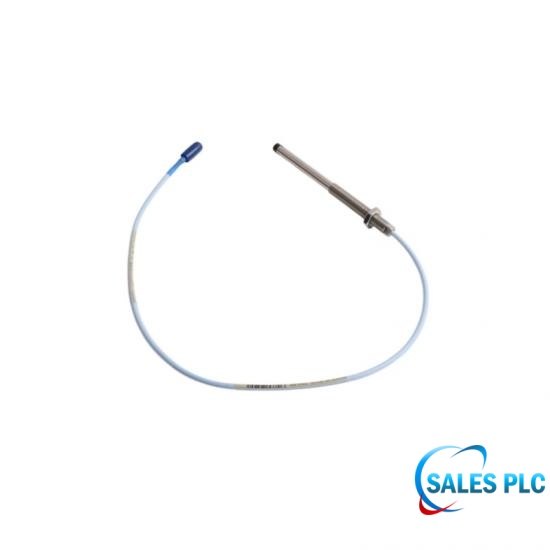

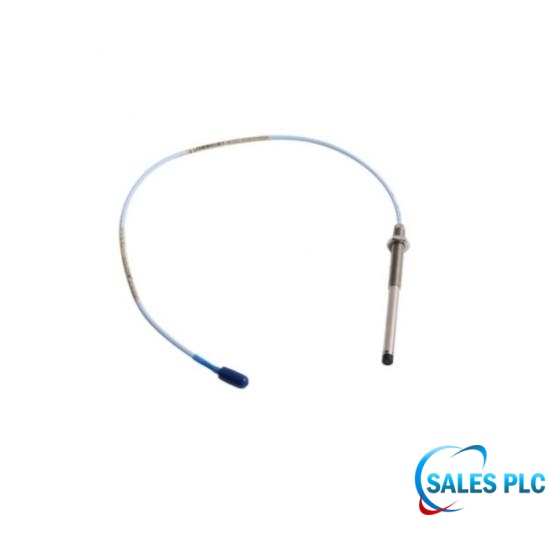

The Bently Nevada 330103-06-15-05-02-05 is a non-armored, standard-mount probe in the 3300 XL 8 mm eddy-current proximity transducer family. Its official ordering code specifies an M10 x 1 thread, a 60 mm unthreaded length, a 150 mm overall case length, a 0.5 m integral standard cable, a miniature coaxial ClickLoc connector and the CSA/ATEX/IECEx agency-approval option.
This catalog number identifies the probe component, not a complete transducer system. When combined with the correctly sized 3300 XL extension cable and matching Proximitor Sensor, the complete system produces a voltage proportional to the distance between the probe tip and a conductive target and can measure static position and dynamic vibration.
Before replacement, confirm the full part number, M10 x 1 mounting geometry, total electrical system length, target material and current approval requirements. Published range, scale factor and frequency response apply to the complete matched system rather than to the probe alone.
| Manufacturer | Bently Nevada, a Baker Hughes company |
|---|---|
| Full part number | 330103-06-15-05-02-05 |
| Component scope | Proximity probe only; not a complete transducer system |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Mounting / armor | Standard mount; without armor |
| Probe tip | 8.0 mm (0.31 in); polyphenylene sulfide (PPS) |
| Case / thread | AISI 303 or 304 stainless steel; M10 x 1 |
| Unthreaded / case length | 60 mm / 150 mm |
| Total probe length | 0.5 m (1.6 ft) |
| Cable | 75 ohm triaxial, FEP-insulated standard probe cable |
| Connector | Miniature coaxial ClickLoc; option 02 does not specify a factory-installed connector protector |
| Agency option | CSA, ATEX and IECEx option; verify current certificate and installation applicability |
| Nominal probe DC resistance | 7.45 ohm +/-0.50 ohm for 0.5 m probe length |
| Probe operating / storage temperature | -52°C to +177°C (-62°F to +350°F); exposure below -34°C may cause premature pressure-seal failure |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Maximum M10 x 1 thread engagement | 15 mm |
| Complete-system linear range | 2 mm (80 mils), approximately 0.25 to 2.3 mm; not a probe-alone value |
| Complete-system scale factor | Nominal 7.87 V/mm (200 mV/mil); tolerance depends on matched system length and test conditions |
| Official document | Baker Hughes 141194 Rev. AM |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
Bently Nevada 330103-06-15-05-02-05 is a non-armored, standard-mount 3300 XL 8 mm proximity probe with an M10 x 1 thread, a 60 mm unthreaded section, a 150 mm case, and a 0.5 m integral lead.
In 330103-06-15-05-02-05, 330103 identifies the non-armored M10 x 1 probe; 06 and 15 specify 60 mm unthreaded and 150 mm case lengths; 05 specifies a 0.5 m total length; 02 specifies a standard cable with a ClickLoc connector; and the final 05 selects the CSA, ATEX and IECEx approval option.
No. 330103-06-15-05-02-05 identifies the probe only. A complete 3300 XL 8 mm transducer system also requires the correctly matched 3300 XL Proximitor Sensor and extension cable.
The 0.5 m 330103-06-15-05-02-05 probe must be combined with an extension cable so that the probe and extension-cable lengths equal the selected 5 m or 9 m 3300 XL Proximitor system length; the exact companion part numbers must be verified before ordering.
A complete 3300 XL 8 mm system configured with 330103-06-15-05-02-05 can measure static position and dynamic vibration relative to a conductive target; manufacturer-listed uses include fluid-film bearing machinery, Keyphasor reference and speed measurement.
Under the manufacturer’s stated test conditions, a complete 3300 XL 8 mm system using 330103-06-15-05-02-05 has a 2 mm linear range and a nominal 7.87 V/mm (200 mV/mil) incremental scale factor. Tolerance depends on the matched system length; these are complete-system specifications, not probe-alone output values.
The standard probe-family operating and storage range applicable to 330103-06-15-05-02-05 is -52°C to +177°C (-62°F to +350°F). Baker Hughes separately warns that exposure below -34°C (-30°F) may cause premature pressure-seal failure.
No. The final -05 in 330103-06-15-05-02-05 selects the CSA, ATEX and IECEx approval option, but current certificates, entity parameters, safe-use conditions and destination-country applicability must be checked for the complete installation.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
