330103-06-15-10-12-00 Bently Nevada 8 mm Proximity Probe
330103-06-15-10-12-00
Non-armored 3300 XL 8 mm probe · M10 x 1 · 60 mm unthreaded · 150 mm case · 1.0 m FluidLoc cable · ClickLoc · approval option 00
Scope note: 330103-06-15-10-12-00 identifies a probe component. Range and sensitivity belong to a complete, correctly matched 3300 XL 8 mm system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Non-armored 3300 XL 8 mm FluidLoc Proximity Probe

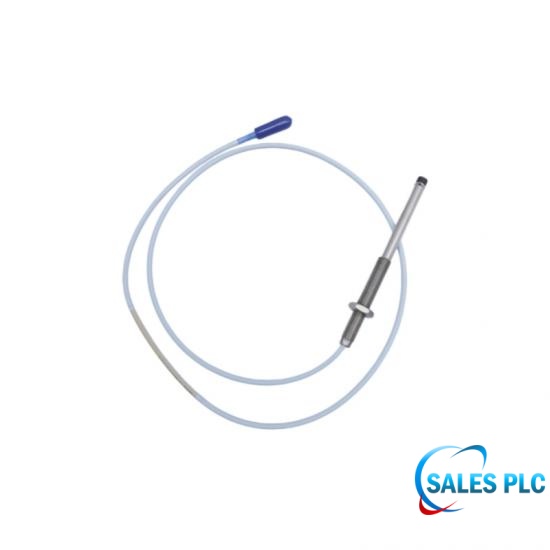

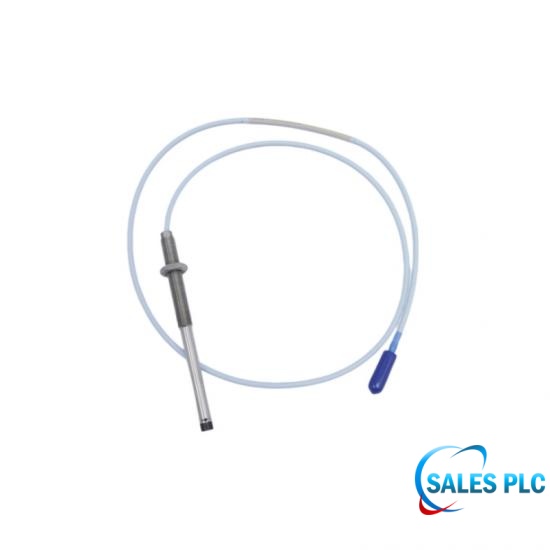

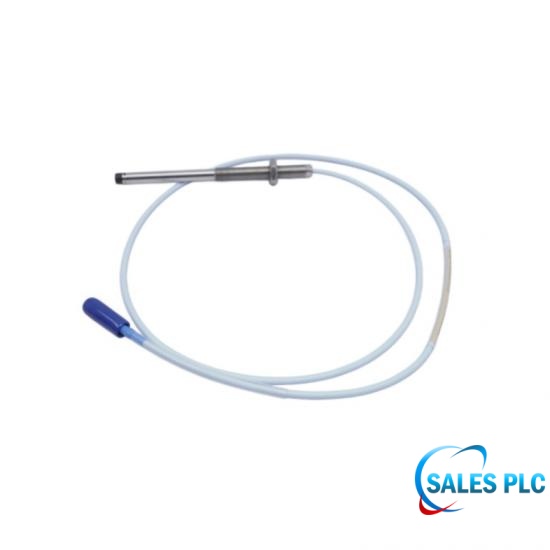

The Bently Nevada 330103-06-15-10-12-00 is a non-armored, standard-mount 3300 XL 8 mm proximity probe. Its official ordering code specifies an M10 x 1 thread, a 60 mm unthreaded length, a 150 mm overall case length, a 1.0 m integral FluidLoc cable, a miniature coaxial ClickLoc connector and no selected agency-approval option.
The FluidLoc cable option is intended to prevent oil and other liquids from leaking out of the machine through the cable interior. Connector option 12 does not specify a factory-installed connector protector. Environmental protection for each connection should therefore be evaluated separately for the installation.
This part number covers the probe only. It may connect directly to the matching 1 m 3300 XL Proximitor Sensor without an extension cable, or form part of a correctly matched 5 m or 9 m system. Complete-system performance must not be presented as probe-alone output.
| Manufacturer | Bently Nevada, a Baker Hughes company |
|---|---|
| Full part number | 330103-06-15-10-12-00 |
| Component scope | Proximity probe only; not a complete transducer system |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Mounting / armor | Standard mount; without armor |
| Probe tip | 8.0 mm (0.31 in); polyphenylene sulfide (PPS) |
| Case / thread | AISI 303 or 304 stainless steel; M10 x 1 |
| Unthreaded / case length | 60 mm / 150 mm |
| Total probe length | 1.0 m (3.3 ft) |
| Cable | 75 ohm triaxial FluidLoc probe cable |
| Connector | Miniature coaxial ClickLoc; option 12 does not specify a factory-installed connector protector |
| Agency option | 00 - agency approval not required; do not present as the -05 approval option |
| Nominal probe DC resistance | 7.59 ohm +/-0.50 ohm for 1.0 m probe length |
| Probe operating / storage temperature | -52°C to +177°C (-62°F to +350°F); exposure below -34°C may cause premature pressure-seal failure |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Maximum M10 x 1 thread engagement | 15 mm |
| System matching | A 1 m system uses no extension cable; 5 m and 9 m configurations require the probe plus extension cable to equal the Proximitor system length |
| Complete-system linear range | 2 mm (80 mils), approximately 0.25 to 2.3 mm; not a probe-alone value |
| Complete-system scale factor | 7.87 V/mm (200 mV/mil) +/-5% for a standard 1 m system under stated manufacturer conditions |
| Official document | Baker Hughes 141194 Rev. AM |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
Bently Nevada 330103-06-15-10-12-00 is a non-armored, standard-mount 3300 XL 8 mm proximity probe with an M10 x 1 thread, a 60 mm unthreaded section, a 150 mm case, a 1.0 m integral lead, and FluidLoc cable.
In 330103-06-15-10-12-00, 330103 identifies the non-armored M10 x 1 probe; 06 and 15 specify 60 mm unthreaded and 150 mm case lengths; 10 specifies a 1.0 m total length; 12 specifies FluidLoc cable with a ClickLoc connector; and the final 00 means no agency-approval option was selected.
No. 330103-06-15-10-12-00 is the probe component. A complete 3300 XL 8 mm system requires a compatible 3300 XL Proximitor Sensor and, when the selected system length exceeds 1 m, the correctly sized extension cable.
The 1.0 m 330103-06-15-10-12-00 probe can connect directly to a matching 1 m 3300 XL Proximitor Sensor without an extension cable, or be combined with a correctly sized extension cable for a matched 5 m or 9 m system.
The FluidLoc cable selected by option 12 on 330103-06-15-10-12-00 is designed to prevent oil and other liquids from leaking out of a machine through the cable interior. Option 12 does not specify a factory-installed connector protector.
Under the manufacturer’s stated conditions, a complete standard 1 m 3300 XL 8 mm system using 330103-06-15-10-12-00 has a 2 mm linear range and a 7.87 V/mm (200 mV/mil) incremental scale factor with the published system tolerance. These are complete-system specifications, not probe-alone values.
The standard probe-family operating and storage range applicable to 330103-06-15-10-12-00 is -52°C to +177°C (-62°F to +350°F). Exposure below -34°C (-30°F) may cause premature pressure-seal failure.
The final -00 on 330103-06-15-10-12-00 means that an agency-approval option was not required for the ordered configuration. It must not be presented as the -05 CSA/ATEX/IECEx approval option.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
