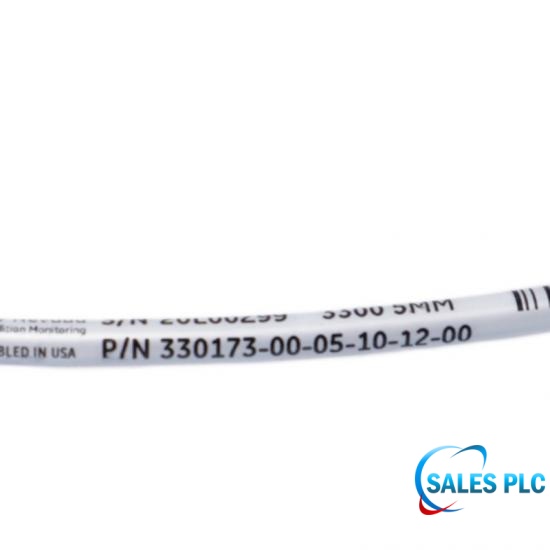

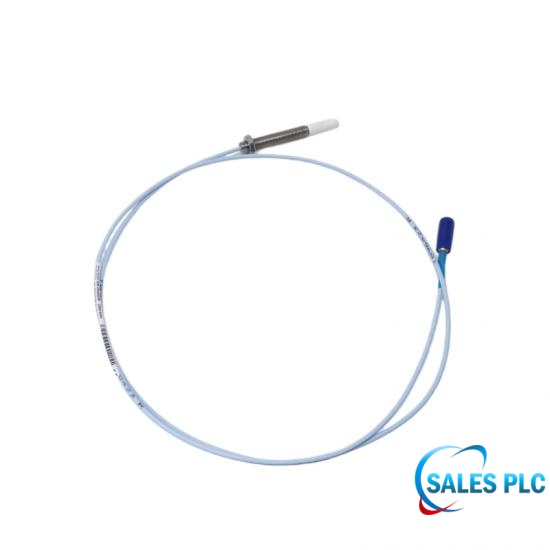

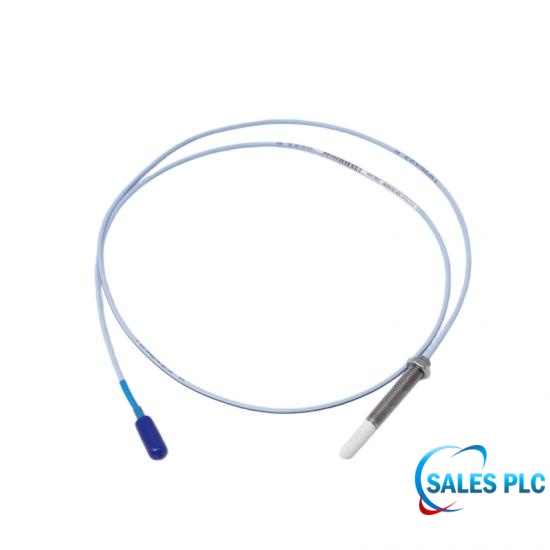

330173-00-05-10-12-00 Bently Nevada 5 mm Proximity Probe
330173-00-05-10-12-00
330173-00-05-10-12-00 is a historical Bently Nevada 3300 5 mm proximity probe with an M8x1 thread, no armor, 0 mm unthreaded length, 50 mm overall case length, a 1.0 m integral lead, and FluidLoc cable with ClickLoc connector; no connector protector. 330173-00-05-10-12-00 is the probe component only. The final 00 approval field is retained for historical identification, but current Baker Hughes guide 108M1756 Rev. AV does not list 00 as available for new 330173 orders. Match 330173-00-05-10-12-00 with the required extension cable and Proximitor Sensor.
Scope note: 330173-00-05-10-12-00 is the probe only and does not include an extension cable or Proximitor Sensor. Published range, sensitivity and frequency response belong to a correctly matched complete 3300 5 mm system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Officially decoded historical probe configuration with current-orderability and complete-system boundaries clearly stated.
330173-00-05-10-12-00 decodes in Baker Hughes datasheet 172036 Rev. T as M8x1, without armor, 0 mm unthreaded length, 50 mm overall case length, a 1.0 m lead, and FluidLoc cable with ClickLoc connector; no connector protector.
330173-00-05-10-12-00 retains the historical final 00 field for identification. Current Baker Hughes guide 108M1756 Rev. AV marks 00 unavailable for new 330173 orders, so replacement and certification must be checked from the installed nameplate and current ordering guide.
330173-00-05-10-12-00 is the probe only and does not include an extension cable or Proximitor Sensor. Published range, sensitivity and frequency response belong to a correctly matched complete 3300 5 mm system.
| Model / part number | 330173-00-05-10-12-00 |
|---|---|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Component type | Historical 3300 5 mm proximity probe component |
| Thread | M8x1 |
| Armor | None |
| Probe tip | 5.2 mm diameter; PPS |
| Case | AISI 303/304 stainless steel |
| Unthreaded length | 0 mm |
| Overall case length | 50 mm |
| Integral lead | 1.0 m |
| Cable / connector | FluidLoc cable with ClickLoc connector; no connector protector |
| Probe cable | 75 ohm triaxial, FEP insulated; 2.8 mm maximum outside diameter |
| Minimum bend radius | 25.4 mm |
| Operating / storage temperature | -35 deg C to +177 deg C; exposure below -34 deg C may prematurely damage the pressure seal |
| Tensile strength | 222 N case-to-lead and 222 N lead-to-extension-connector |
| Recommended / maximum case torque | 5.1 N m / 7.3 N m |
| Maximum thread engagement | 12 mm |
| Nominal probe dc resistance | 7.59 +/- 0.50 ohm at 1.0 m |
| Historical approval field | 00; retained for identification, not currently available for new 330173 orders in 108M1756 Rev. AV |
| Official source | Baker Hughes 172036 Rev. T and 108M1756 Rev. AV |
| Complete-system System composition | A complete matched 3300 5 mm system containing 330173-00-05-10-12-00 uses the probe, the required 3300 XL extension cable, and a compatible 3300 XL Proximitor Sensor. |
| Complete-system Linear range | For a complete matched 3300 5 mm system containing 330173-00-05-10-12-00: 2 mm (80 mil), not a probe-alone rating. |
| Complete-system Incremental scale factor | For a complete matched 3300 5 mm system containing 330173-00-05-10-12-00: nominal 7.87 V/mm (200 mV/mil), not a probe-alone rating. |
| Complete-system Frequency response | For a complete matched 3300 5 mm system containing 330173-00-05-10-12-00: 0 to 10 kHz under the datasheet conditions, not a probe-alone rating. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330173-00-05-10-12-00 is a historical Bently Nevada 3300 5 mm M8x1 proximity-probe configuration and is one component of a matched transducer system.
330173-00-05-10-12-00 uses an M8x1 case thread, no armor, and the official 5.2 mm PPS probe tip.
330173-00-05-10-12-00 specifies 0 mm unthreaded length and 50 mm overall case length.
330173-00-05-10-12-00 specifies a 1.0 m integral lead with FluidLoc cable with ClickLoc connector; no connector protector.
330173-00-05-10-12-00 carries the historical 00 no-approval order field; the current 108M1756 Rev. AV guide marks 00 unavailable for new 330173 orders, so 330173-00-05-10-12-00 must not be presented as a currently orderable factory configuration.
A complete system around 330173-00-05-10-12-00 requires the correctly length-matched 3300 XL extension cable when applicable and a compatible 3300 XL Proximitor Sensor.
No. 330173-00-05-10-12-00 is the probe component; the 2 mm range and 7.87 V/mm scale factor apply only to a correctly matched complete 3300 5 mm system containing 330173-00-05-10-12-00.
330173-00-05-10-12-00 uses the official 3300 5 mm probe range of -35 deg C to +177 deg C, a 25.4 mm minimum cable bend radius, and the manufacturer warning that exposure below -34 deg C may prematurely damage the pressure seal.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
