330706-005-046-10-02-05 Bently Nevada XL 11 mm Probe
330706-005-046-10-02-05

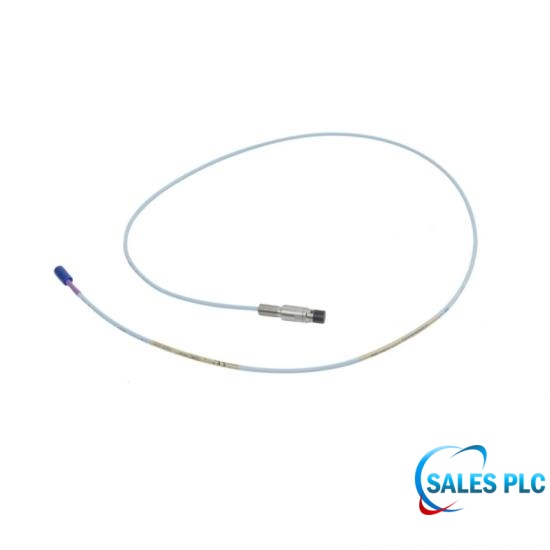

330706-005-046-10-02-05 is a Bently Nevada 3300 XL 11 mm reverse-mount proximity probe component with M10 x 1 thread, a 1.0 m integral cable, and miniature ClickLoc connector.
Scope note: These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 181501176853300 XL 11 mm reverse-mount proximity probe component
330706-005-046-10-02-05 is the reverse-mount probe component identified by the Baker Hughes 146256 ordering code. It uses M10 x 1 threads, the 005-046 fixed geometry code (5 mm unthreaded; 46 mm overall case length), and a 1.0 m total probe length. 330706-005-046-10-02-05 is not available with armor, FluidLoc cable, or a connector protector, and it is not a complete measurement system.
Use with a 4.0 m 330730 extension cable and a 5.0 m 330780 Proximitor Sensor, or with an 8.0 m extension cable and a 9.0 m Proximitor Sensor.
These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
| Product type | 3300 XL 11 mm reverse-mount proximity probe component |
|---|---|

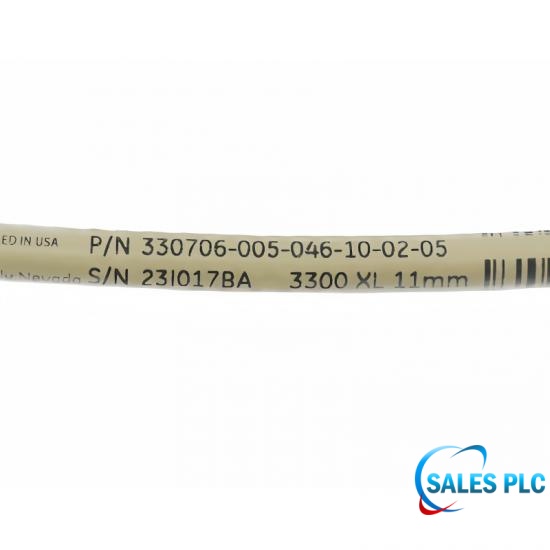

| Order number | 330706-005-046-10-02-05 |
| Mounting style | Reverse mount |
| Case thread | M10 x 1 |
| Fixed geometry | 005-046 fixed geometry code (5 mm unthreaded; 46 mm overall case length) |
| Integral cable length | 1.0 m |
| Connector option | 02 - Miniature ClickLoc coaxial connector |
| Agency approval option | 05 - Multiple approvals option |
| Armor / FluidLoc / protector | Not available for reverse-mount probes |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Probe cable | 75 ohm triaxial, FEP insulated |
| Probe case torque | 7.5 N m recommended; 22.6 N m maximum rated |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Complete-system Linear range | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 4.0 mm (160 mils), approximately 0.5 to 4.5 mm from target and -1 to -17 Vdc output |
| Complete-system Recommended gap | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 2.5 mm (100 mils) |
| Complete-system Incremental scale factor | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 3.94 V/mm (100 mV/mil), +/-10% including interchangeability error |
| Complete-system Standard DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Less than +/-0.10 mm (+/-4 mils) |
| Complete-system Extended DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Approximately 0.5 to 5.0 mm; less than +/-0.15 mm (+/-6 mils); not applicable with zener barriers |
| Complete-system Frequency response | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 0 to 8 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330706-005-046-10-02-05 is a Bently Nevada 3300 XL 11 mm reverse-mount proximity probe component; 330706-005-046-10-02-05 is not a complete transducer system.
330706-005-046-10-02-05 uses M10 x 1 threads in the official reverse-mount configuration.
330706-005-046-10-02-05 uses the 005-046 fixed geometry code (5 mm unthreaded; 46 mm overall case length).
330706-005-046-10-02-05 has a 1.0 m total probe length according to option 10.
330706-005-046-10-02-05 uses option 02, the miniature ClickLoc coaxial connector.
No. Baker Hughes states that reverse-mount probe 330706-005-046-10-02-05 is not available with armor, FluidLoc cable, or connector protector options.
330706-005-046-10-02-05 must be matched by total electrical length. Use with a 4.0 m 330730 extension cable and a 5.0 m 330780 Proximitor Sensor, or with an 8.0 m extension cable and a 9.0 m Proximitor Sensor.
No. For 330706-005-046-10-02-05, the 4.0 mm linear range and 3.94 V/mm scale factor apply only to a complete, correctly matched 3300 XL 11 mm transducer system.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
