330709-000-050-10-02-05 Bently Nevada XL 11 mm Probe
330709-000-050-10-02-05

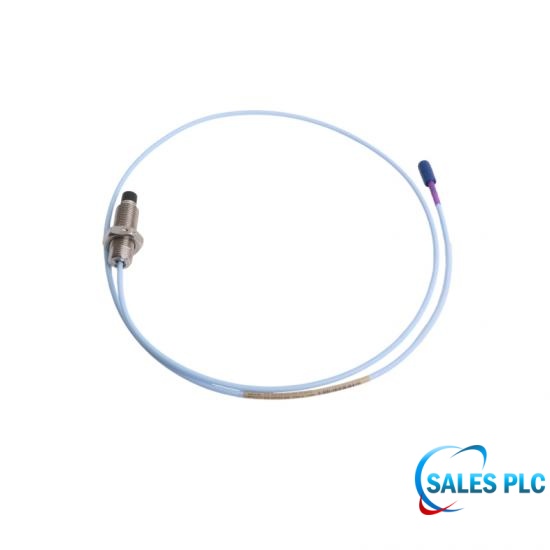

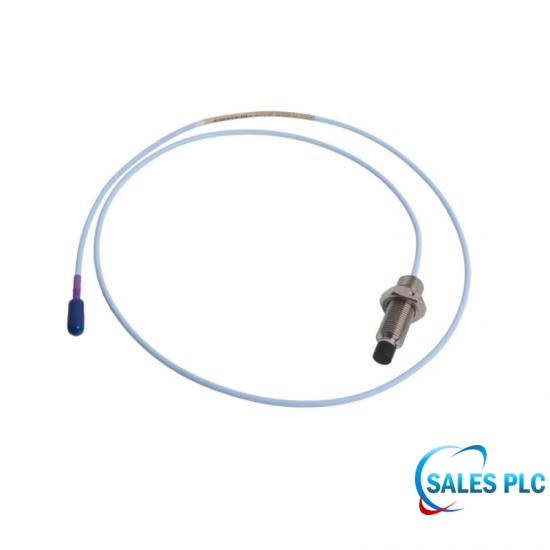

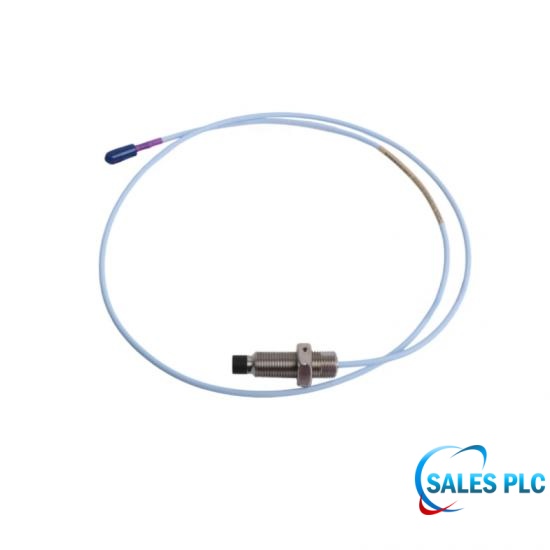

330709-000-050-10-02-05 is a Bently Nevada 3300 XL 11 mm standard-mount proximity probe component with M16 x 1.5 thread, without armor and with the standard FEP jacket, and a 1.0 m integral cable.
Scope note: These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 181501176853300 XL 11 mm standard-mount proximity probe component
330709-000-050-10-02-05 is the probe component identified by the Baker Hughes 146256 ordering code. Its code specifies M16 x 1.5 case thread, 0 mm unthreaded length, 50 mm overall case length, 1.0 m total probe length, and miniature coaxial ClickLoc connector; standard cable. 330709-000-050-10-02-05 is not a complete measurement system; pair it only with length-compatible 3300 XL 11 mm components.
Use with a 4.0 m 330730 extension cable and a 5.0 m 330780 Proximitor Sensor, or with an 8.0 m extension cable and a 9.0 m Proximitor Sensor.
These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
| Product type | 3300 XL 11 mm standard-mount proximity probe component |
|---|---|
| Order number | 330709-000-050-10-02-05 |
| Case thread | M16 x 1.5 |
| Armor | Without armor; FEP jacket is standard |
| Unthreaded length | 0 mm |
| Overall case length | 50 mm |
| Integral cable length | 1.0 m |
| Connector and cable option | 02 - Miniature coaxial ClickLoc connector; standard cable |
| Agency approval option | 05 - Multiple approvals option |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Probe cable | 75 ohm triaxial, FEP insulated |
| Connector material | Gold-plated brass |
| Probe case torque | 21.1 N m recommended; 63.3 N m maximum rated |
| Minimum bend radius | 25.4 mm (1.0 in), with or without SST armor |
| Complete-system Linear range | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 4.0 mm (160 mils), approximately 0.5 to 4.5 mm from target and -1 to -17 Vdc output |
| Complete-system Recommended gap | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 2.5 mm (100 mils) |
| Complete-system Incremental scale factor | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 3.94 V/mm (100 mV/mil), +/-10% including interchangeability error |
| Complete-system Standard DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Less than +/-0.10 mm (+/-4 mils) |
| Complete-system Extended DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Approximately 0.5 to 5.0 mm; less than +/-0.15 mm (+/-6 mils); not applicable with zener barriers |
| Complete-system Frequency response | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 0 to 8 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330709-000-050-10-02-05 is a Bently Nevada 3300 XL 11 mm standard-mount proximity probe component; 330709-000-050-10-02-05 is not a complete transducer system.
330709-000-050-10-02-05 uses a M16 x 1.5 case thread and is supplied without armor and with the standard FEP jacket.
330709-000-050-10-02-05 encodes an unthreaded length of 0 mm and an overall case length of 50 mm.
330709-000-050-10-02-05 has a 1.0 m total probe length according to option 10.
330709-000-050-10-02-05 uses option 02: miniature coaxial ClickLoc connector; standard cable.
330709-000-050-10-02-05 uses option 05 - Multiple approvals option; actual installed approval markings must be verified on the delivered 330709-000-050-10-02-05 nameplate.
330709-000-050-10-02-05 must be matched by total electrical length. Use with a 4.0 m 330730 extension cable and a 5.0 m 330780 Proximitor Sensor, or with an 8.0 m extension cable and a 9.0 m Proximitor Sensor.
No. For 330709-000-050-10-02-05, the 4.0 mm linear range and 3.94 V/mm scale factor apply only to a complete, correctly matched 3300 XL 11 mm probe, extension cable when required, and 330780 Proximitor Sensor system.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
